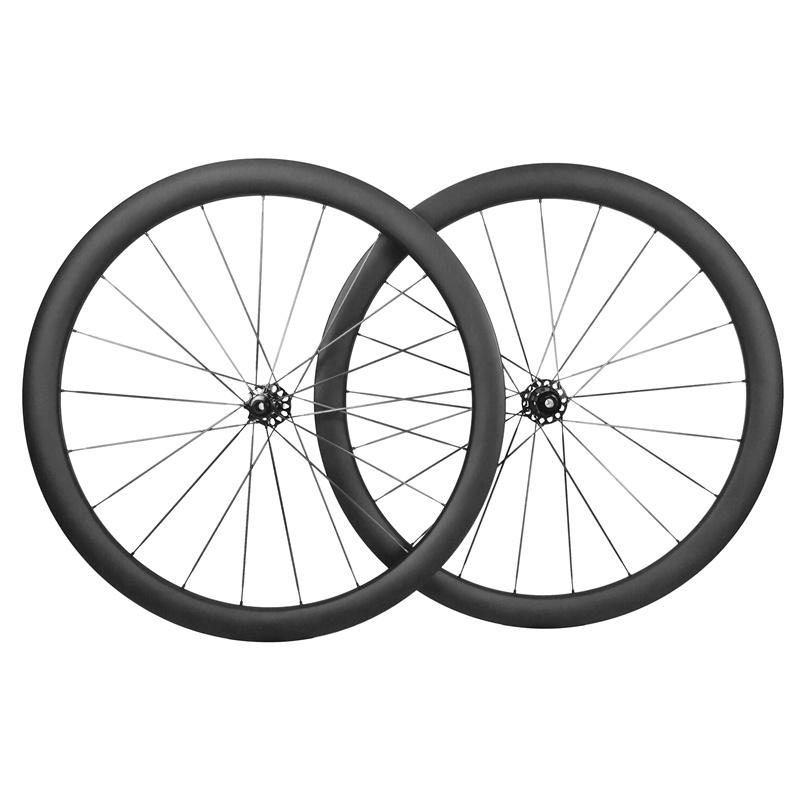

ProX Super Light Carbon Spoke Wheels 61DB Disc Brake Road Wheels Carbon Spoke

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight carbon fiber bike rims.

Light Weight

By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created.

Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement.

So, light weight is achieved without compromise in strength or stiffness.

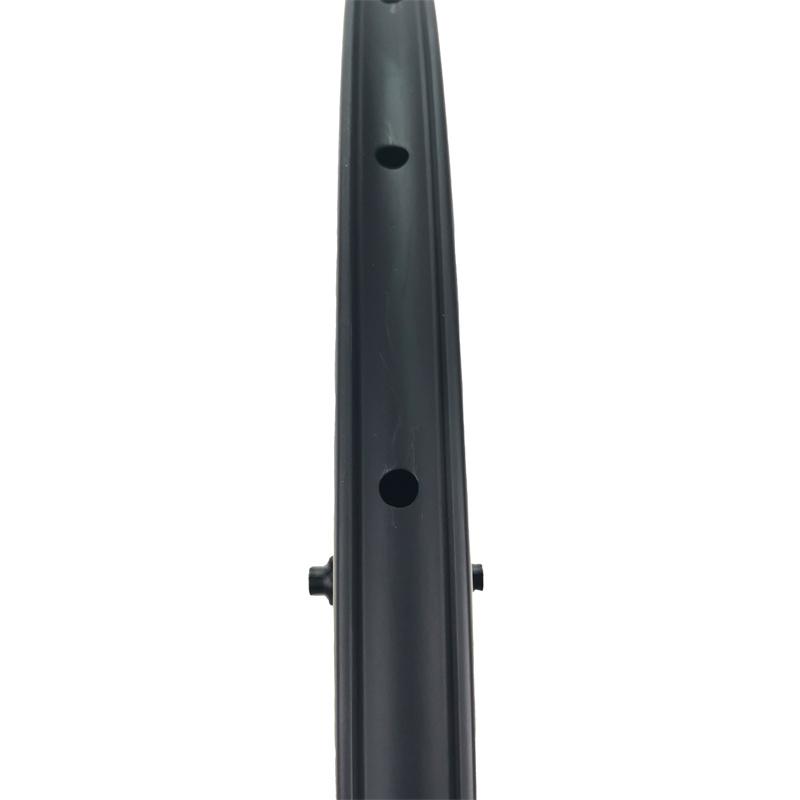

Narrow Inner Width

Relatively narrow 18mm/21mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x25C and 700x28C are recommended (also fit other wider tires).

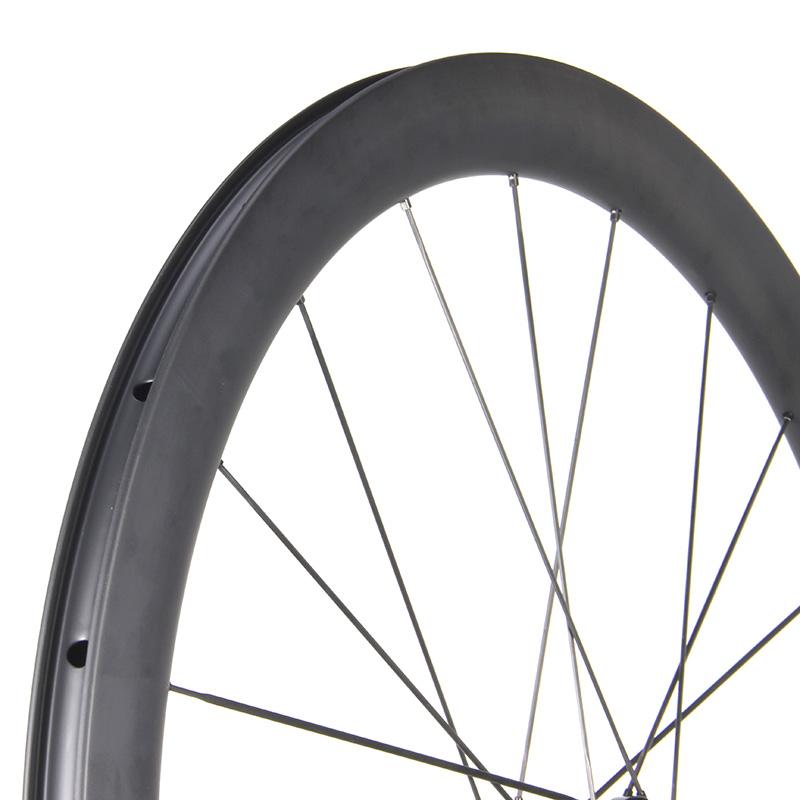

Aero U Shape

Wide U Shape carbon road rims are more aerodynamic than traditional V Shape carbon road rims.

It is also of better stiffness and strength.

Tubeless Ready

Tubeless tire is getting popular in road bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Road Disc Brake

Road disc brake provides more sensitive and precise braking performance than rim brake.

Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

Hand Built

All our bicycle carbon wheels are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

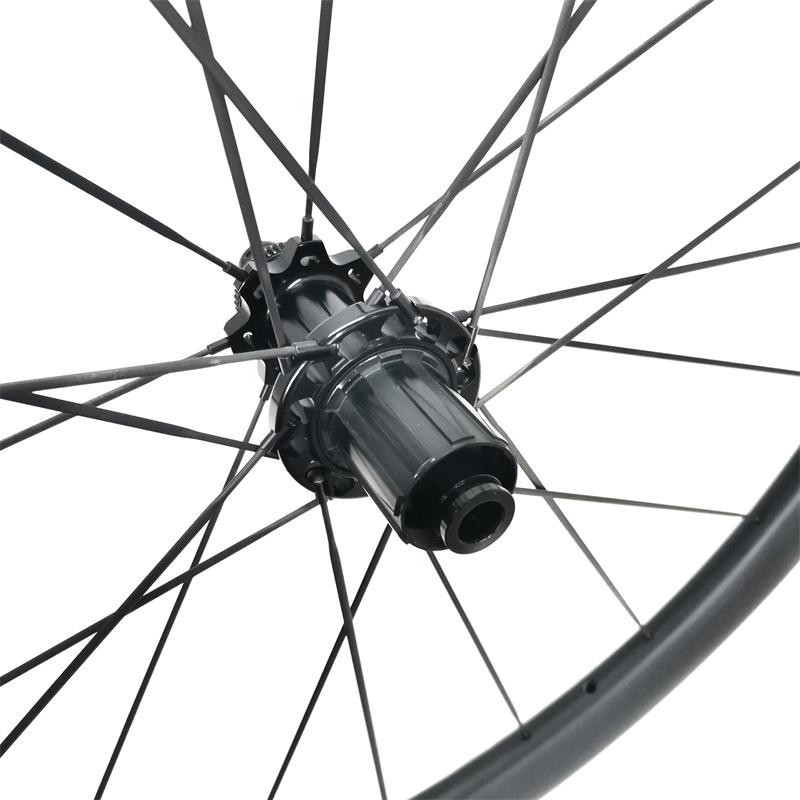

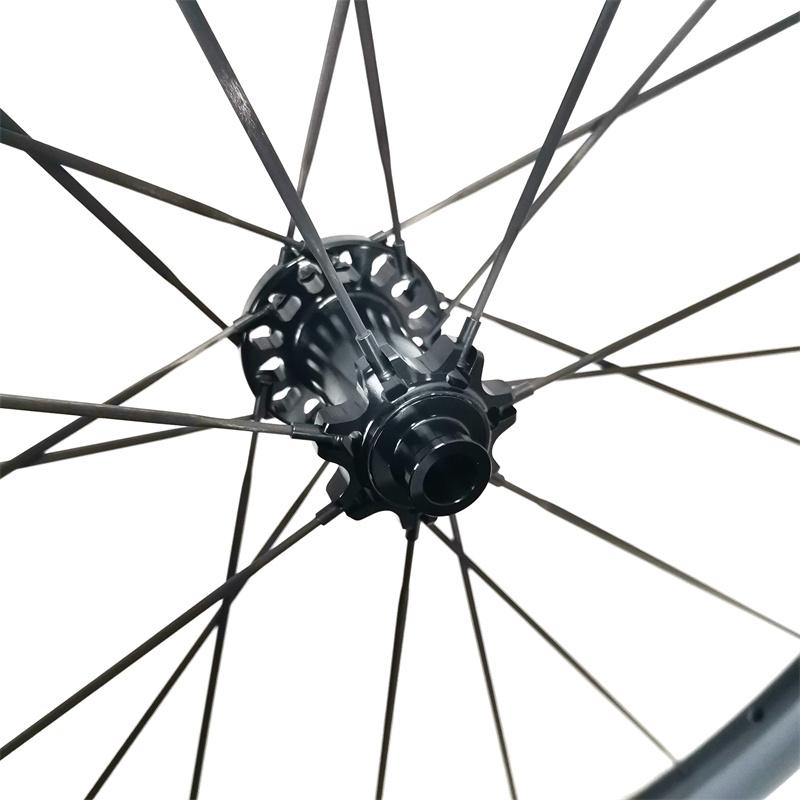

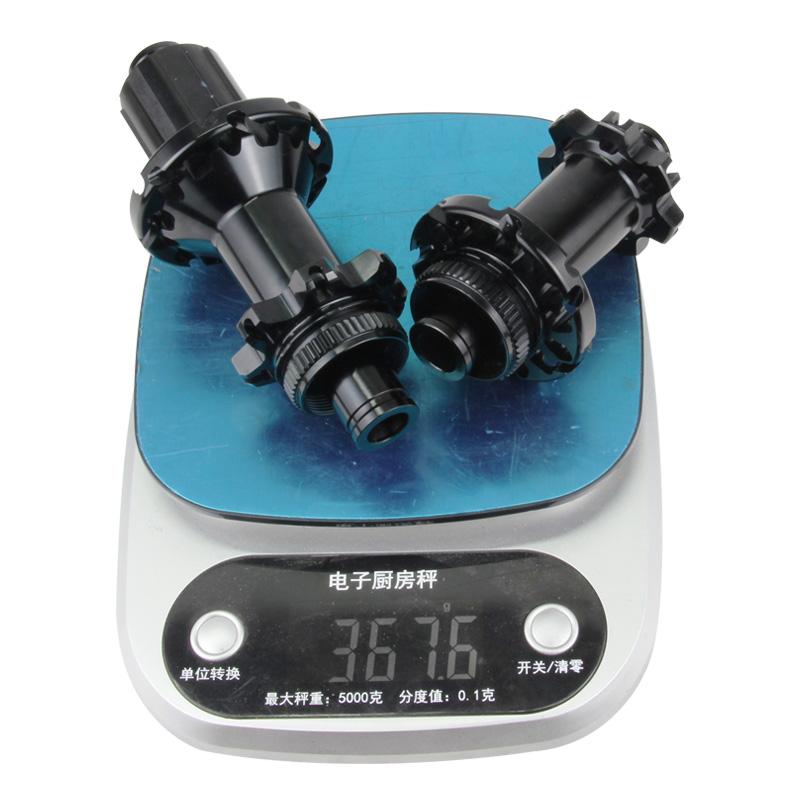

ProX 61DB Disc Hubs

ProX own mould 61DB road hubs are used. High quality hubs with cheap price.

61DB road disc brake hubs are designed with 3-pawl freehub system with steel bearings.

Such hubs can also be etched with your customized logo.

12*100/12*142 thru-axle, with Shimano 11/12 speed or SRAM XDR 12 speed cassette body.

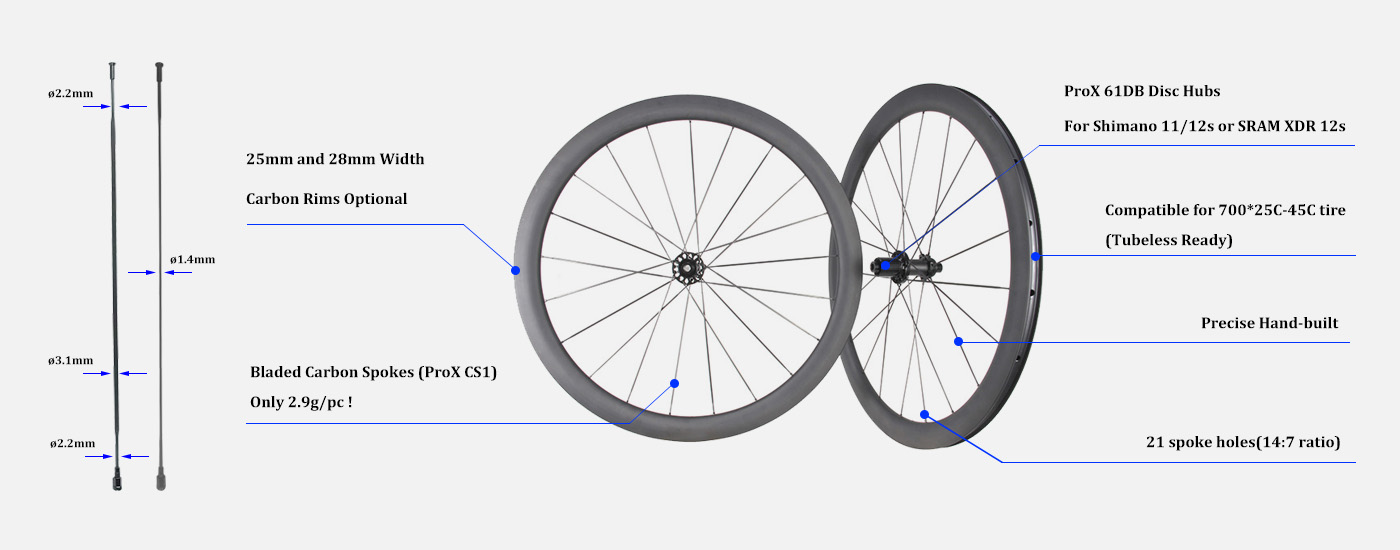

ProX CS1 Carbon Spokes

The customized ProX CS1 carbon spokes are used.

The carbon spoke provides both higher stiffness and better fatigue life compared to the traditional steel spokes.

Perfect bladed aero shape, high elasticity and low drag coefficient.

2-Year Warranty

We have strict production management system, QC and testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years' quality warranty is offered(starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
