• 25mm and 28mm width tubular rims optional
• High cost performance DT Swiss 350s rim-brake hub
• Shimano/Sram 11-12 speed freehub available
• Pillar 1423 spokes, aero and strong
• Compatible for 700*23C-35C tubular tire
Item NO.:
350S Tubular WheelsPayment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD/3K/12K(Customized Decal Acceptable)

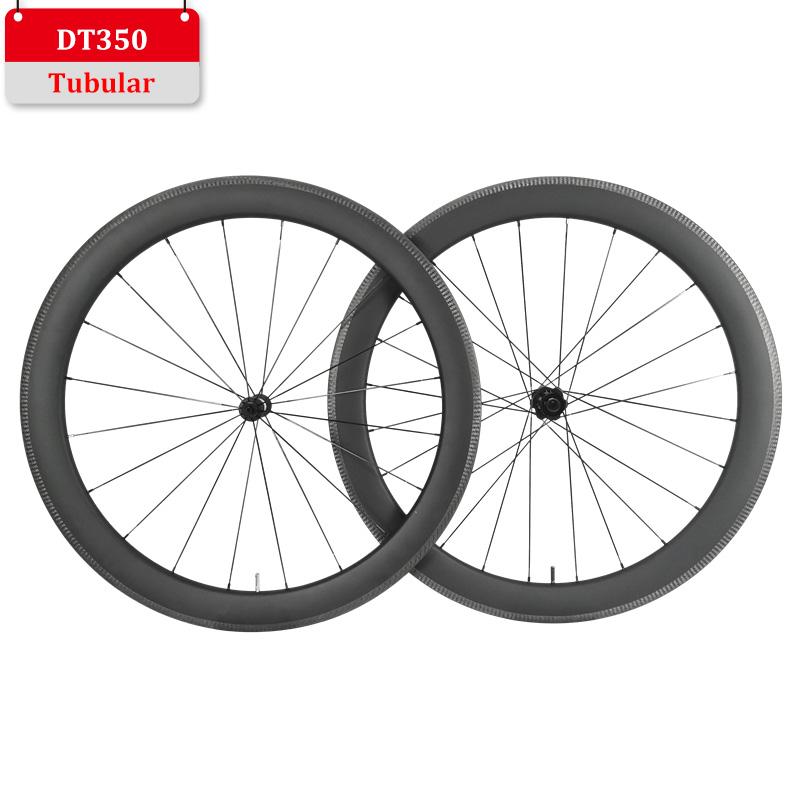

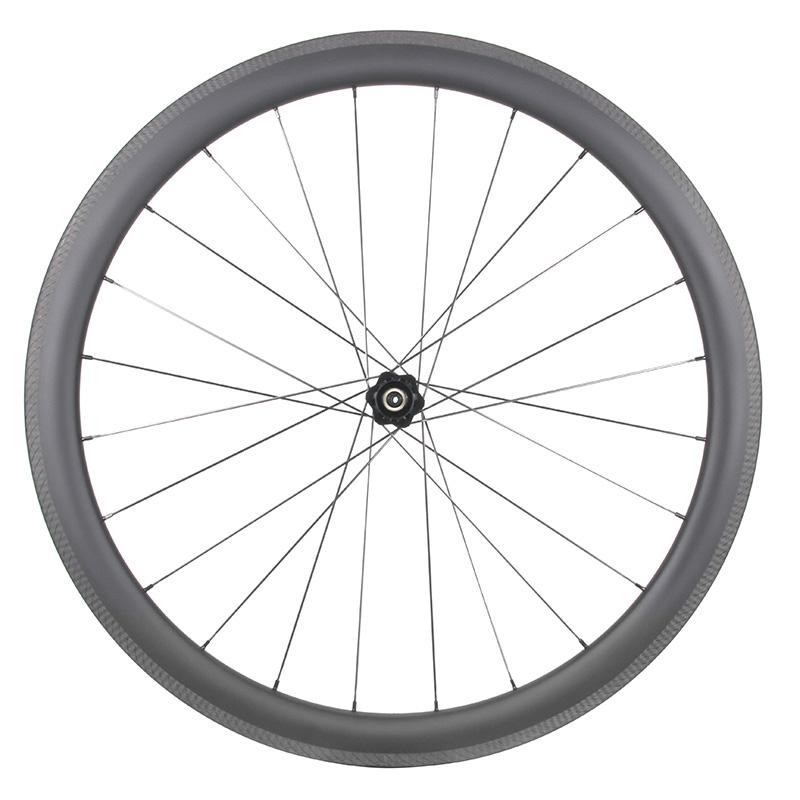

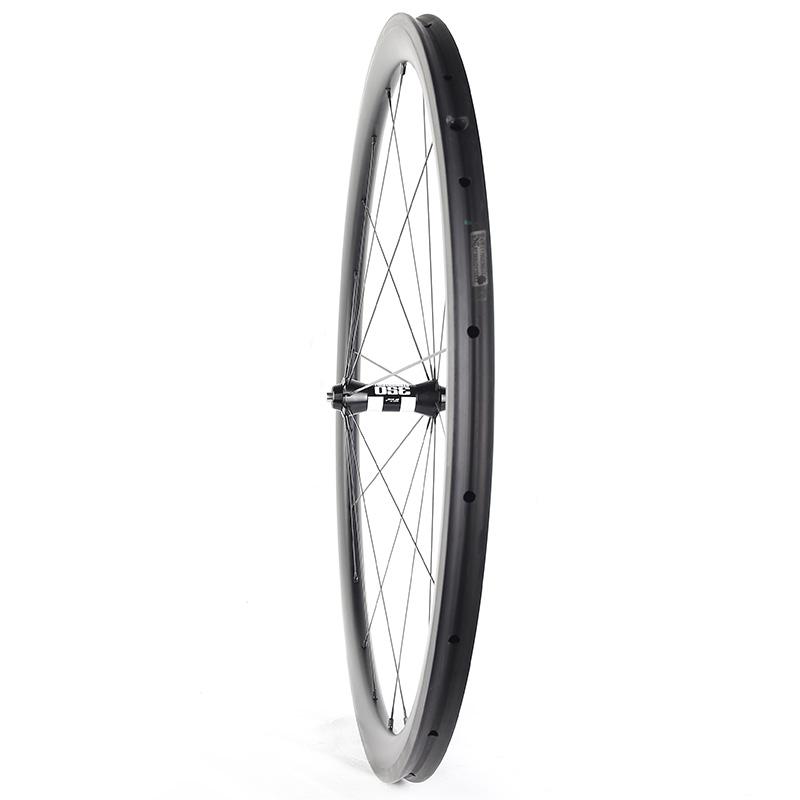

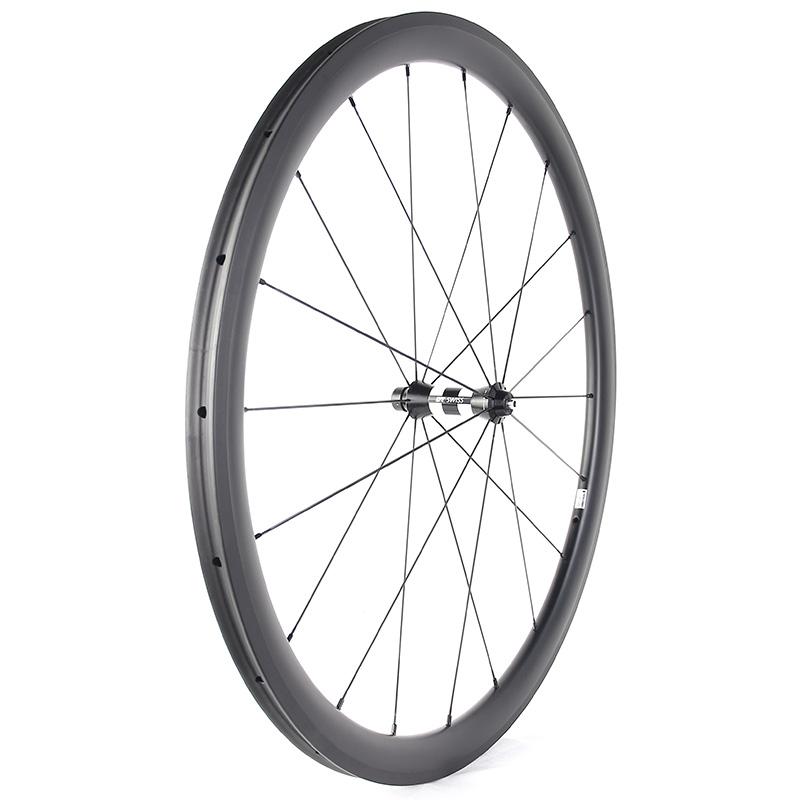

ProX DT350 Tubular Rim Brake Wheels - Mid-to-high End Carbon Tubular Wheelset For Training and Racing
DT Swiss 350s road hubs are developed to be reliable and simplified. The reliability is achieved by the simultaneous engagement of the ratchets which result in larger contact area.
The simplified end-caps design makes it possible for tool-free disassembly and easy maintenance. The cost of DT350 hubs are much lower than DT240 and DT180 hubs.
Carbon road wheels built with DT350 hubs are of great performance and affordable price for training or amateur racing.
ProX provides two width option for our DT350 rim brake carbon tubular wheels. That is, 28mm width carbon tubular rims, and 25mm width carbon rims tubular.
Both our 28mm and 25mm rim brake tubular carbon rims are made of Toray T700+T800 carbon fiber, with SL (super light) weight.
The 28mm width rim brake series (model PRV28-T) is compatible for 700*25C-35C tubular tire, with height 22/33/38/44/50/55mm optional.
The 25mm width rim brake series (model PRV25-T) is compatible for 700*23C-33C tubular tire, with height 38/45/50/60/80mm optional.
With so many options available, you can always choose the one with width and height you prefer.
ProX DT350 Rim Brake Tubular Carbon Wheelset Specification:
-Hub:DT350 Road (front 5*100mm QR/rear 5*130mm QR)
-Brake type: rim brake/non-disc
-Rear Cassette Body: Shimano 11/12s or Sram 12s XDR available
-Freehub System: Ratchet System 36 SL
-Type: straight pull
-Spoke Hole Count: front 20H/rear 24H
-Tire Type:Tubular
-Spoke: Pillar 1423
-Spoke Tension(recommended): ≤130kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years
DT350 Tubular Rim Brake Wheelset Built With PRV28 Tubular Carbon Rims (28mm width)
Model
Rim
Depth
Outer Width
Tire Type
Hub
Front Size
Rear Size
Spoke
350S-PRV28-33T-1423
PRV28-33T
33mm
28mm
Tubular
DT350S Road
5*100mm QR
5*130mm QR
Pillar 1423
700*25C-35C
1382g
350S-PRV28-38T-1423
PRV28-38T
38mm
28mm
Tubular
DT350S Road
5*100mm QR
5*130mm QR
Pillar 1423
700*25C-35C
1402g
350S-PRV28-44T-1423
PRV28-44T
44mm
28mm
Tubular
DT350S Road
5*100mm QR
5*130mm QR
Pillar 1423
700*25C-35C
1422g
350S-PRV28-50T-1423
PRV28-50T
50mm
28mm
Tubular
DT350S Road
5*100mm QR
5*130mm QR
Pillar 1423
700*25C-35C
1502g
350S-PRV28-55T-1423
PRV28-55T
55mm
28mm
Tubular
DT350S Road
5*100mm QR
5*130mm QR
Pillar 1423
700*25C-35C
1522g
700C Rim-brake Carbon Tubular Rims PRV28 (28mm width)
Rims | PRV28-33T | PRV28-38T | PRV28-44T | PRV28-50T | PRV28-55T |
Max Weight Limit | 105kg/230lb | 105kg/230lb | 110kg/240lb | 115kg/250lb | 115kg/250lb |
Material | T700 | T700 | T700 | T700 | T700 |
Sectional Drawing |
DT350 Tubular Rim Brake Wheelset Built With PRV25 Tubular Carbon Rims (25mm width)
Model | Rim | Depth | Outer Width | Tire Type | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|
350S-PRV25-38T-1423 | PRV25-38T | 38mm | 25mm | Tubular | DT350S Road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*23C-33C | 1382g |
350S-PRV25-45T-1423 | PRV25-45T | 45mm | 25mm | Tubular | DT350S Road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*23C-33C | 1422g |
350S-PRV25-50T-1423 | PRV25-50T | 50mm | 25mm | Tubular | DT350S Road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*23C-33C | 1462g |
350S-PRV25-60T-1423 | PRV25-60T | 60mm | 25mm | Tubular | DT350S Road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*23C-33C | 1622g |
350S-PRV25-80T-1423 | PRV25-80T | 80mm | 25mm | Tubular | DT350S Road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*23C-33C | 1742g |
700C Rim-brake Carbon Tubular Rims PRV25 (25mm width)
Rims | PRV25-38T | PRV25-45T | PRV25-50T | PRV25-60T | PRV25-80T |
Max Weight Limit | 105kg/230lb | 105kg/230lb | 110kg/240lb | 115kg/250lb | 115kg/250lb |
Material | T700+T800 | T700+T800 | T700+T800 | T700+T800 | T700+T800 |
Sectional Drawing |
|

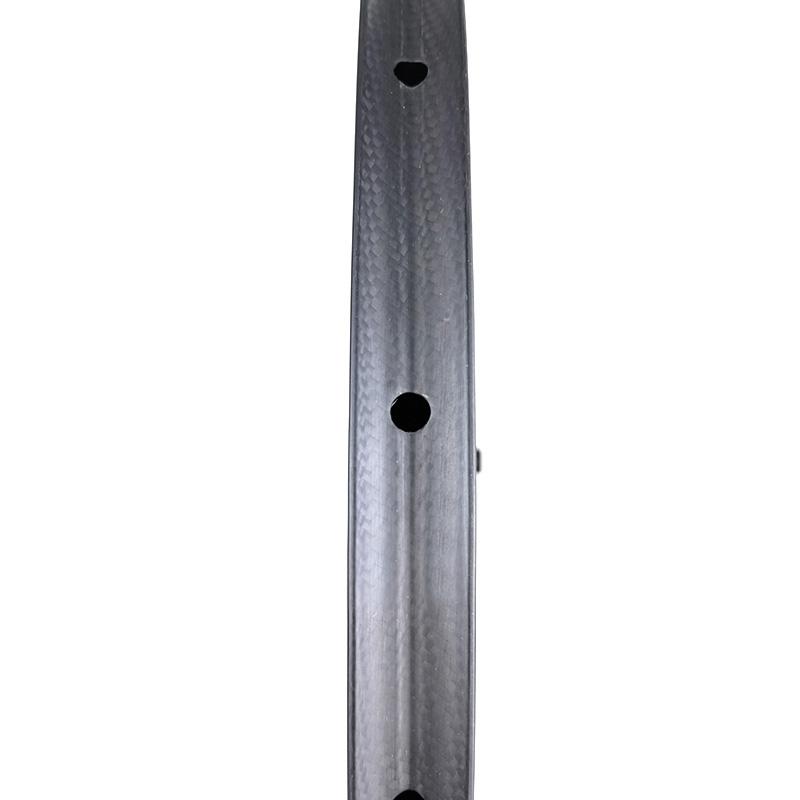

Carbon Fiber Material Premium Toray T700 + T800 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight tubular carbon rims.
|
|
Aero U Shape Wide U Shape road carbon rims are more aerodynamic than traditional V Shape road bike rims. It is also of better stiffness and strength. |
|
Rim Brake Road carbon rims designed with high TG brake track for rim brake use. Unique looking small grooves on brake surface. Small grooves provide more friction, shorten braking distance up to 30%. Faster water clearance, better performance in wet condition. Small grooves also help to eliminate braking heat faster, better protect the rim in long descending.
|
|
Hand Built All our carbon fiber wheelsets are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
|

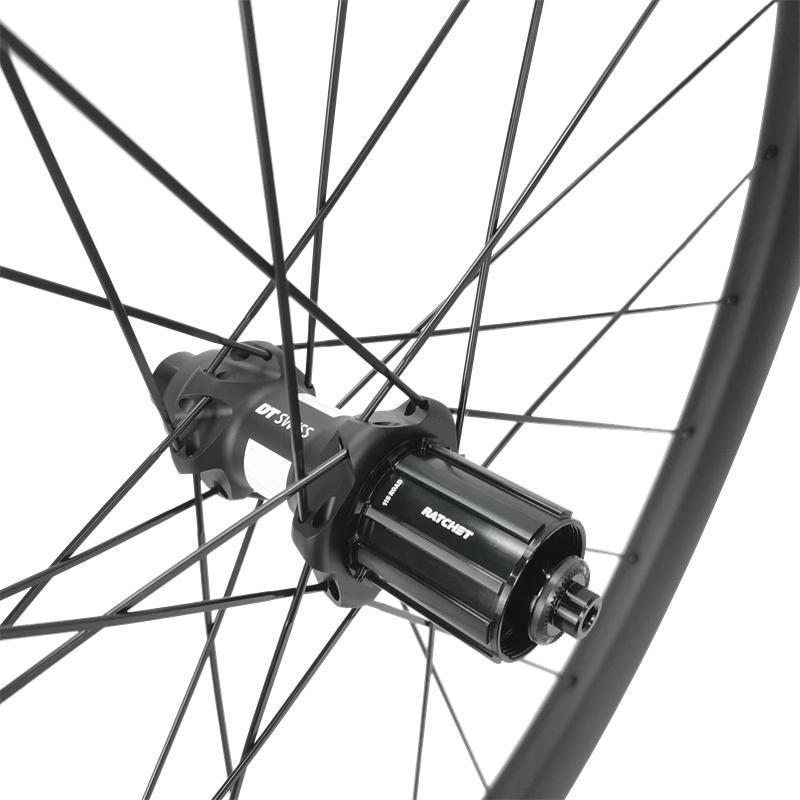

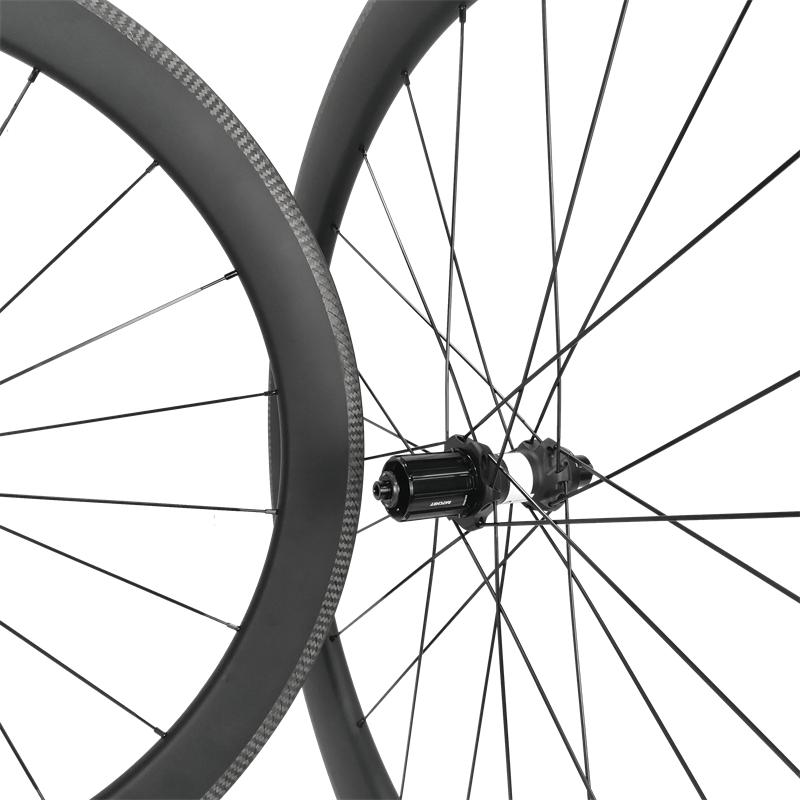

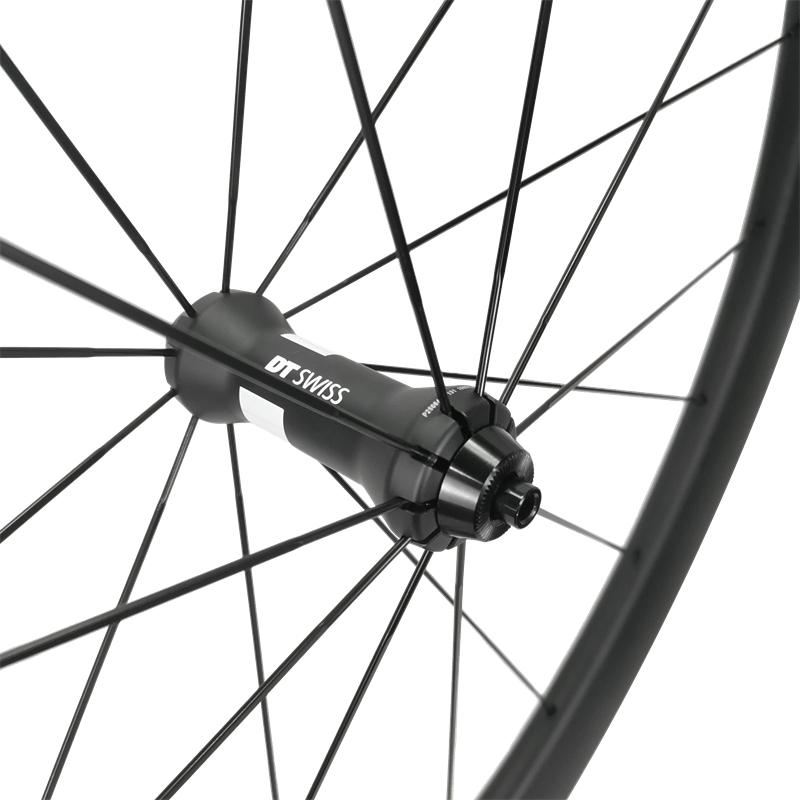

DT350 Road Hubs DT Swiss 350 road hubs are used. Rim brake carbon wheels with great performance and competitive price. DT Swiss Ratchet System, reliable and stable. Straight pull spoke system, direct power transmission. 5*100/5*130 standard QR, with Shimano 11-speed, Sram 12-speed XDR freehub optional.
|
|
Pillar Spokes The popular Pillar PSR AERO 1423 spokes are used. Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%. Perfect aero shape, high elasticity and low drag coefficient.
|
|
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page.
|
