• Full suspension 29er light XC carbon frame
• Hidden internal cable routing
• Fit 190*45mm rear shock (standard mount)
• UDH rear derailleur hanger
• 12*148mm boost thru-axle
• Threaded BSA-73 Bottom Bracket
Item NO.:
PXFS980Payment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD black(or Customized Decal/Painting):

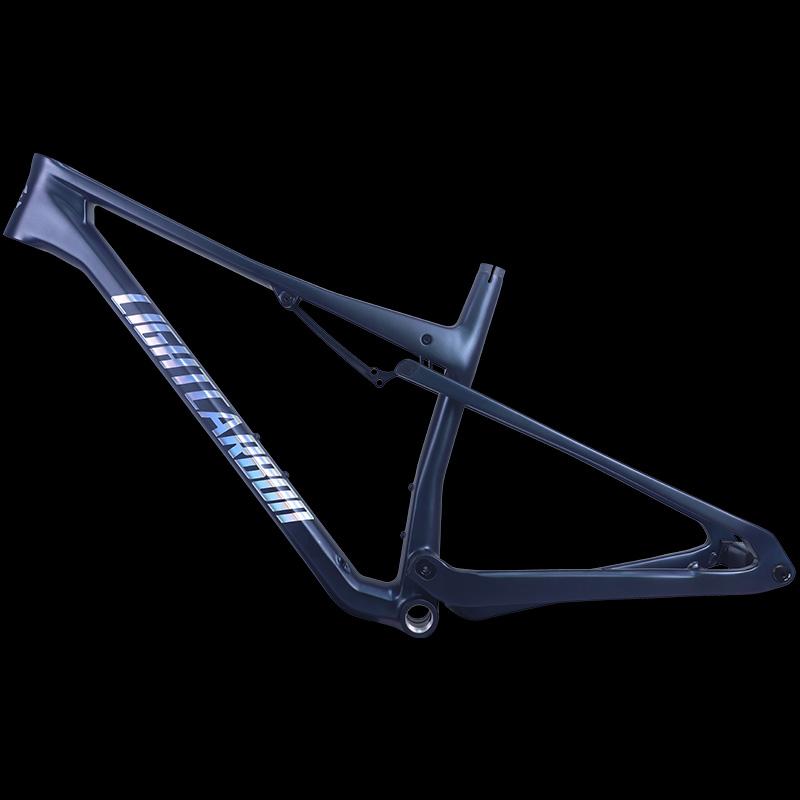

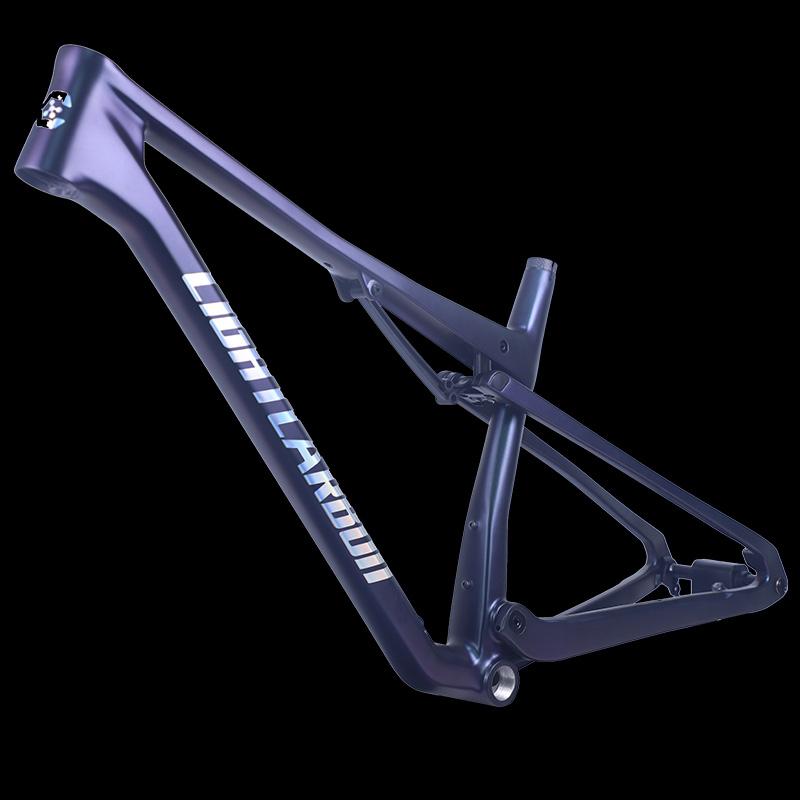

ProX 29er Full Suspension MTB Carbon Frame for Cross Country Riding
Cross country is one of the most exciting disciplines in MTB biking. The best XC bike combines everything we love about mountain biking-fast riding, uphill and downhill. XC bike is now lighter, faster and more capable than ever. Our 29er mtb full suspension carbon frame PXFS980 is currently available in three sizes (Small/Medium/Large), and is designed with 90mm rear travel for light XC range with great handling.

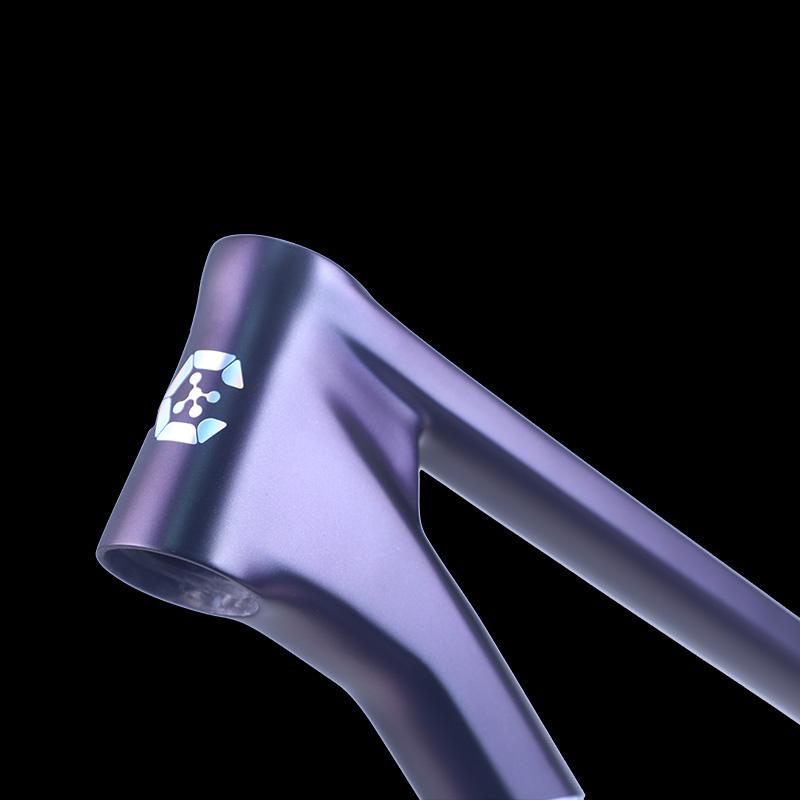

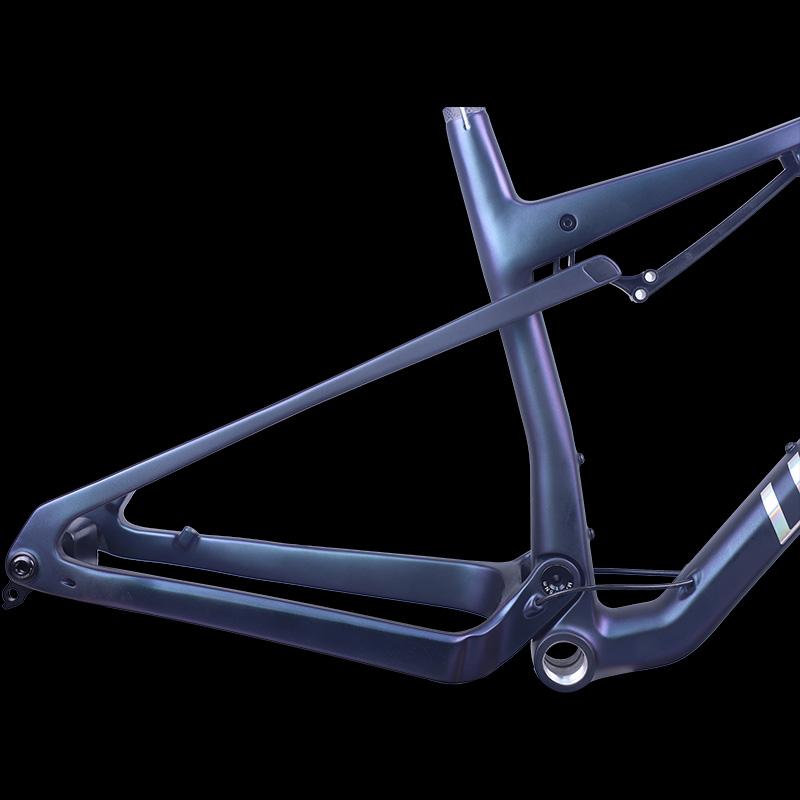

The default finish of carbon frame we make is UD matte or Glossy. In addition, customized logo and color painting is acceptable. It's your bike, it's special to you and which is what we also care about! The above frame pictures are with Chameleon 01HS color painting in matte finish. Please check the color painting options.
What is in your parcel? It includes frame, seat clamp, rear thru-axle, headset (optional), spare rear derailleur (optional) and handlebar (optional).
We offer Duty Free Shipping option to EU countries. It's prepaid for customs fee and leaves you with no trouble of customs. It's also door to door delivery, really convenient, just like the domestic shopping.
If you are thinking about buying a cross-country bike frame, then read on, it won't let you down.

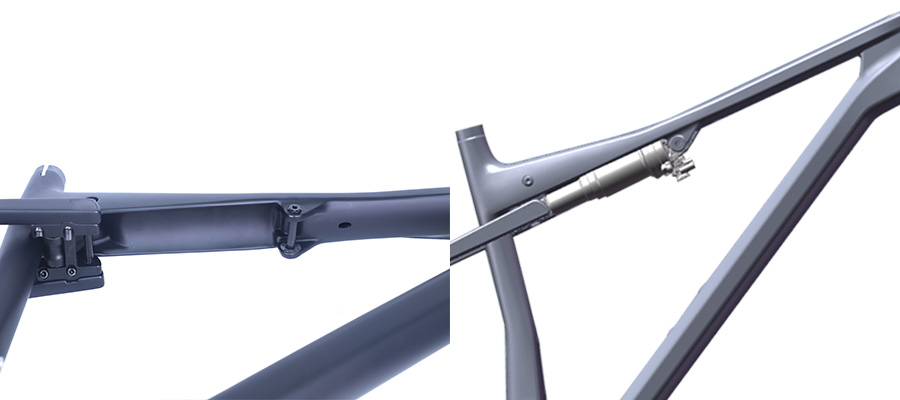

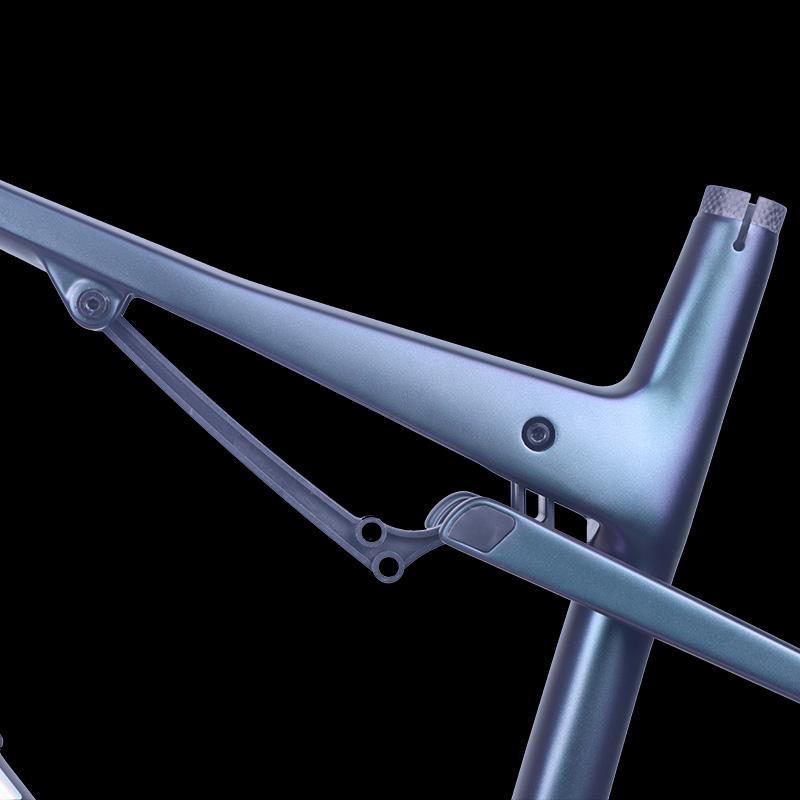

Semi-hidden Shock and Linkage Design

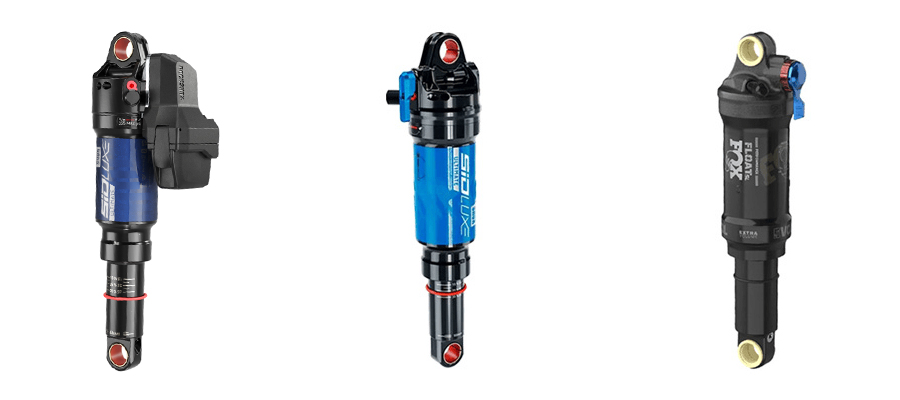

Rear Shock Size
Compatible Fork

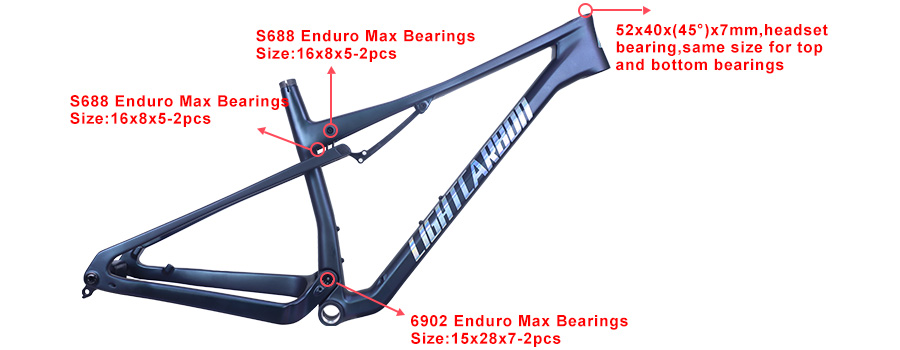

Bearings In PXFS980
In our PXFS980 dual suspension XC carbon frame, high quality Enduro Max bearings are used to optimize the suspension system performance. High end bearings endow our mtb carbon frames better performance and durability.

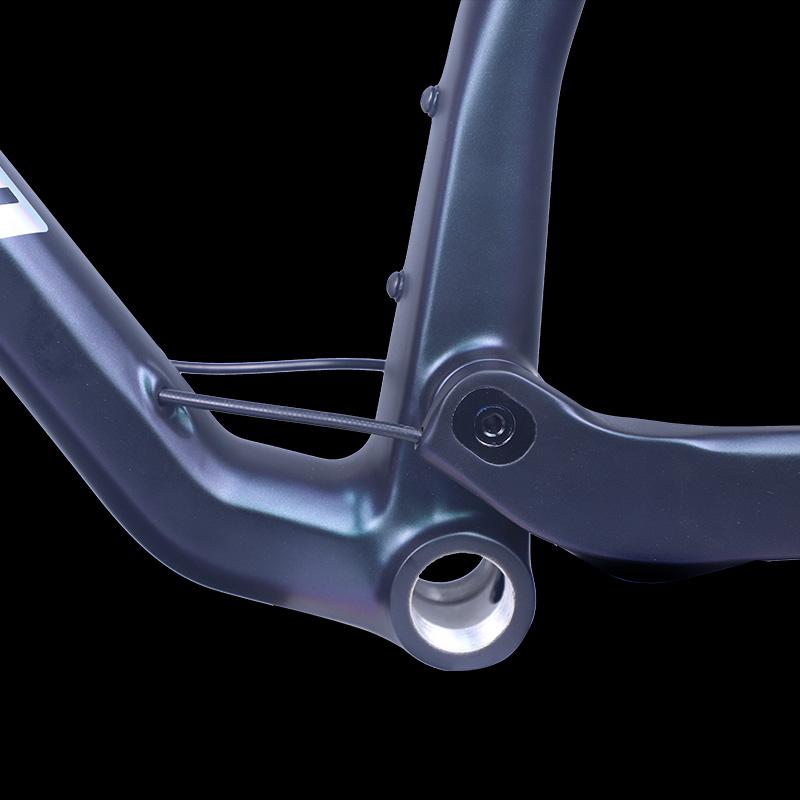

Full Hidden Cable Routing Design
Internal cable routing makes the whole bike look rather pretty. This suspension carbon XC frrame is with full hidden internal cable routing design. Cables go into head tube directly (with specific spacers to match frame and handlebar). After bike being built, the complete bike will look nice and clean. Besides, cables can be better protected inside and extend service life.
A-Dropper post remote routing

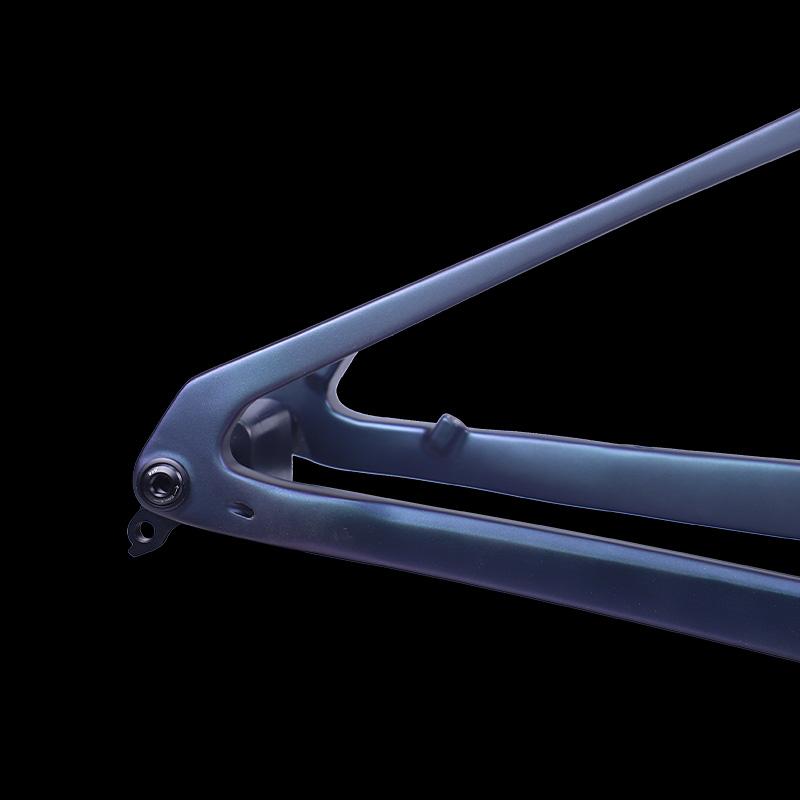

Universal Derailleur Hanger
The UDH (Universal Derailleur Hanger) creates a single hanger design that works on any bike for any derailleur generally and is primarily aimed at mountain bikes for now. It’ll also ensure perfect alignment during installation, so gear set up and shifting should be easier and crisper. What's more, if the chain jams, the hanger pivots backwards protecting the mech from being damaged. Besides, if you ever need replacement, it can be easily got since it is standard. From now on, say goodbye to the long lead time for the customized replacement hanger.
Latex 3D Mandrel Technology
Use newest one-piece latex 3D mandrel and moulding technology.
Chainstay Protector
Chains hit the chainstay all the time. Every bounce bump or jump on your bike will lead to a chain slap on the chainstay. By using this high quality cushioning chainstay protector, it minimizes the rattling sound coming from your bike and softly protecting the chain and the bike. Being fast bike and quiet bike as well.

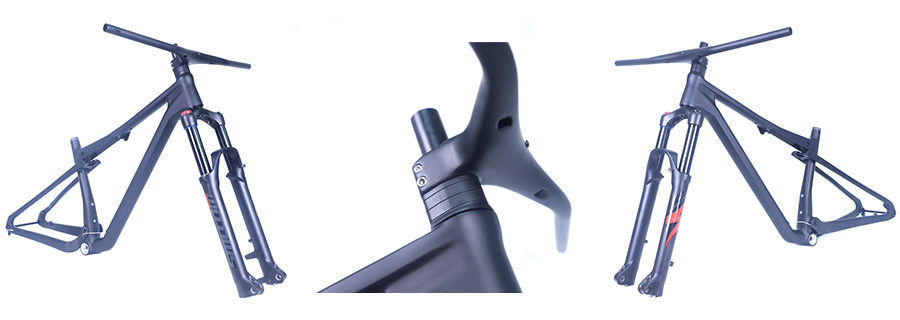

XC handlebar with Internal Cable Routing
Handlebar XC14 is our best seller mtb integrated bar/stem combo, and is highly recommended for this PXFS980 full suspension mtb carbon bike frame. There is specifically designed spacers to combine this handlebar with frame, and realize full hidden cable routing (cables enter frame headtube directly).
XC handlebar with Semi-internal Cable Routing
If you are not a fan of full internal cable routing, handlebar XC11 is also optional for you. Instead entering frame from under stem, cables can enter frame headtube from the specific top cover (with holes on the top).
The rear shock is efficient to steer the bike with confidence to challenge cross country rugged mountain terrain. It also help to absorb the small and large hits with ease, and provides relatively consistent and stable support through the entire adventure.
The full suspension fork with 51mm fork rake(offset) and boost size (15*110mm thru axle) is recommended.
B-Rear brake control routing
C-Rear shock remote routing
D-Rear derailleur cable routing
Even using same material, the strength is improved 30%.
27g per chainstay protector sheet and it will come with your frame.
If you are also looking for carbon bike wheels, please click below links or contact us for more details.
ProX Carbon 29er XC Cross Country Carbon MTB Suspension Frame PXFS980
31.6mm (34.9 clamp).
Dropper post insert depth: Size S-max 190mm, Size M -max 200mm, Size L-max 220mm
Frame:
29er cross country full suspension mountain bike frame
Material:
High modulus Toray T700+T800 Toray carbon fiber
Size:
S''/M''/L''
Front Travel:
100~120mm
Rear Travel:
90mm
Headtube:
Straight 1 1/2" head tube (upper 52mm lower 52mm)
Weight(+/-50g):
2050g/size M''
Seatpost Diameter:
Bottom Bracket:
Threaded BSA 73 (BC1.37*24T)
Max Tire Clearance:
29er*2.35'' or 650B*2.8''
Max Compatible Chainring:
36T (30T/32T/34T/36T)
Chainline:
52mm
Brake Type:
Post Mount Disc brake 160mm (180mm base on an adapter)
Rear Shock:
190*45mm (standard mount), -up M8*35 mm and down M8*35mm bushing kits (Not included)
Dropout:
12*148mm boost thru axle
Rear Hanger:
UDH
Test Standard:
ISO4210
Warranty:
2 years

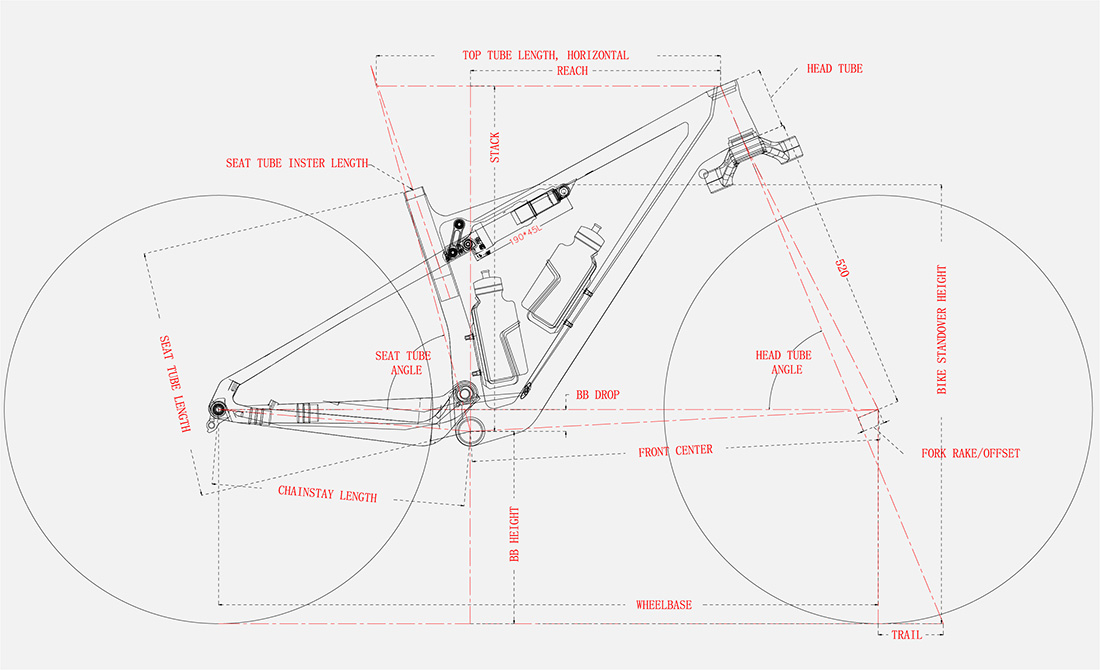

Geometry
SIZE
S
M
L
BODY HEIGHT(Reference)
156-164cm
165-177cm
178-189cm
Remarks For BODY HEIGHT
For reference only, may vary due to different body proportions.
SEATPOST INSERT LENGTH
190mm
200mm
220mm
REACH
410mm
435mm
460mm
TOP TUBE LENGTH, HORIZONTAL
570mm
598mm
625mm
STACK
586.9mm
597mm
606mm
WHEELBASE
1131mm
1160mm
1188.9mm
CHAINSTAY LENGTH
440mm
440mm
440mm
FRONT CENTER
722.7mm
723mm
751.5mm
BB DROP
38mm
38mm
38mm
BB HEIGHT
334.5mm
334.5mm
334.5mm
SEAT TUBE ANGLE
74.75°
74.75°
74.75°
HEAD TUBE ANGLE
67.5°
67.5°
67.5°
SEAT TUBE LENGTH
390mm
432mm
470mm
HEAD TUBE LENGTH
95mm
105mm
115mm
BIKE STANDOVER HEIGH(29“*2.35”)
744.5mm
744.5mm
746.5mm
FORK RAKE/OFFSET
51mm
51mm
51mm
FORK LENGTH, FULL
520mm
520mm
520mm
TRAIL
113.7mm
113.7mm
113.7mm
|
|
|
