• 28mm and 25mm width tubular rims optional
• Economical ProX C98DB hubs, ceramic bearings
• Shimano/Sram 11-12 speed freehub available
• Pillar 1423 spokes, aero and strong
• Compatible for 700*23C-35C tubular tire
Brand:
PROXItem NO.:
98DB Tubular WheelsPayment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD/3K/12K(Customized Decal Acceptable)

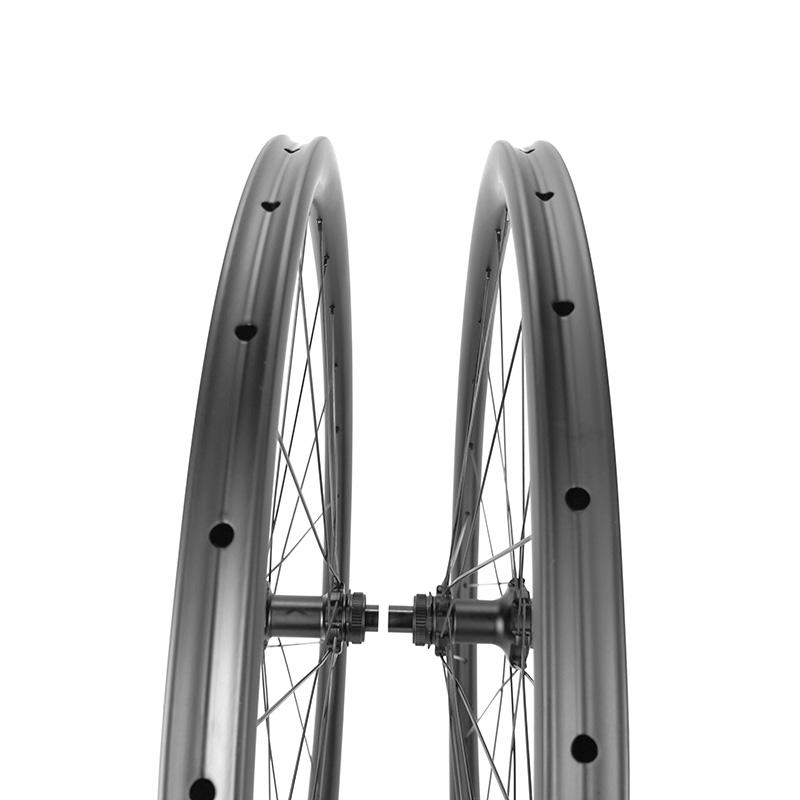

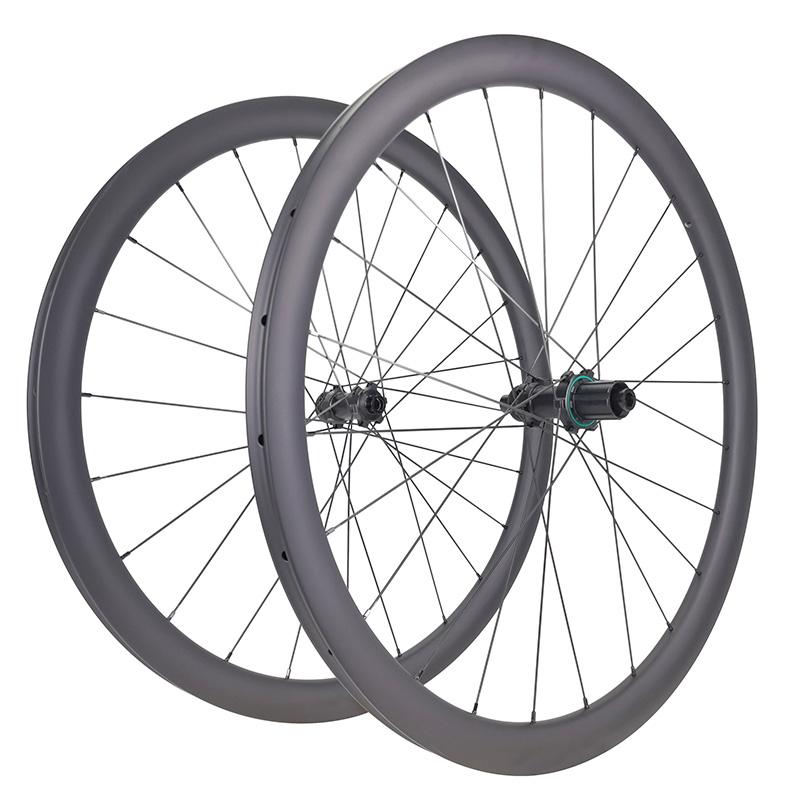

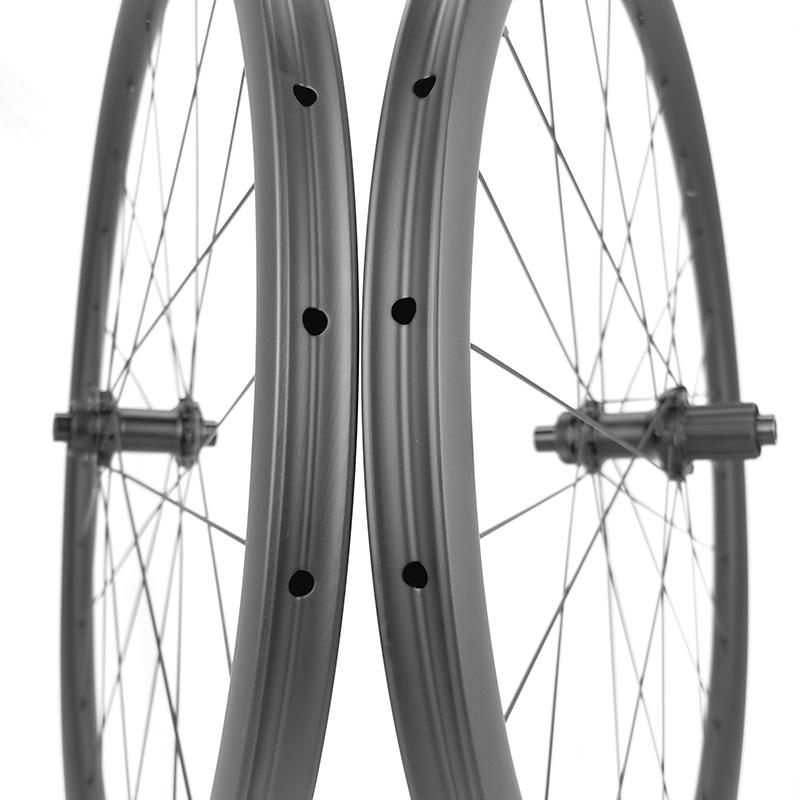

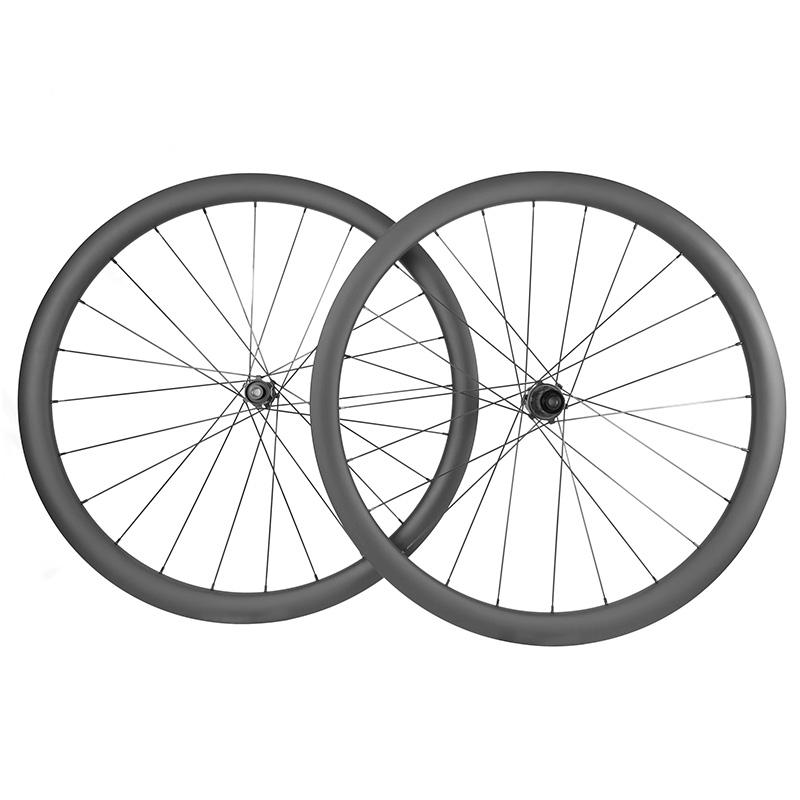

ProX Own Mould C98DB Disc Brake Tubular Road Wheels - Affordable Carbon Wheelset For Training
Considering the cost of DT Swiss hubs increases quickly, and lead time is getting longer and longer, ProX has developed our own mould disc brake hubs (called C98DB).

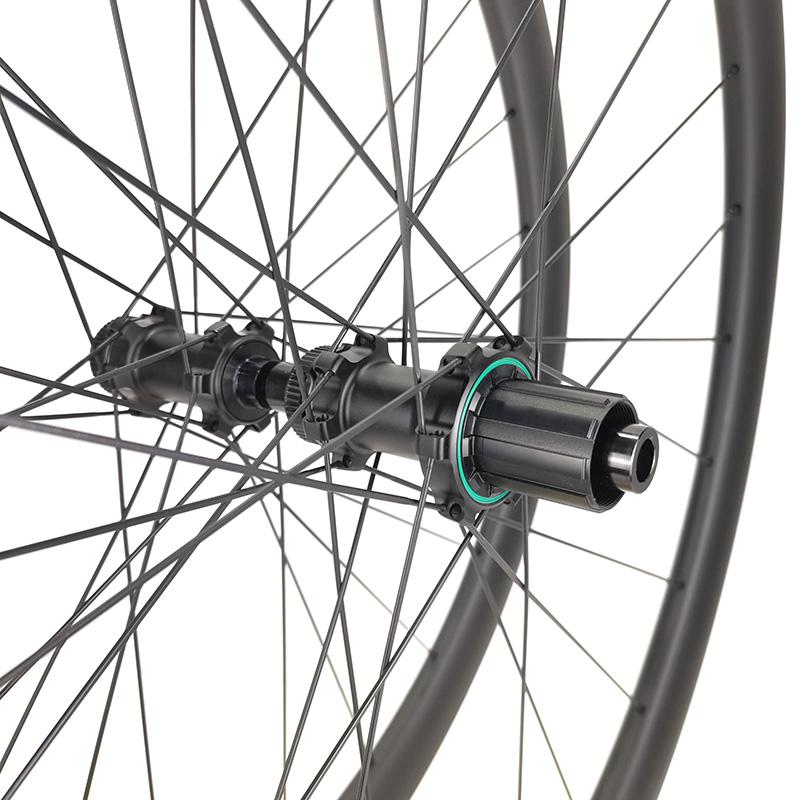

ProX C98DB road disc brake hubs are designed with 6-pawl freehub system, featuring ceramic bearings (also with regular steel bearings can be chosen).
Ceramic bearings are rounder, smoother and with more uniform size. In that case, the friction is reduced and that can contribute more energy to the wheels.
Ceramic bearing is also harder than steel bearings (up to 30%), which improves durability, and they also don’t rust for less maintenance.
In addition, 98DB hubs can be made with your customized logo (either etch logo or make stickers). So it will become your own brand hubs!

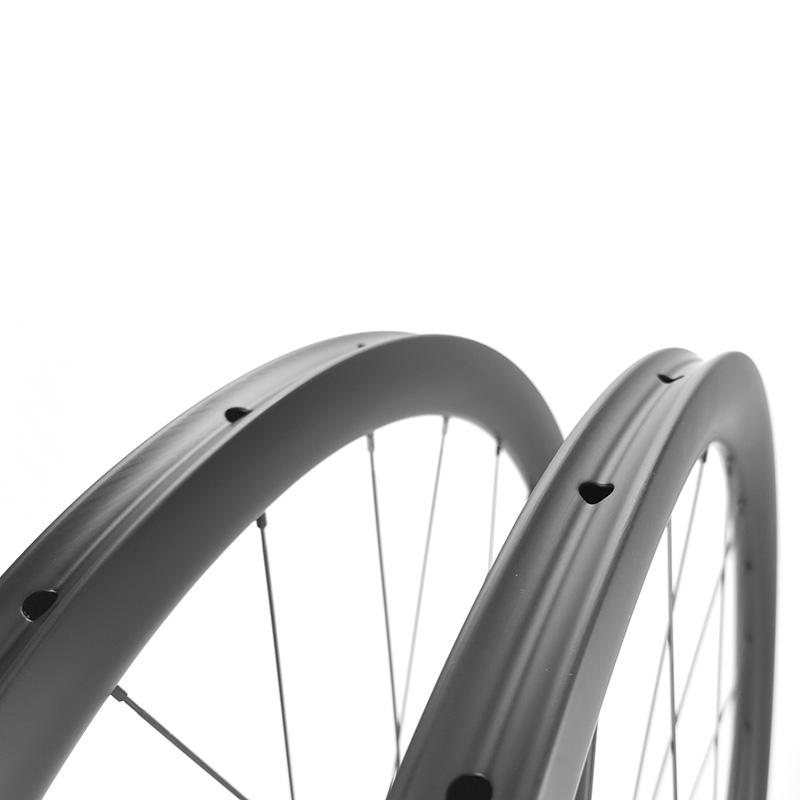

ProX provides two width option for our C98DB disc brake carbon tubular wheels. That is, 28mm width carbon tubular rims, and 25mm width carbon rims tubular.
Both our 28mm and 25mm disc brake tubular carbon rims are made of Toray T700+T800 carbon fiber, with SL (super light) weight.
The 28mm width disc brake rim series (model PRD28-T) is compatible for 700*25C-35C tubular tire, with height 22/33/38/44/50/55mm optional.
The 25mm width disc brake rim series (model PRD25-T) is compatible for 700*23C-33C tubular tire, with height 38/45/50/60/80mm optional.
With so many options available, you can always choose the one with width and height you prefer.
ProX Own Mould C98DB Disc Brake Tubular Carbon Road Wheelset Specification:
-Hub:ProX C98DB disc hubs (front 12*100mm TA/rear 12*142mm TA), with ceramic bearings.
Front bearing spec 6902x2pcs. Rear bearing spec 6902x3pcs and 15267x1pc.
-Disc brake type: center lock
-Cassette Body: Shimano 11/12s or Sram 12s XDR
-Type: straight pull
-Spoke Hole Count: front 24H/rear 24H
-Tire Type: Tubular
-Spoke: Pillar 1423 spoke
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years
ProX C98DB Disc Brake Tubular Wheelset Built With PRD28 Tubular Carbon Rims (28mm width)
Model | Rim | Depth | Outer Width | Tire Type | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|
C98DB-PRD28-22T-1423 | PRD28-22T-SL | 22mm | 28mm | Tubular | ProX C98DB Disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1287g |
C98DB-PRD28-33T-1423 | PRD28-33T-SL | 33mm | 28mm | Tubular | ProX C98DB Disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1327g |
C98DB-PRD28-38T-1423 | PRD28-38T-SL | 38mm | 28mm | Tubular | ProX C98DB Disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1347g |
C98DB-PRD28-44T-1423 | PRD28-44T-SL | 44mm | 28mm | Tubular | ProX C98DB Disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1367g |
C98DB-PRD28-50T-1423 | PRD28-50T-SL | 50mm | 28mm | Tubular | ProX C98DB Disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1407g |
C98DB-PRD28-55T-1423 | PRD28-55T-SL | 55mm | 28mm | Tubular | ProX C98DB Disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1447g |
Rims | PRD28-22T-SL | PRD28-33T-SL | PRD28-38T-SL | PRD28-44T-SL | PRD28-50T-SL | PRD28-55T-SL |
Max Weight Limit | 90kg/198lb | 105kg/230lb | 105kg/230lb | 110kg/240lb | 115kg/250lb | 115kg/250lb |
Material | T700+T800 | T700+T800 | T700+T800 | T700+T800 | T700+T800 | T700+T800 |
Sectional Drawing |
ProX C98DB Disc Brake Tubular Wheelset Built With PRD25 Tubular Carbon Rims (25mm width)
Model
Rim
Depth
Outer Width
Tire Type
Hub
Front Size
Rear Size
Spoke
C98DB-PRD25-38T-1423
PRD25-38T-SL
38mm
25mm
Tubular
ProX C98DB Disc
12*100mm
12*142mm
Pillar 1423
700*23C-33C
1327g
C98DB-PRD25-45T-1423
PRD25-45T-SL
45mm
25mm
Tubular
ProX C98DB Disc
12*100mm
12*142mm
Pillar 1423
700*23C-33C
1347g
C98DB-PRD25-50T-1423
PRD25-50T-SL
50mm
25mm
Tubular
ProX C98DB Disc
12*100mm
12*142mm
Pillar 1423
700*23C-33C
1387g
C98DB-PRD25-60T-1423
PRD25-60T-SL
60mm
25mm
Tubular
ProX C98DB Disc
12*100mm
12*142mm
Pillar 1423
700*23C-33C
1547g
C98DB-PRD25-80T-1423
PRD25-80T-SL
80mm
25mm
Tubular
ProX C98DB Disc
12*100mm
12*142mm
Pillar 1423
700*23C-33C
1747g
700C Road Disc Brake Tubular Carbon Rims PRD25 (25mm width)
Rims
PRD25-38T-SL
PRD25-45T-SL
PRD25-50T-SL
PRD25-60T-SL
PRD25-80T-SL
Max Weight Limit
105kg/230lb
105kg/230lb
110kg/240lb
115kg/250lb
115kg/250lb
Material
T700+T800
T700+T800
T700+T800
T700+T800
T700+T800
Sectional Drawing
|
Carbon Fiber Material Premium Toray T700 + T800 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight tubular carbon rims.
|
|
Light Weight By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness. |
|
Aero U Shape Wide U Shape carbon road rims are more aerodynamic than traditional V Shape carbon road rims. It is also of better stiffness and strength. |
|
Road Disc Brake Road disc brake provides more sensitive and precise braking performance than rim brake. Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking. Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight. |
|
Hand Built All our bicycle carbon wheels are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
|
ProX Road Hubs ProX own mould 98DB road hubs are used. High quality hubs with cheap price. 98DB road disc brake hubs are designed with 6-pawl freehub system. With regular steel bearings and ceramic bearings optional. Such hubs can also be etched with your customized logo.
12*100/12*142 thru-axle, with Shimano 11-speed, Sram 12-speed XDR freehub optional.
|
|
Pillar Spokes The popular Pillar PSR AERO 1423 spokes are used. Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%. Perfect aero shape, high elasticity and low drag coefficient.
|
|
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page. |
|
|
