ProX Full Suspension 29er XC Carbon Frame Cross Country MTB XC Frame

29er full suspension XC carbon frame

• Fit 165*45mm, or 165*38mm rear shock

• Max 120mm rear travel

12*148mm boost thru axle

  • Item NO.:

    PXFS917
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD black(or Customized Decal/Painting)
DESCRIPTION

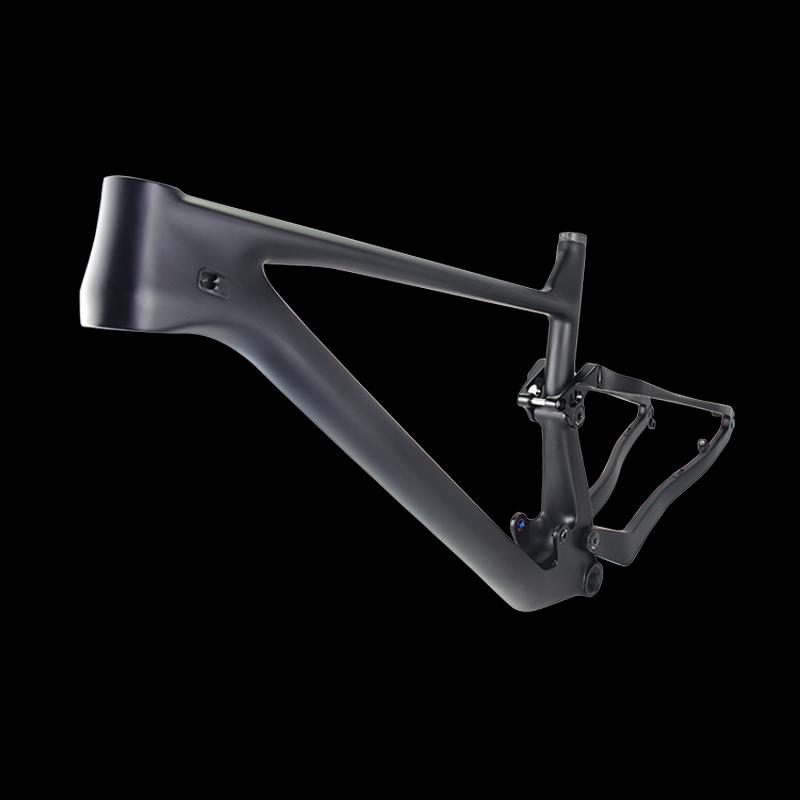

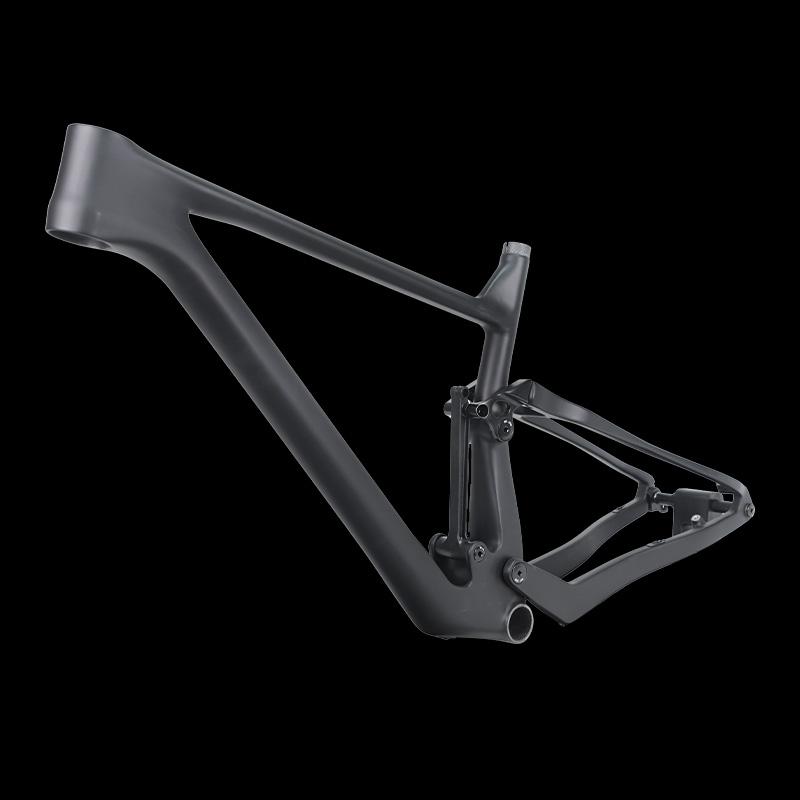

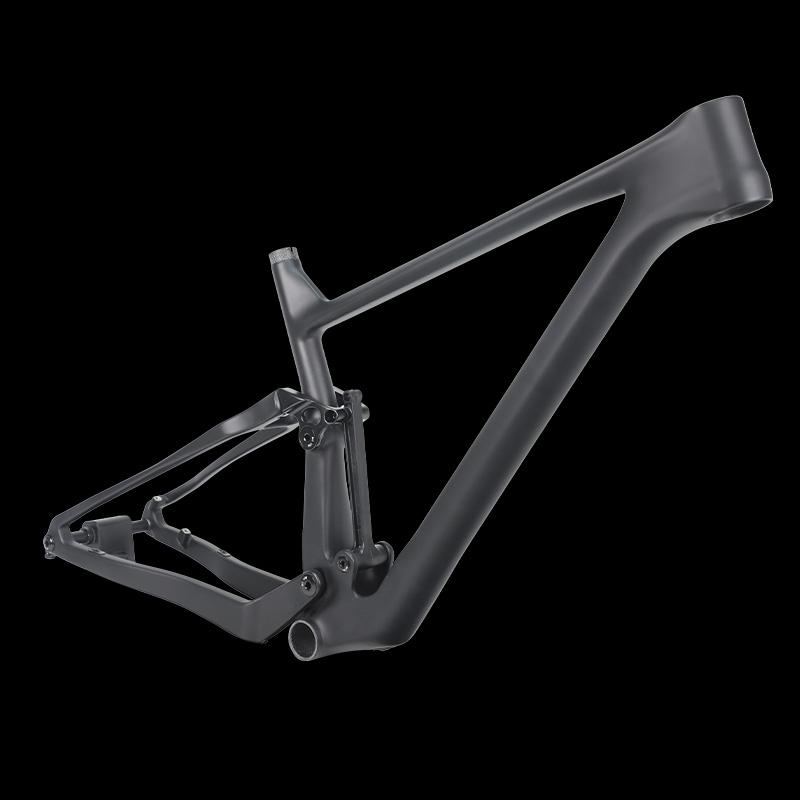

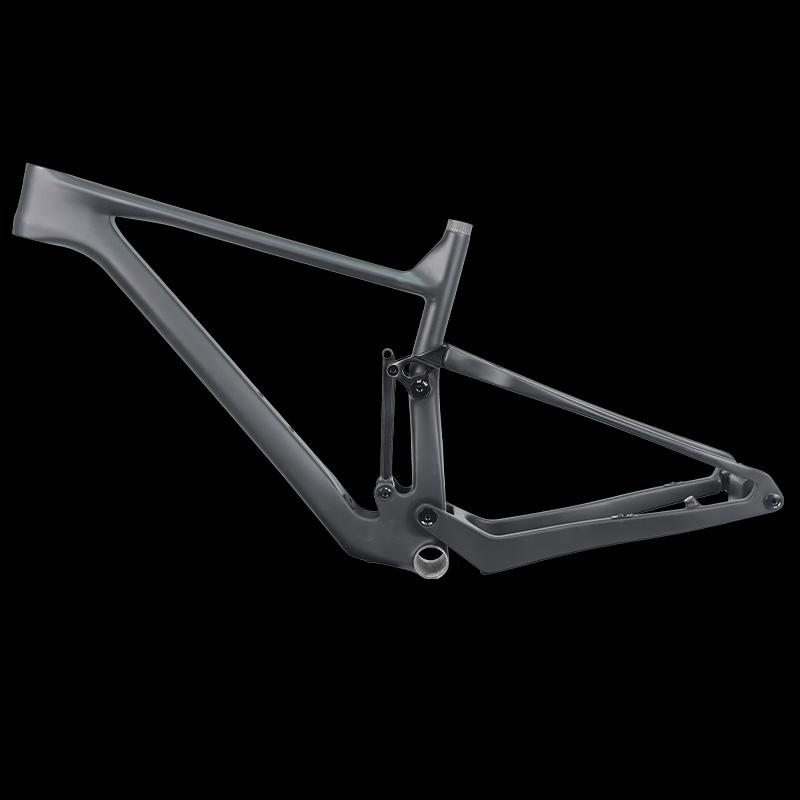

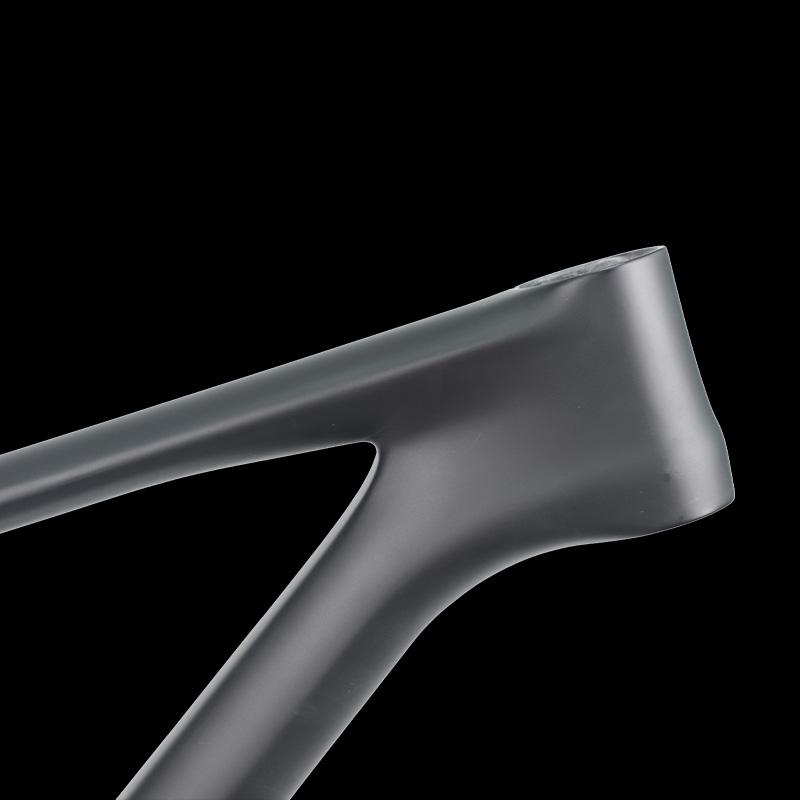

ProX Full Suspension Carbon Frame for Cross Country Riding

Cross country is one of the most exciting disciplines in MTB biking. The best XC bike combines everything we love about mountain biking-fast riding, uphill and downhill. Cross country MTB bike is now lighter, faster and more capable than ever.

Our full suspension mtb carbon frame PXFS917 is currently available in three sizes (16'', 18'', 20''), and is compatible for both 27.5 inch and 29 inch bike wheels.
The default finish of carbon frame we make is UD matte or glossy. In addition, customized logo and color painting is acceptable. So you can get this bike frame as what you like!
What is in your parcel? It includes frame, seat clamp, rear thru-axle, headset(optional) and spare rear derailleur(optional).
If you are thinking about buying a cross-country bike frame, then read on, it won't let you down.

suitable rear shock for PX FS917 carbon frame

Rear Shock Size

PXFS917 is designed to fit 165*45mm, 165*40mm trunnion mount rear shock. It also fits 165*38mm standard mount rear shock by adding an adaptor.

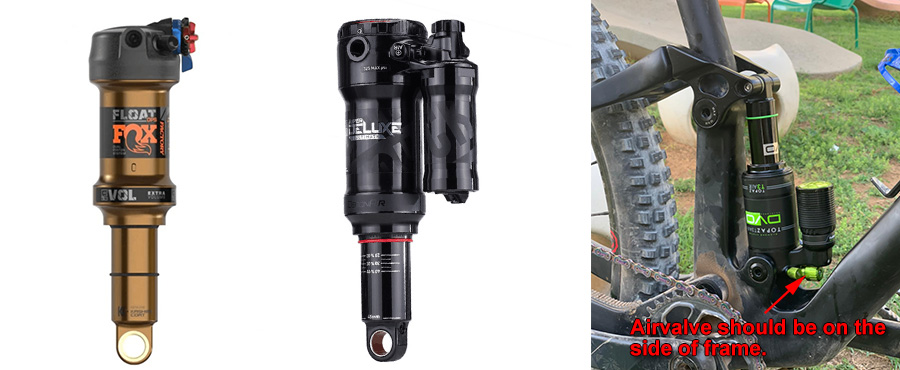

Due to the installation position of rear shock on the frame, there is no adequate space to accept all rear shock with piggy back design. Rockshox Super Deluxe rear shock is workable. The DVO Topaz shock can be mounted on this frame, but the airvalve goes right ahead of frame and can not be pumped directly. Recommend to choose shock with airvalve on either side of frame.

The rear shock is efficient to steer the bike with confidence to challenge cross country rugged mountain terrain. It also help to absorb the small and large hits with ease, and provides consistent and stable support through the entire adventure.
PXFS917 full lsuspension system

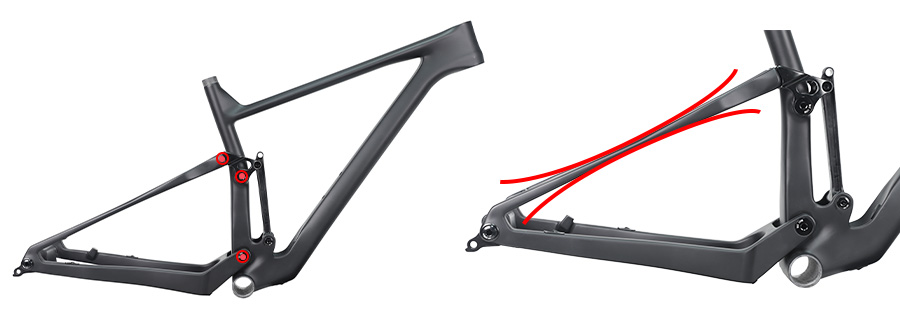

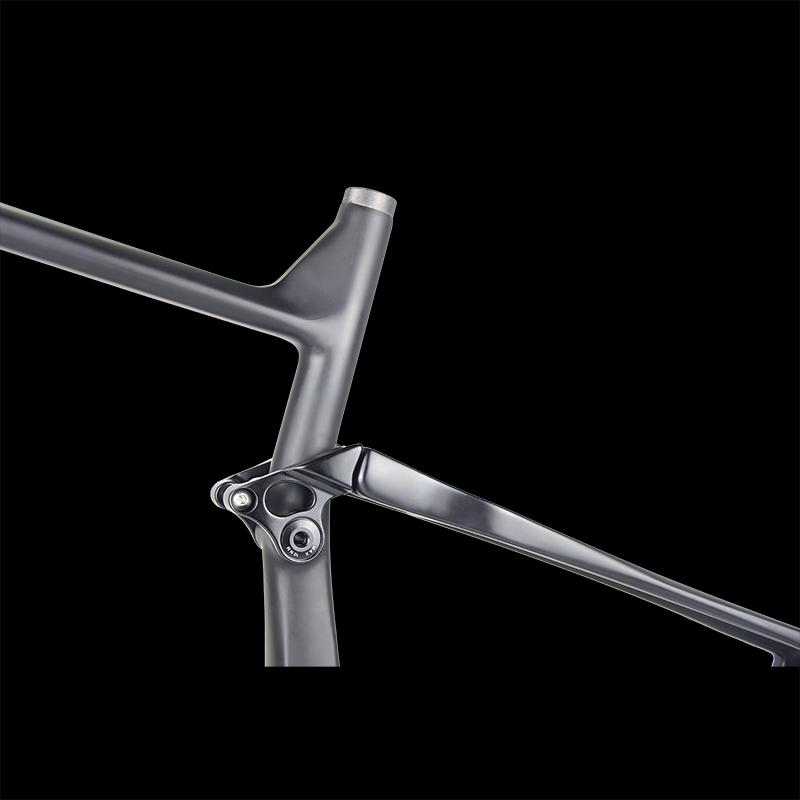

Linkage-driven Single Pivot Suspension System

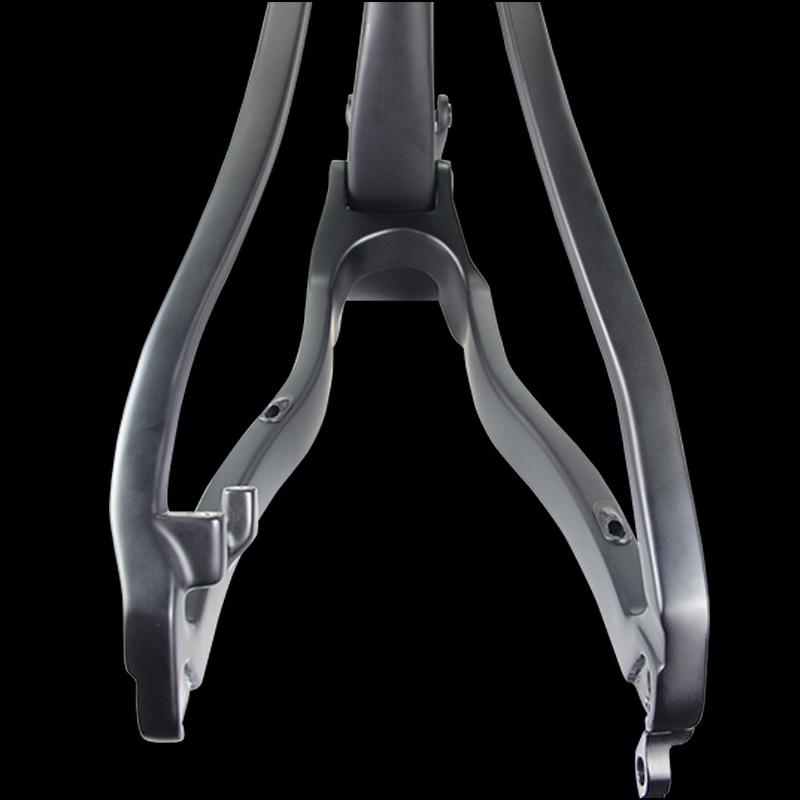

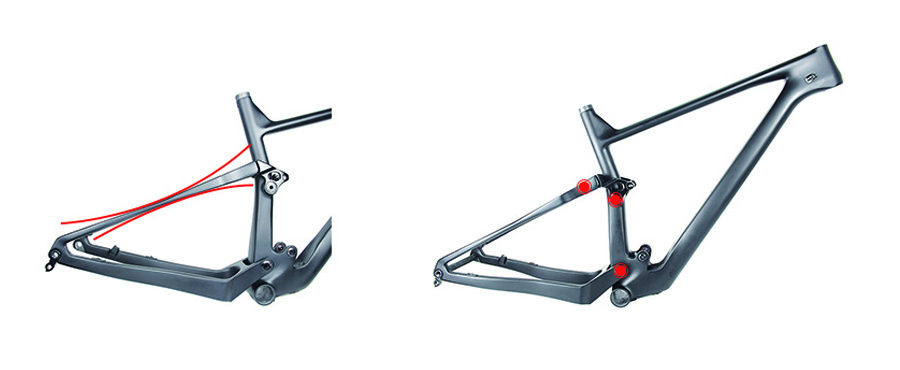

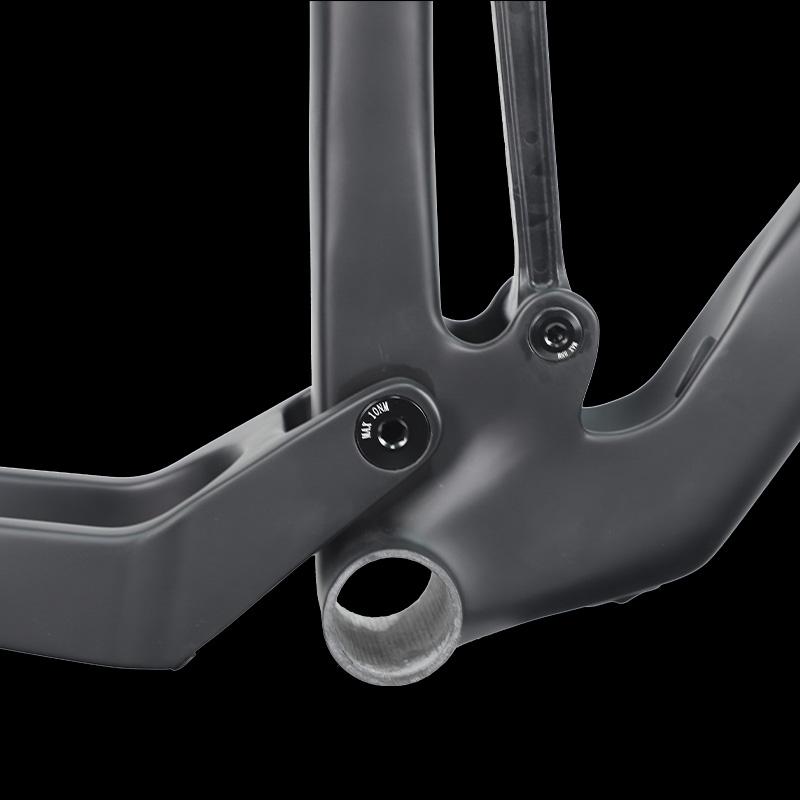

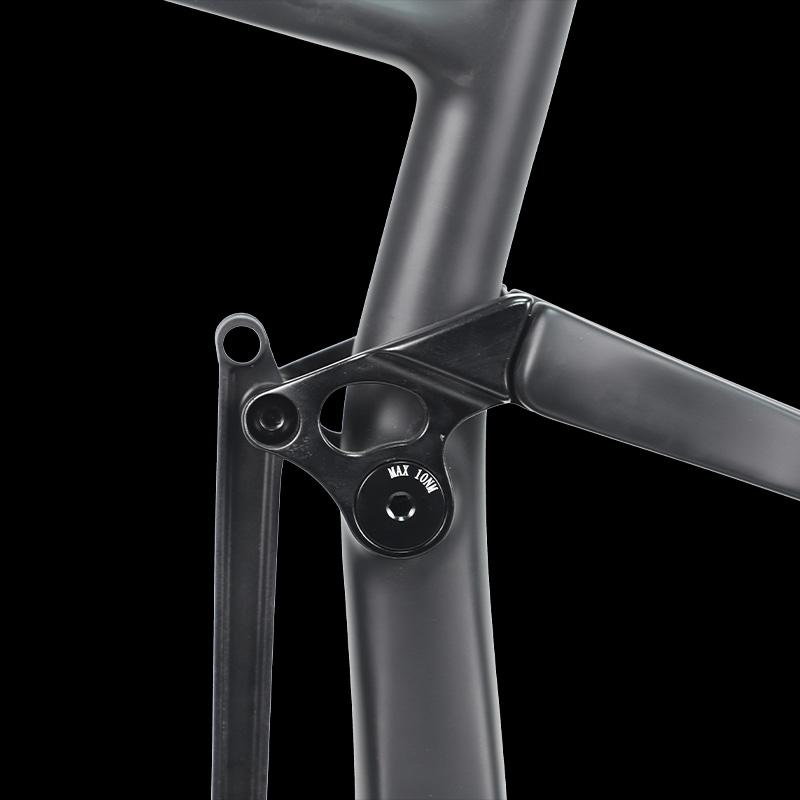

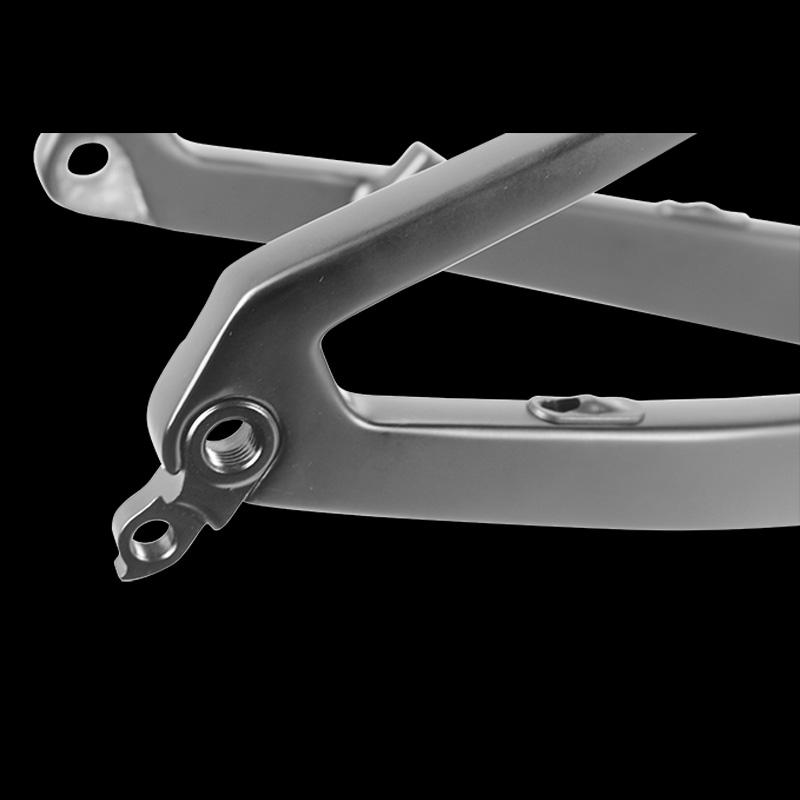

Such single pivot suspension system uses an uninterrupted swingarm which connects rear axle directly to the main body of frame. There is no pivot on swingarm, so there is no pivot loosen or noise issue, and the maintenance is simpler. In addition, the stiffness, stability and controllability are greatly improved.

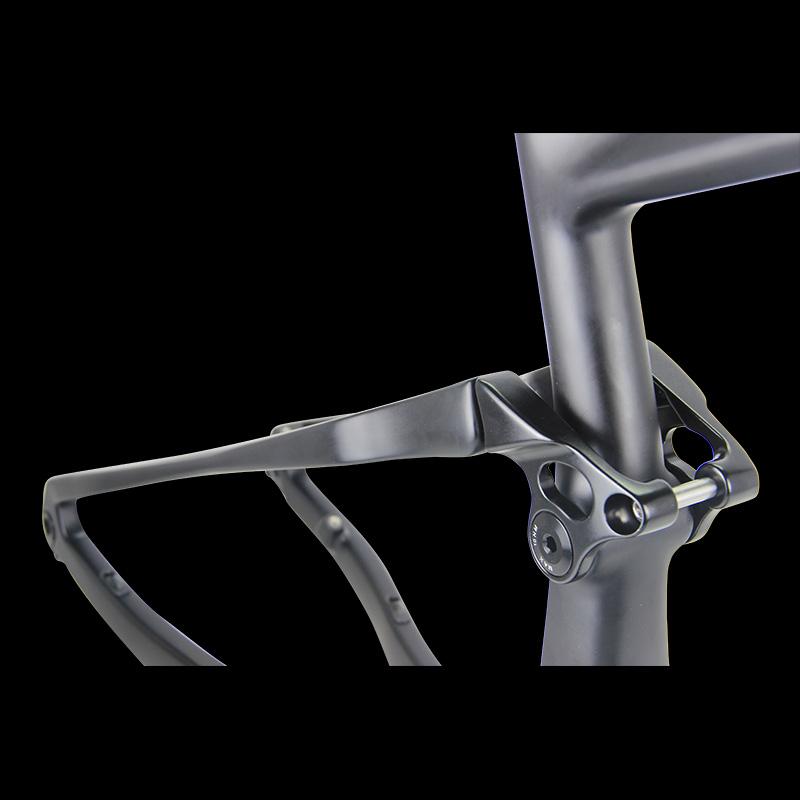

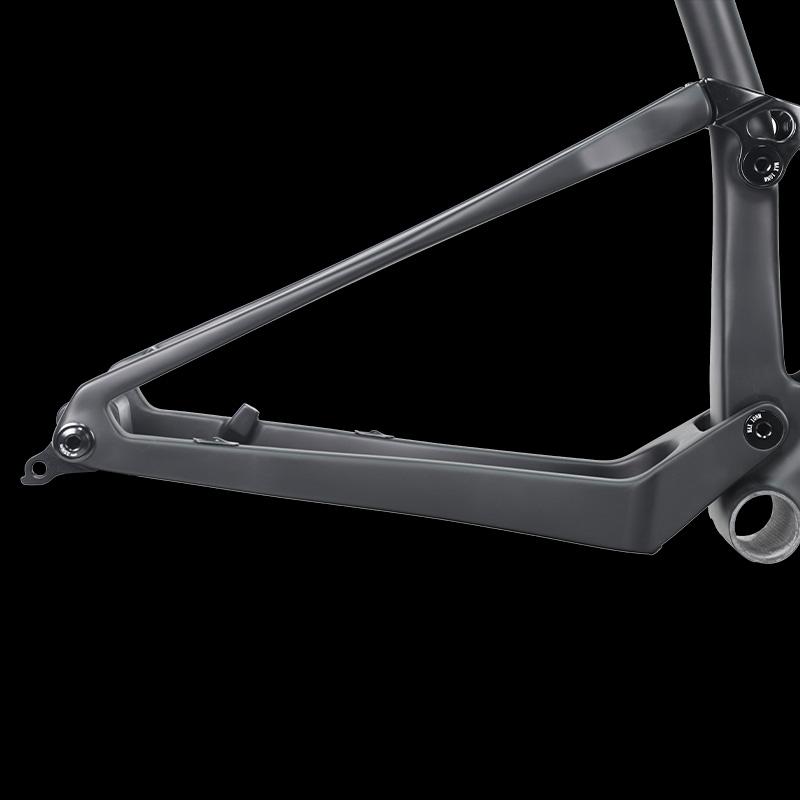

A bit flat shape in the middle of seat stay, best trade-off of stiffness and comfortability. Such shape avoid abrupt feeling coming from linkage pivot point due to the high stiffness of rear triangle. With the help of high quality Enduro Max bearing, the rear shock is able to work more smoothly and provide better comfortability for rider.

PXFS917 uses high end Enduro Max bearings

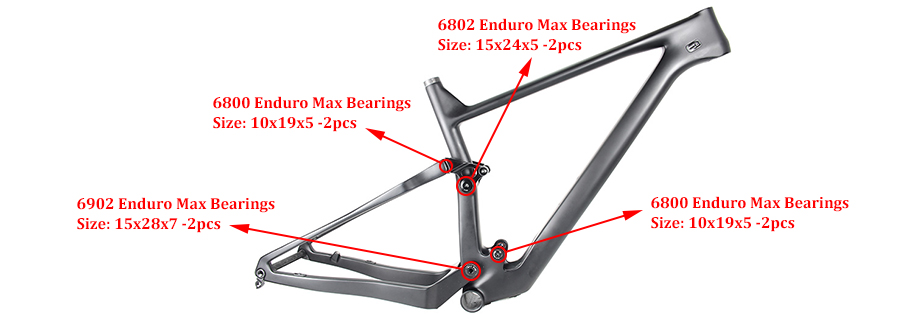

Enduro MAX Bearings

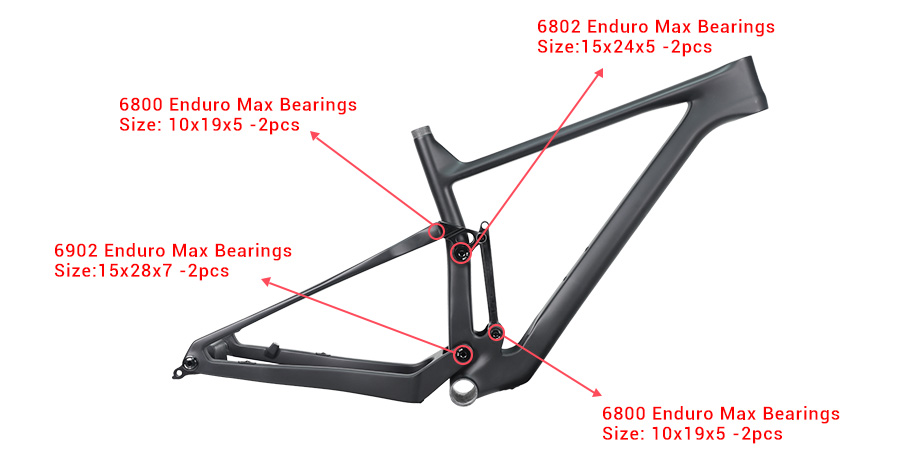

In our XC carbon frame PXFS917, high quality Enduro bearings are used to optimize the suspension system performance. Enduro Bearings MAX series are with almost 20 years history and help mountain bike pivots for challenges. It's advertised these bearings have 35-40% more load capacity than standard radial bearings. High end bearings endow our mtb carbon frames better performance and durability.

full internal cable routing

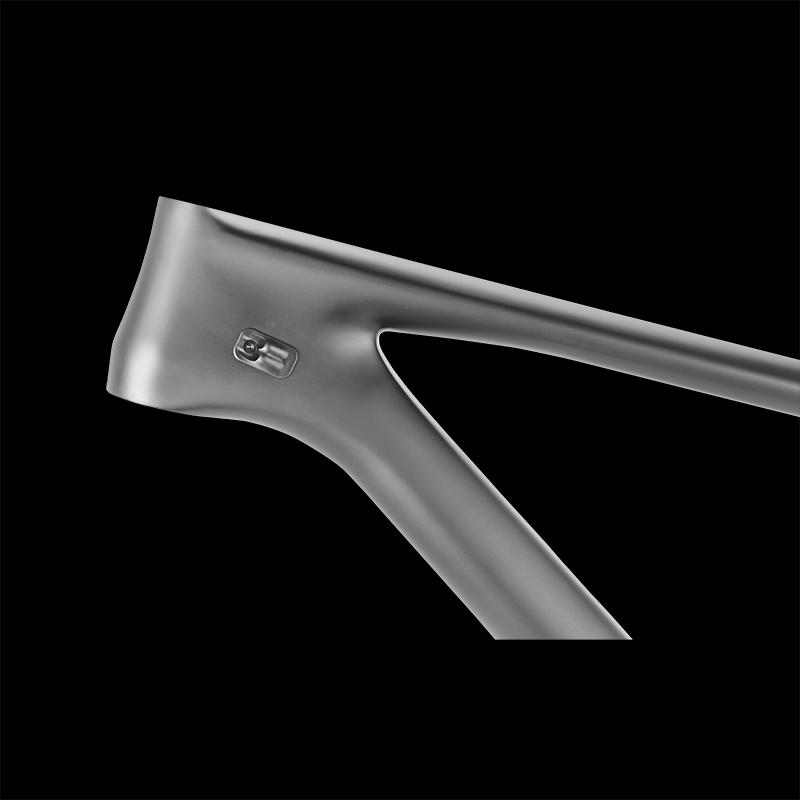

Full Internal Cable Routing Design

There is no doubt that full internal cable routing looks rather pretty. This full suspension 29er carbon frame is with internal cable routing design. Perfect combination of professional geometry and full internal cable routing design. This design looks really nice and clean after whole bike assembled.

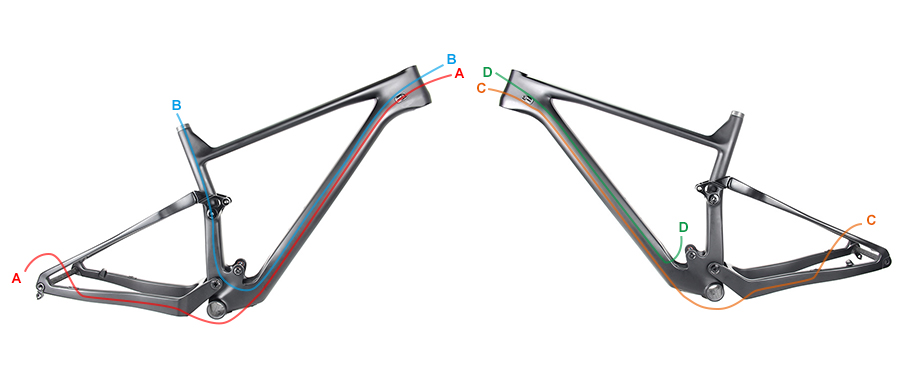

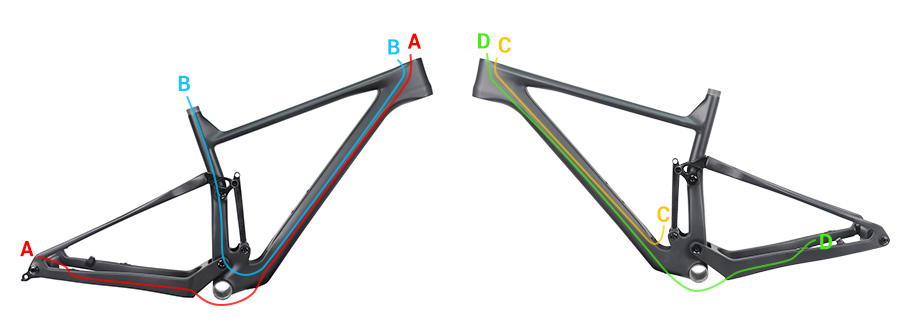

A-Rear derailleur cable routing
B-Dropper post remote routing
C-Rear brake control routing
D-Rear shock remote routing

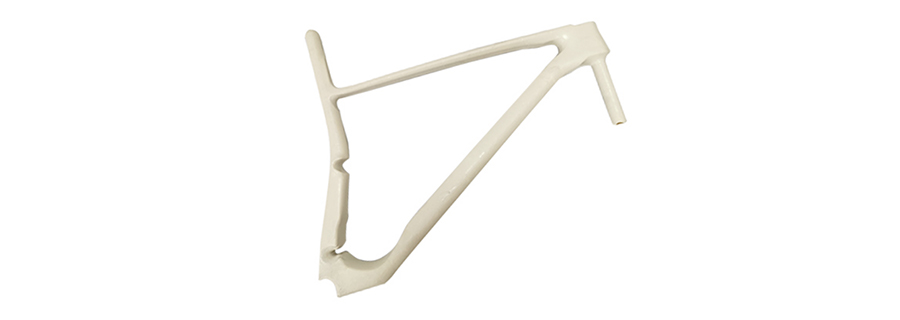

latex 3D mandrel

Latex 3D Mandrel Technology

Use newest one-piece latex 3D mandrel and moulding technology.

Such technology helps to optimize the orthodromic and strength of carbon fiber, and avoid wrinkle inside (wrinkle is a key factor that may cause crack).
Even using same material, the strength is improved 30%.

Chainstay Protector

Chainstay Protector

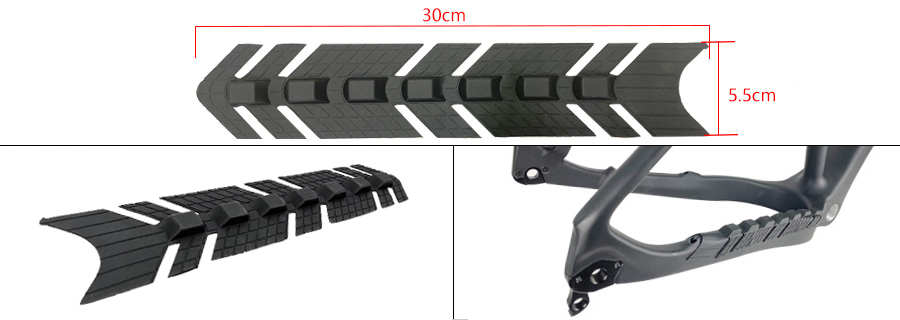

Chains hit the chainstay all the time. Every bounce bump or jump on your bike will lead to a chain slap on the chainstay. By using this high quality cushioning chainstay protector, it minimizes the rattling sound coming from your bike and softly protecting the chain and the bike. Being fast bike and quiet bike as well.
27g per chainstay protector sheet and it will come with your frame.

If you are also interested in the carbon bike wheels, please click the MTB wheels here or contact us for more details.

SPECIFICATION

ProX Carbon XC Frame Full Suspension MTB Frameset

 Frame:  29er cross country XC mountain Bike Frame
 Material:  High modulus Toray T700 carbon fiber
 Size:  16" 18" 20"
 Front Travel:  100-120mm
 Rear Travel:  100-120mm
 Headtube:  Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB)
 Weight(+/-50g):  1950g/size 18
 Seatpost Diameter:  31.6mm(34.9 clamp)- droper seat post insert length  16-130mm, 18’‘-170mm, 20’‘--210mm
 Bottom Bracket:  Press Fit BB92
 Max Tire Clearance:  27.5er*2.8'' or 29er*2.3''
 Max Compatible Chainring:  34T
 Chainline:  52mm
 Brake Type:  Post mount disc brake 160mm
 Rear Shock:

 165*45mm trunnion mount-120mm rear travel(hardware upper M8*22.2mm, bottom M10*54mm)

 165*38mm standard mount-100mm rear travel(hardware upper M8*22.2mm, bottom M8*22.2mm)

 Fork Offset:  51mm offset fork, M15*110mm boost recommeded
 Dropout:  12*148mm boost thru axle
 Test Standard:  ISO4210
 Warranty:  2-year

TECHNOLOGY

Geometry

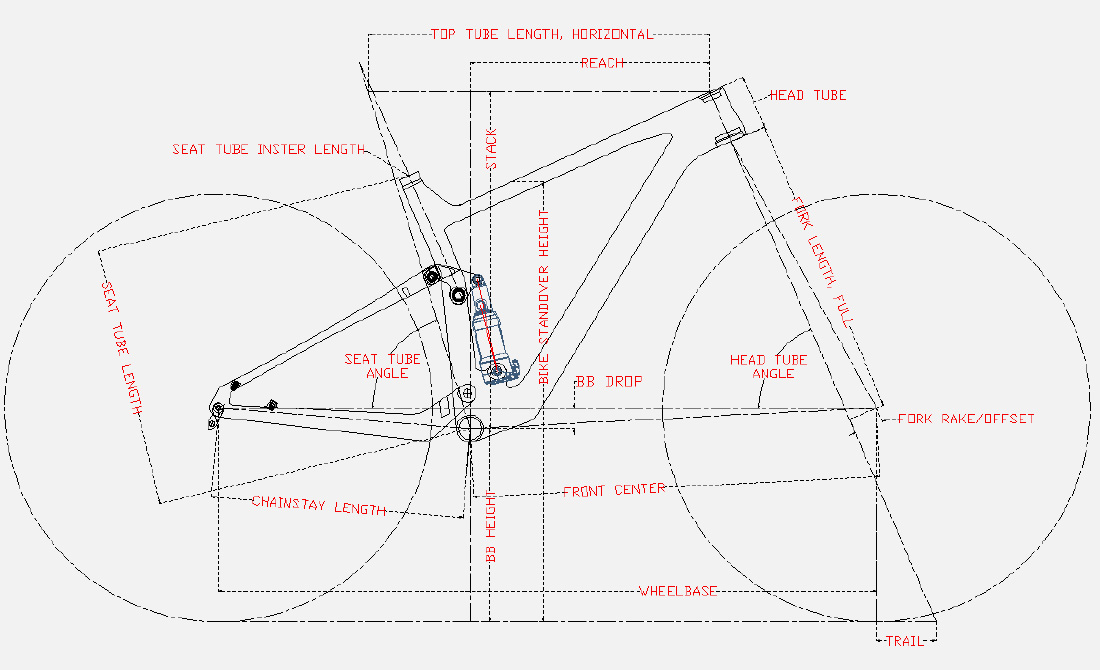

SIZE 16'' 18'' 20'' PX FS917 Geometry
BODY HEIGHT (Reference)
156 - 164cm
165 - 177cm
178 - 189cm

SEATPOST INSERT LENGTH 130mm 170mm 210mm
REACH 391mm 421.2mm 448mm
TOP TUBE LENGTH, HORIZONTAL 570mm 600mm 630mm
STACK 592mm 592.3mm 601.4mm
WHEELBASE 1126mm 1155.5mm 1186mm
CHAINSTAY LENGTH 440mm 440mm 440mm
FRONT CENTER 685mm 714.6mm 745mm
BB DROP 36mm 36mm 36mm
BB HEIGHT 339mm 339mm 339mm
SEAT TUBE ANGLE 73° 73° 73°
HEAD TUBE ANGLE 67° 67° 67°
SEAT TUBE LENGTH 410mm 457mm 500mm
HEAD TUBE LENGTH 95mm 95mm 105mm
BIKE STANDOVER HEIGH(29“*2.35”) 750.8mm 773.5mm 786.7mm
FORK RAKE/OFFSET 51mm 51mm 51mm
FORK LENGTH, FULL 531mm 531mm 531mm
TRAIL 105mm 105mm 105mm

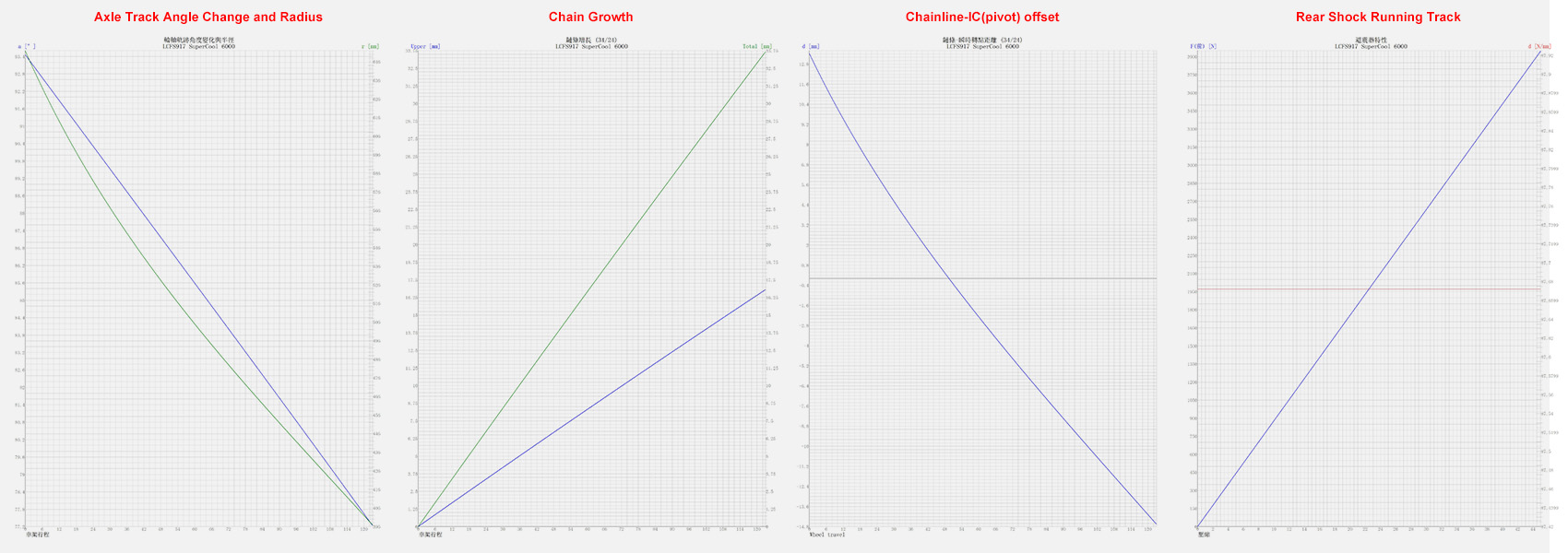

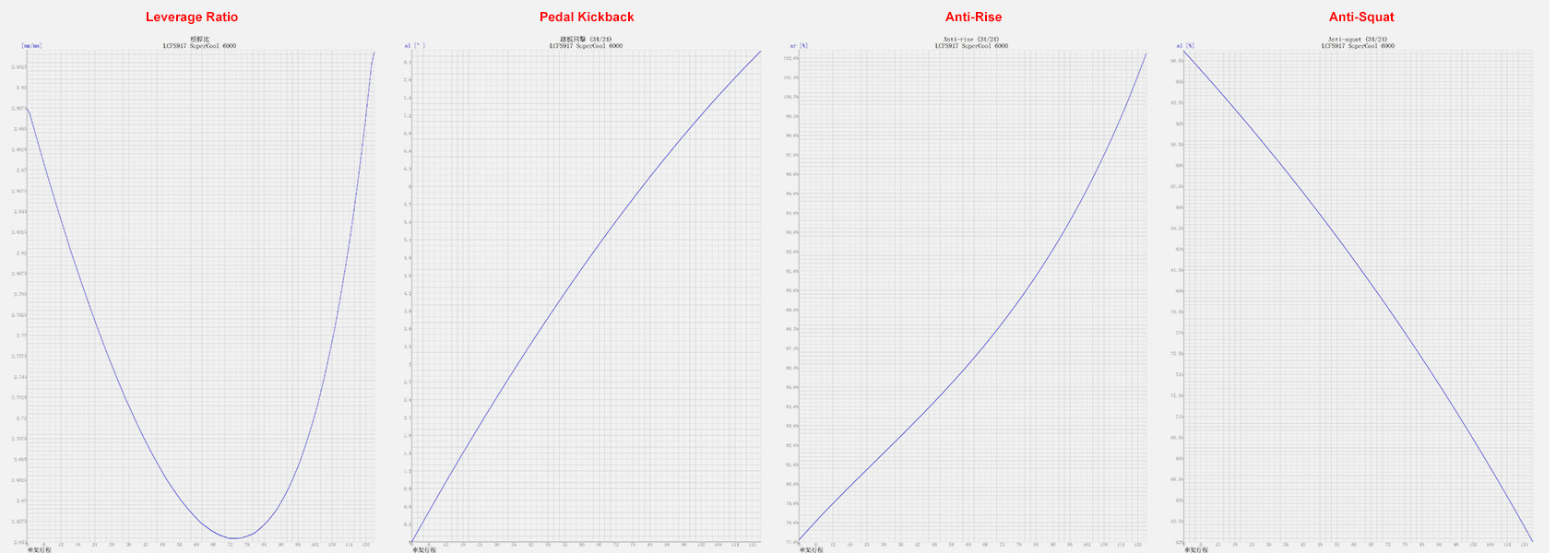

Suspension System Simulation Data

917 Suspension System Simulation Data bike frame
Suspension System Simulation Data bike frame 917

If you'd like high resolution pictures of suspension data, welcome to contact us.

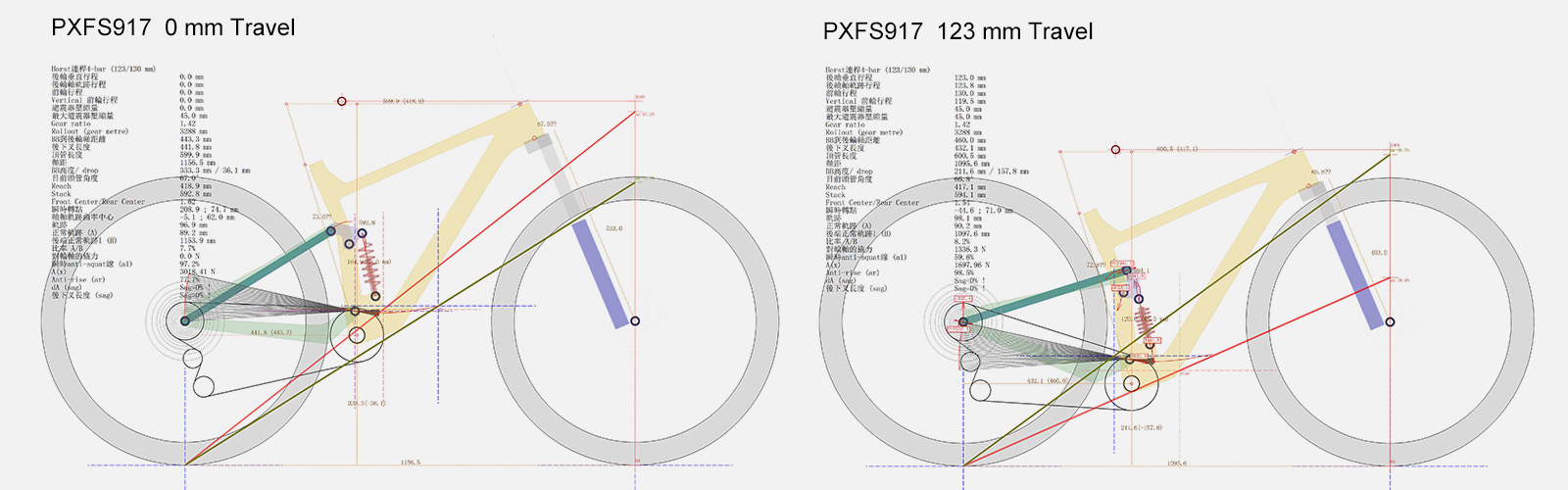

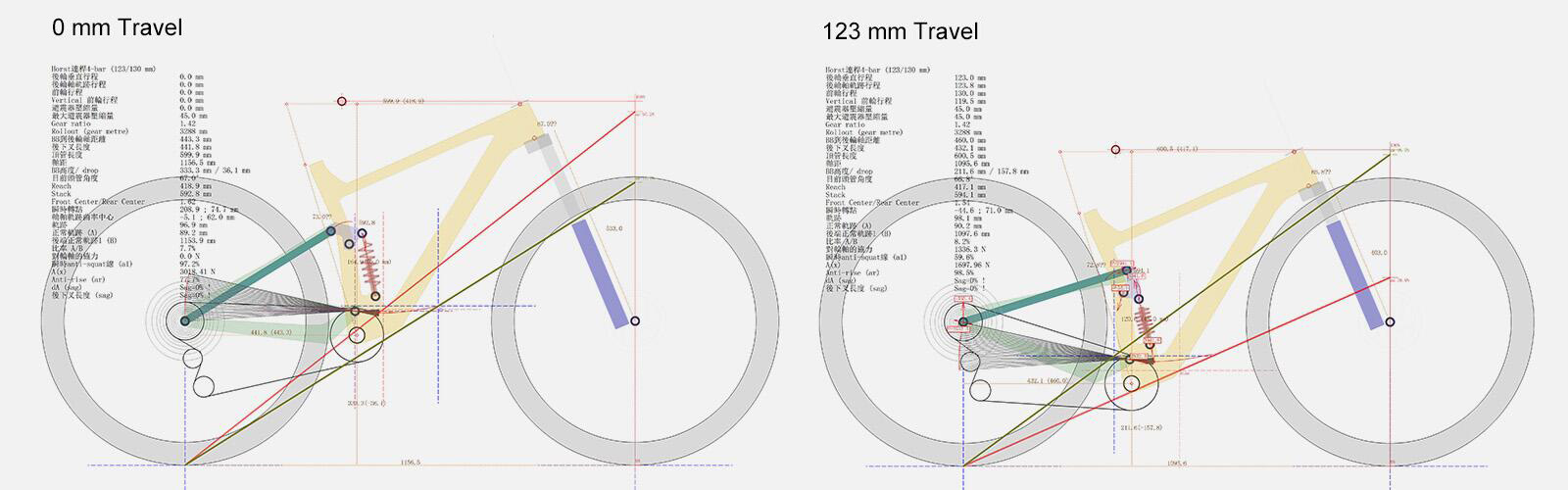

PXFS917 Frame Suspension Simulation From 0~123mm Travel

PXFS917 Frame Suspension Simulation


Vibration Test

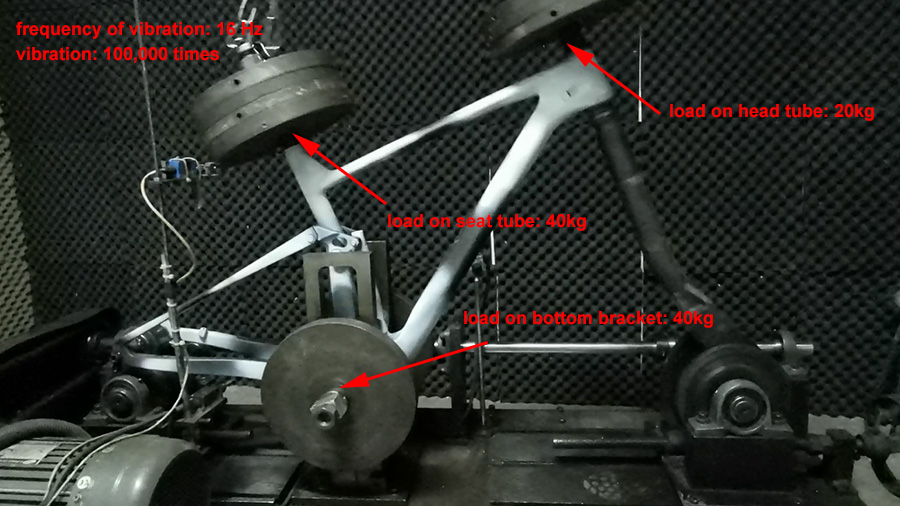

Vibration testing simulates the rigorous riding vibration condition for 100,000 times. It ensures the function of the frame and long-lasting as well.
PX FS917 vibration test
VIDEO
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
