• High end DT Swiss 350 fat hubs, Ratchet 36T
• 65/75/85/90mm width fatbike carbon rims
• Shimano 11-12s and Sram 11/12s XD freehub
• Pillar 1423 and Pillar 1420 spokes optional
• High quality fat bike wheels, 2-year warranty
Item NO.:
350PFPayment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD/3K/12K(Customized Decal Acceptable)

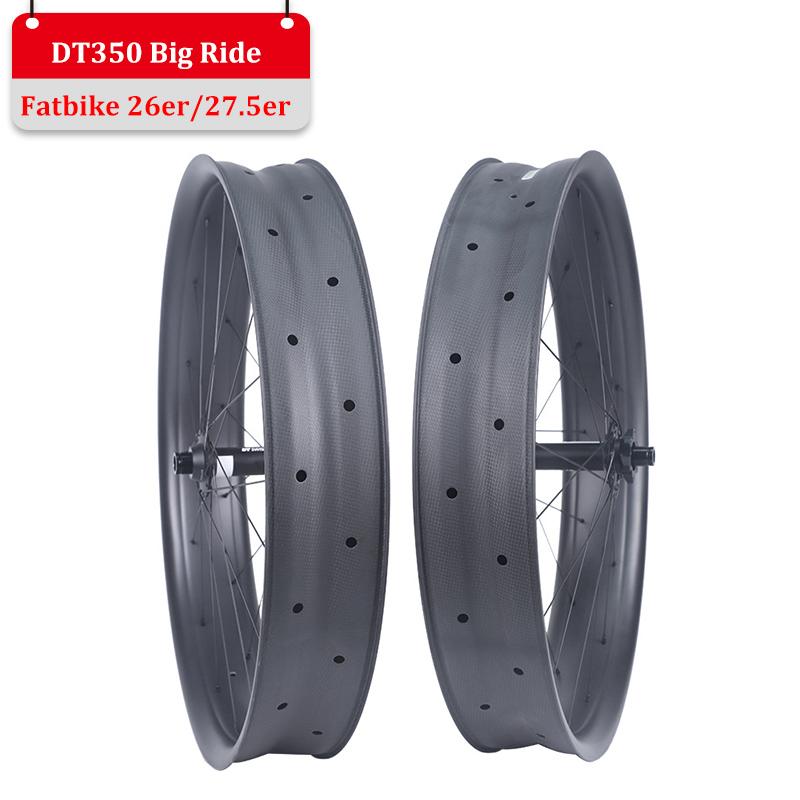

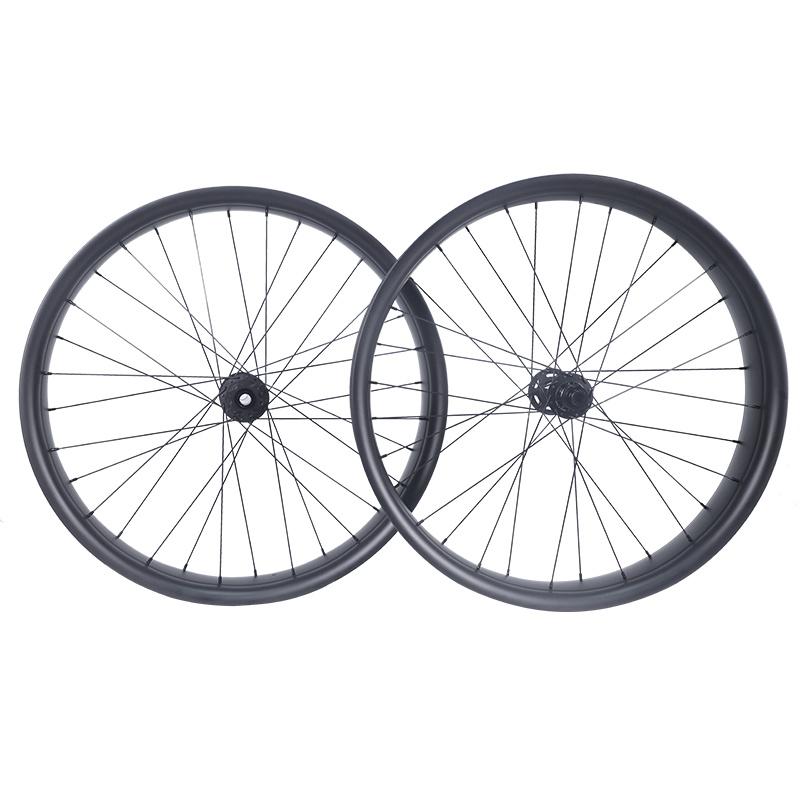

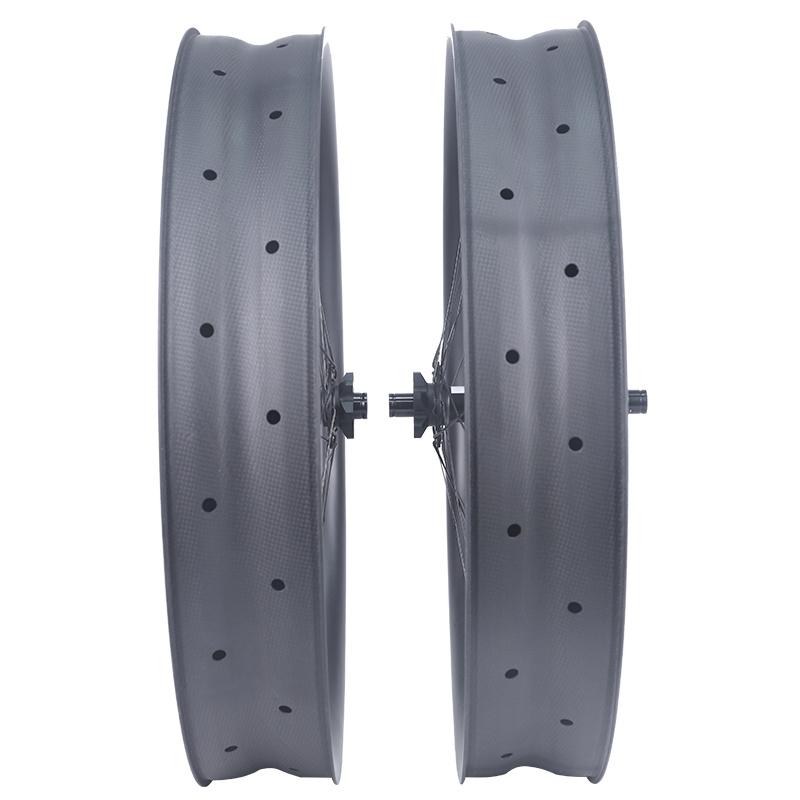

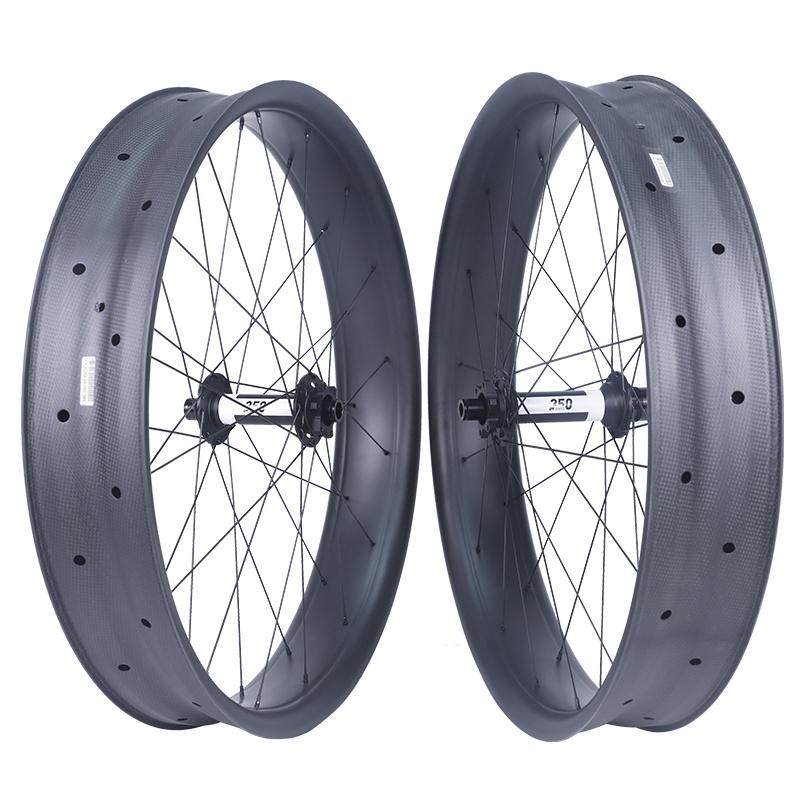

ProX DT350 Fat Bike Carbon Wheels - High End Carbon Fatbike Wheelset For Racing
The new DT Swiss 350s fat hubs are developed to be reliable and simplified. The reliability is achieved by the simultaneous engagement of the ratchets which result in larger contact area.
The simplified end-caps design makes it possible for tool-free disassembly and easy maintenance.
Besides, the new DT350 fat bike hubs have been upgraded with Ratchet System 36 system. 36 Teeth ratchet improves power transfer efficiency, make it stabler and faster.
Carbon fatbike wheels built with DT350 hubs are of great performance and reasonable price for racing.
For DT350 fatbike carbon wheels, ProX provides fatbike carbon rims 65/85/90mm width option for 26er fat bikes (or snow bikes) and 75mm width for 27.5er fat bikes (or snow bikes).
Generally, 65-75mm width fat bike carbon rims are more suitable for riders who prefer a relatively lighter fatbike wheelset and typically use 3.8’’-4.0’’ fat tires.
85-90mm width carbon fat bike rims are more suitable for riders who prefer to use big fat tires around 4.5-4.9’’ which is heavier but stabler in wet and slippery road condition.
About spokes, we provide two options, Pillar 1423 (about 6.5g/pc) and Pillar 1420 (about 4.5g/pc).
With so many options of rims and spokes, there is always one for you.
DT350 Fatbike Carbon Wheelset Specification:
-Hub: DT350 fat hub (front 15*150mm TA/rear 12*197mm TA), Ratchet System 36T.
-Disc brake type: 6-bolt
-Cassette Body: Shimano 11s HG, 12s MicroSpline, Sram 11/12s XD optional.
-Type: J-bend
-Spoke Hole Count: front 32H/rear 32H
-Tire Type:Clincher/tubeless ready
-Spoke: Pillar 1423/Pillar 1420
-Spoke Tension(recommended): ≤135kgf
-Tire Pressure: 25psi/1.7bar
-Warranty Year: 2 years
Model | Rim | Terrian | Outer Width | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|
350FAT-65S-1423 | PF26-65S | fat bike/snow bike/beach bike | 65mm | DT350 Big Ride | 15*150mm | 12*197mm | Pillar 1423 | 26*3.5''-4.9'' | 1946g |
350FAT-85S-1423 | PF26-85S | fat bike/snow bike/beach bike | 85mm | DT350 Big Ride | 15*150mm | 12*197mm | Pillar 1423 | 26*4.0''-4.9'' | 2226g |
350FAT-90S-1423 | PF26-90S | fat bike/snow bike/beach bike | 90mm | DT350 Big Ride | 15*150mm | 12*197mm | Pillar 1423 | 26*4.0''-4.9'' | 2286g |
350FAT-75S-1423 | PF27.5-75S | fat bike/snow bike/beach bike | 75mm | DT350 Big Ride | 15*150mm | 12*197mm | Pillar 1423 | 650b*3.8''-4.9'' | 2286g |
350FAT-65S-1420 | PF26-65S | fat bike/snow bike/beach bike | 65mm | DT350 Big Ride | 15*150mm | 12*197mm | Pillar 1420 | 26*3.5''-4.9'' | 1825g |
350FAT-85S-1420 | PF26-85S | fat bike/snow bike/beach bike | 85mm | DT350 Big Ride | 15*150mm | 12*197mm | Pillar 1420 | 26*4.0''-4.9'' | 2105g |
350FAT-90S-1420 | PF26-90S | fat bike/snow bike/beach bike | 90mm | DT350 Big Ride | 15*150mm | 12*197mm | Pillar 1420 | 26*4.0''-4.9'' | 2165g |
350FAT-75S-1420 | PF27.5-75S | fat bike/snow bike/beach bike | 75mm | DT350 Big Ride | 15*150mm | 12*197mm | Pillar 1420 | 650b*3.8''-4.9'' | 2165g |
ProX 26er and 27.5er (650b) Fat Bike Carbon Rims (Tubeless Ready)
Rims | PF26-65S | PF26-85S | PF26-90S | PF27.5-75S |
Max Weight Limit | 120kg/265lb | 120kg/265lb | 120kg/265lb | 120kg/265lb |
Material | T700 | T700 | T700 | T700 |

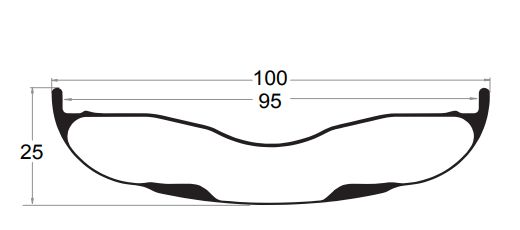

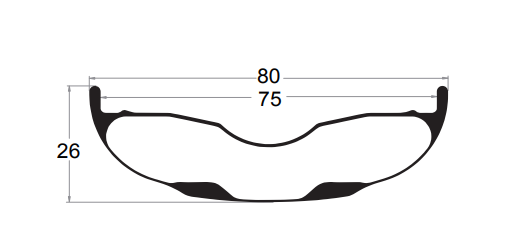

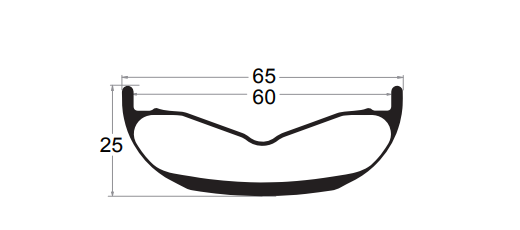

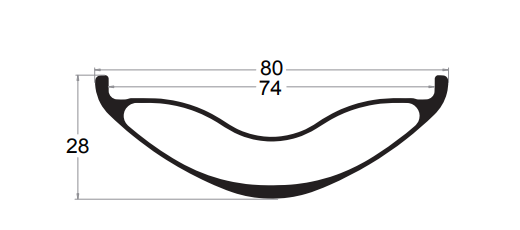

Sectional Drawing |
|
Carbon Fiber Material Premium Toray T700 carbon fiber are used in our fat bike carbon rims. Combining with stable resin system to make consistent quality and light weight fatbike carbon rims.
|
|

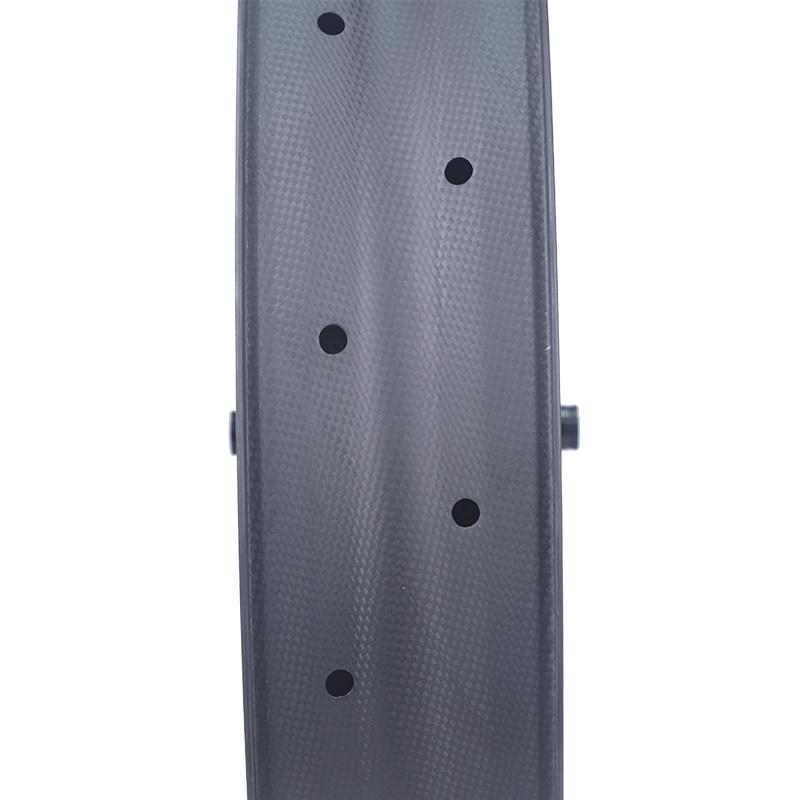

Double Wall Structure All our fat bike carbon rims are designed with double wall structure. Considering fatbike rims are much wider than regular rims, double wall is necessary to guarantee the strength and stiffness.
|
|
Hookless Design Compared to bead hook rims, the sidewalls of hookless rims are thicker and stronger, providing better impact resistance. Straight bead provides more stance for tire. Tires will not be squeezed in bead as it was. Thus, the tire/rim engagement is more stable, more difficult to be blown out under strong impact, which is important for carbon fat bike rims.
|
|
Tubeless Ready
Tubeless tire is widely used in fatbike wheels thanks to its better traction, lower rolling resistance and better riding comfort. All our carbon fat bike rims are tubeless ready (also fit normal tube tires). Optimized rim groove design provides easy tire mounting, dismounting, as well as air inflation. |
|
Hand Built All our carbon wheelsets are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
|

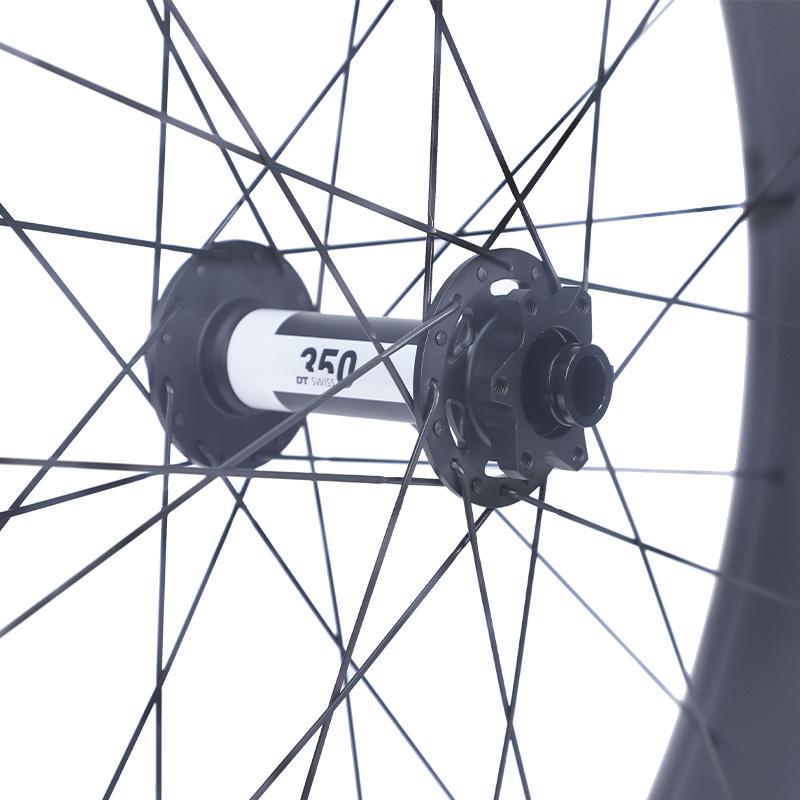

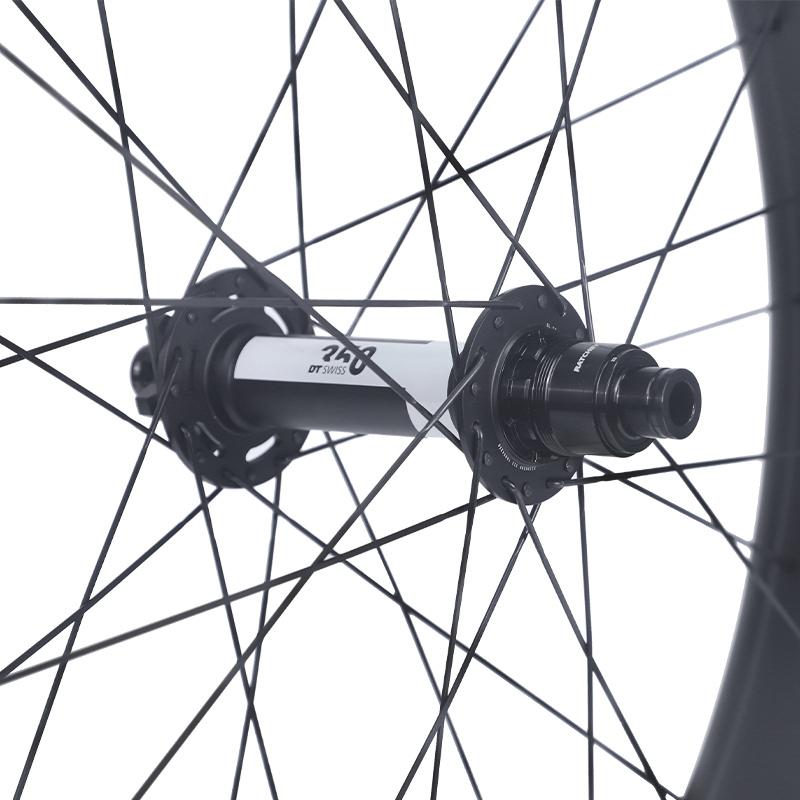

DT350 Big Ride Hubs DT Swiss 350 Big Ride fatbike hubs are used. Carbon fatbike wheels with great performance and competitive price. With DT Swiss patent Ratchet freehub systems, efficient in power transmission, lower rolling resistance. Front M15*150, Rear M12*197 hub spacing, with both 12-speed (Sram XD, Shimano MicroSpline) and 11-speed freehub optional.
|
|
Pillar Spokes The popular Pillar PSR AERO 1423 spokes are used (lighter weight Pillar 1420 spokes are also optional). Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%. Perfect aero shape, high elasticity and low drag coefficient.
|
|
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page. |
