• 28mm and 25mm width tubular rims optional
• High cost performance DT Swiss 350s disc hubs
• Shimano/Sram 11-12 speed freehub available
• Pillar 1423 spokes, aero and strong
• Compatible for 700*23C-35C tubular tire
Item NO.:
350DB Tubular WheelsPayment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD/3K/12K(Customized Decal Acceptable)ProX DT350 Disc Brake Carbon Tubular Wheels - Mid-to-high End Carbon Wheels For Training and Racing

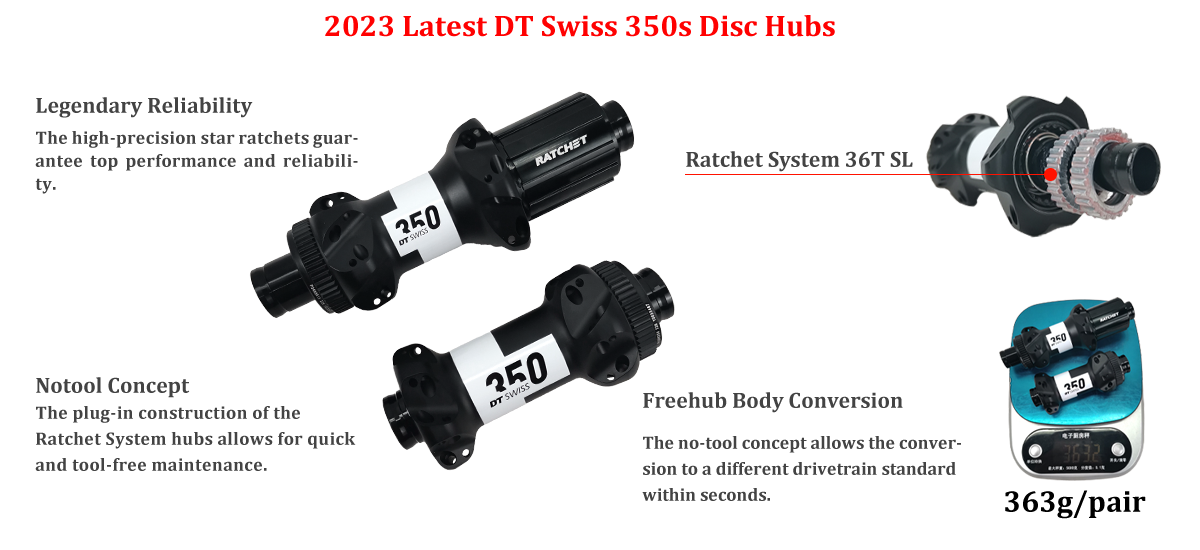

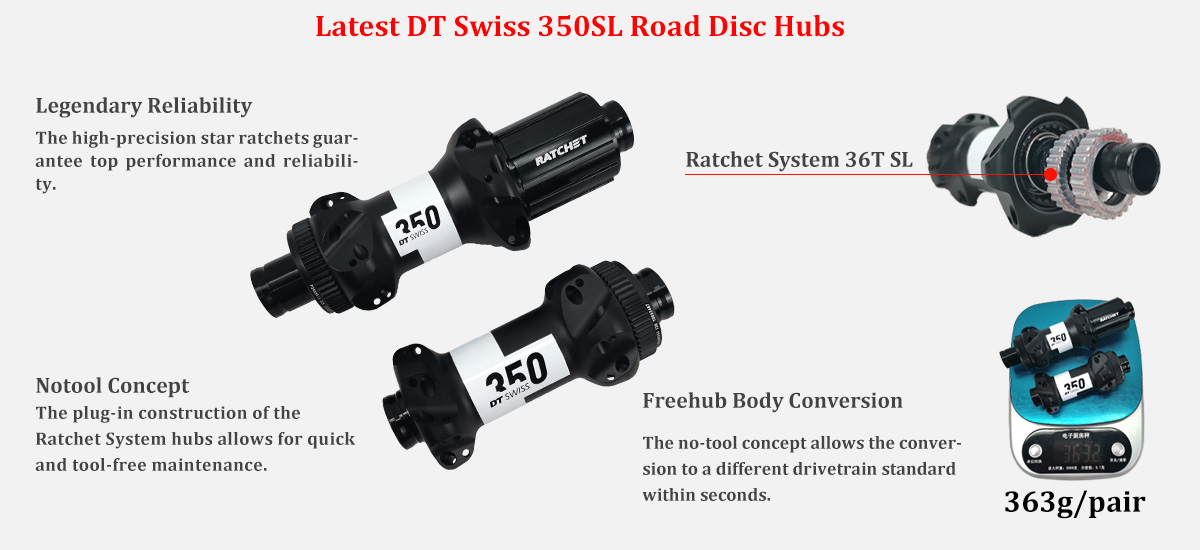

DT Swiss 350s road hubs are developed to be reliable and simplified. The reliability is achieved by the simultaneous engagement of the ratchets which result in larger contact area.
The simplified end-caps design makes it possible for tool-free disassembly and easy maintenance. The cost of DT350 hubs are much lower than DT240 and DT180 hubs.
Carbon road wheels built with DT350 hubs are of great performance and affordable price for training or amateur racing.
ProX provides two width option for our DT350 disc brake carbon tubular wheels. That is, 28mm width carbon tubular rims, and 25mm width carbon rims tubular.

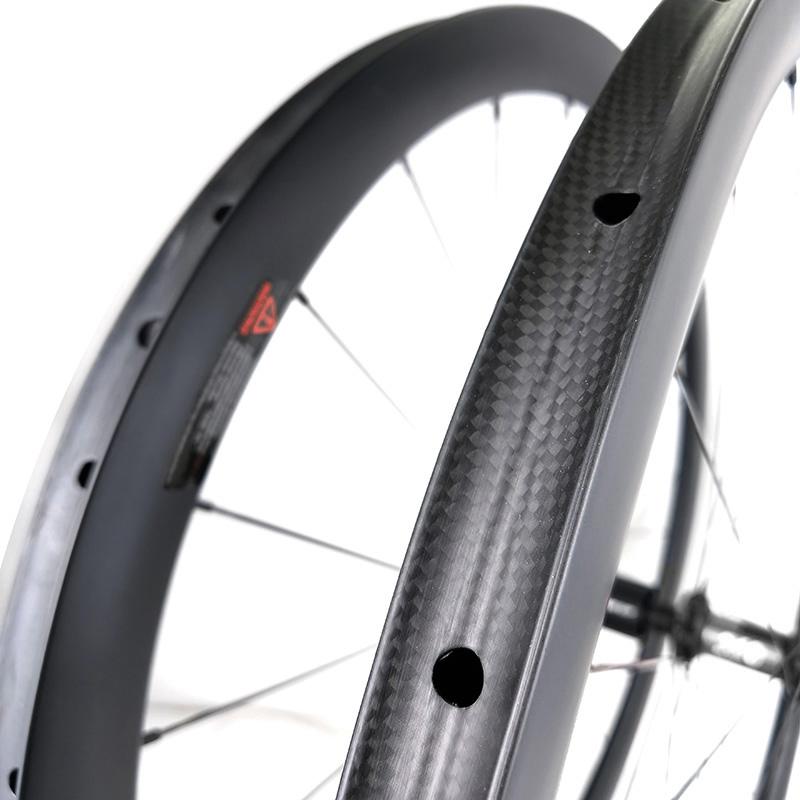

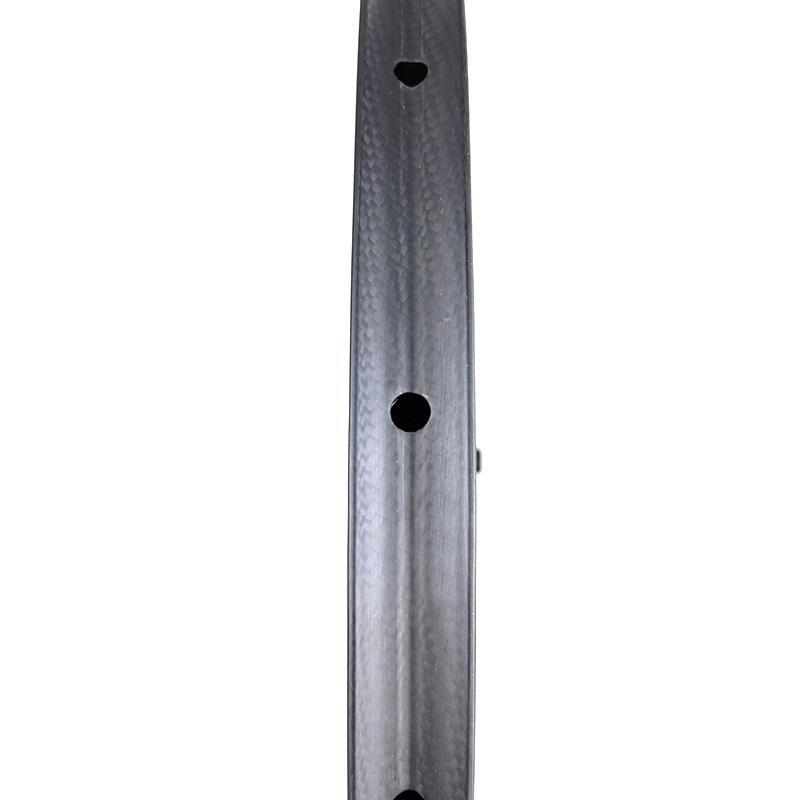

Both our 28mm and 25mm disc brake tubular carbon rims are made of Toray T700+T800 carbon fiber, with SL (super light) weight.
The 28mm width disc brake rim series (model PRD28-T) is compatible for 700*25C-35C tubular tire, with height 22/33/38/44/50/55mm optional.
The 25mm width disc brake rim series (model PRD25-T) is compatible for 700*23C-33C tubular tire, with height 38/45/50/60/80mm optional.
With so many options available, you can always choose the one with width and height you prefer.
ProX DT350 Disc Brake Carbon Tubular Wheelset Specification:
-Hub:DT350 Road disc(front 12*100mm TA/rear 12*142mm TA)
-Disc brake type: center lock
-Cassette Body: Shimano 11/12s or Sram 12s XDR available
-Freehub System: Ratchet System 36
-Type: straight pull
-Spoke Hole Count: front 24H/rear 24H
-Tire Type: Tubular
-Spoke: Pillar 1423 spoke
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years
DT350 Disc Brake Tubular Carbon Wheelset Built With Super Light Tubular Carbon Rims (28mm width)
Model | Rim | Depth | Outer Width | Tire Type | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|
350DB-PRD28-22T-1423 | PRD28-22T-SL | 22mm | 28mm | Tubular | DT350 Road disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1299g |
350DB-PRD28-33T-1423 | PRD28-33T-SL | 33mm | 28mm | Tubular | DT350 Road disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1339g |
350DB-PRD28-38T-1423 | PRD28-38T-SL | 38mm | 28mm | Tubular | DT350 Road disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1359g |
350DB-PRD28-44T-1423 | PRD28-44T-SL | 44mm | 28mm | Tubular | DT350 Road disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1379g |
350DB-PRD28-50T-1423 | PRD28-50T-SL | 50mm | 28mm | Tubular | DT350 Road disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1419g |
350DB-PRD28-55T-1423 | PRD28-55T-SL | 55mm | 28mm | Tubular | DT350 Road disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-35C | 1459g |
700C Disc Brake Super Light Carbon Tubular Rims PRD28-SL (28mm width)
Rims | PRD28-22T-SL | PRD28-33T-SL | PRD28-38T-SL | PRD28-44T-SL | PRD28-50T-SL | PRD28-55T-SL |
Max Weight Limit | 90kg/198lb | 105kg/230lb | 105kg/230lb | 110kg/240lb | 115kg/250lb | 115kg/250lb |
Material | T700+T800 | T700+T800 | T700+T800 | T700+T800 | T700+T800 | T700+T800 |
Sectional Drawing |
DT350 Disc Brake Tubular Carbon Wheelset Built With Super Light Tubular Carbon Rims (25mm width)
Model
Rim
Depth
Outer Width
Tire Type
Hub
Front Size
Rear Size
Spoke
350DB-PRD25-38T-1423
PRD25-38T-SL
38mm
25mm
Tubular
DT350 Road disc
12*100mm
12*142mm
Pillar 1423
700*23C-33C
1339g
350DB-PRD25-45T-1423
PRD25-45T-SL
45mm
25mm
Tubular
DT350 Road disc
12*100mm
12*142mm
Pillar 1423
700*23C-33C
1359g
350DB-PRD25-50T-1423
PRD25-50T-SL
50mm
25mm
Tubular
DT350 Road disc
12*100mm
12*142mm
Pillar 1423
700*23C-33C
1399g
350DB-PRD25-60T-1423
PRD25-60T-SL
60mm
25mm
Tubular
DT350 Road disc
12*100mm
12*142mm
Pillar 1423
700*23C-33C
1559g
350DB-PRD25-80T-1423
PRD25-80T-SL
80mm
25mm
Tubular
DT350 Road disc
12*100mm
12*142mm
Pillar 1423
700*23C-33C
1759g
700C Disc Brake Super Light Carbon Tubular Rims PRD25-SL (25mm width)
Rims
PRD25-38T-SL
PRD25-45T-SL
PRD25-50T-SL
PRD25-60T-SL
PRD25-80T-SL
Max Weight Limit
105kg/230lb
105kg/230lb
110kg/240lb
115kg/250lb
115kg/250lb
Material
T700+T800
T700+T800
T700+T800
T700+T800
T700+T800
Sectional Drawing
|

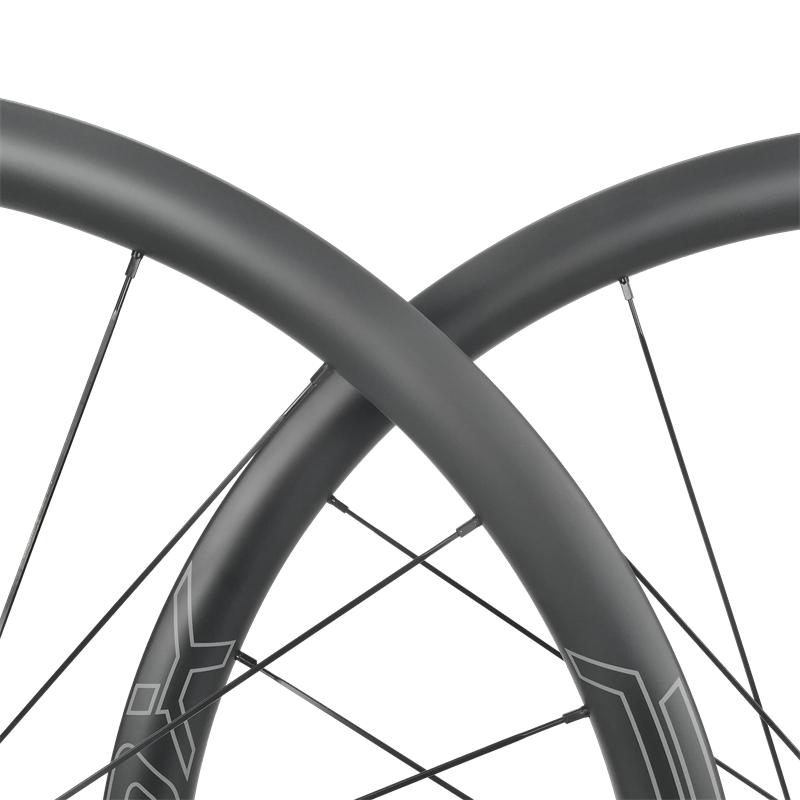

Carbon Fiber Material Premium Toray T700 + T800 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight carbon tubular rims.
|
|
Light Weight By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness. |
|

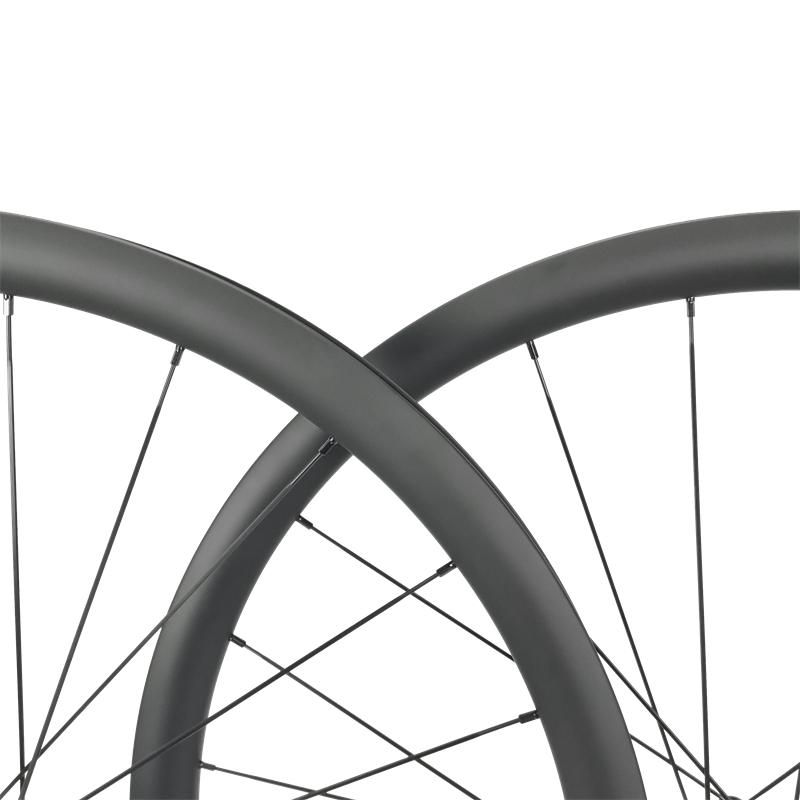

Aero U Shape Wide U Shape carbon road rims are more aerodynamic than traditional V Shape carbon rims road bike. It is also of better stiffness and strength. |
|
Road Disc Brake Road disc brake provides more sensitive and precise braking performance than rim brake. Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking. Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight. |
|
Hand Built All our carbon bicycle wheels are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
|

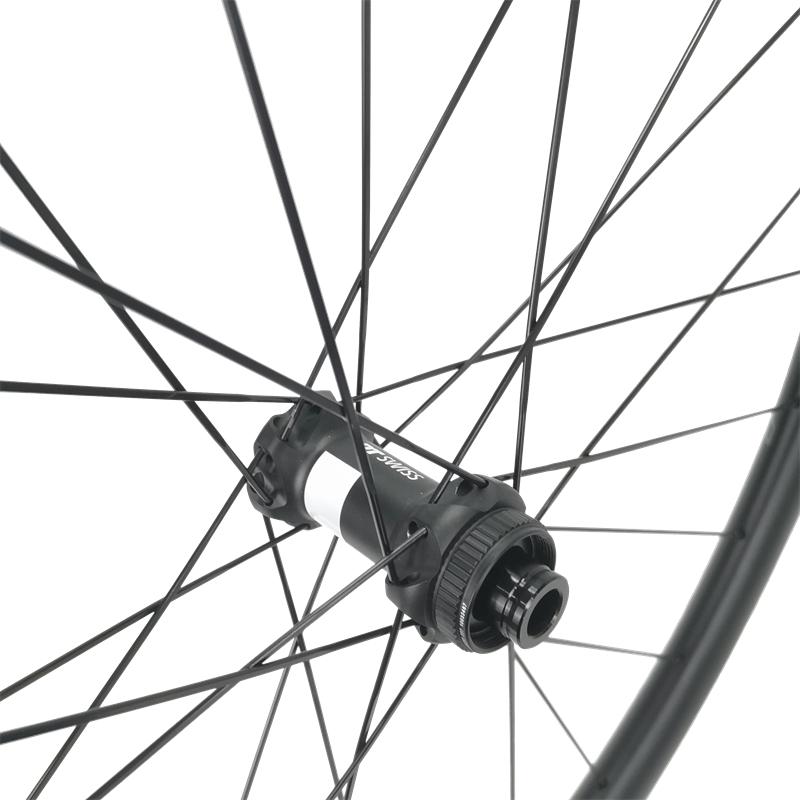

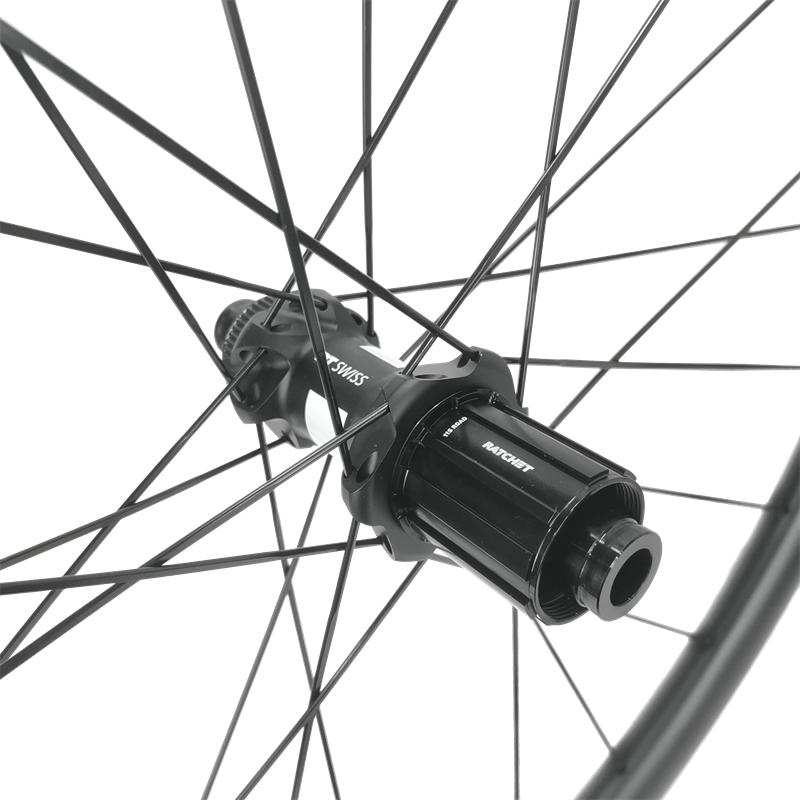

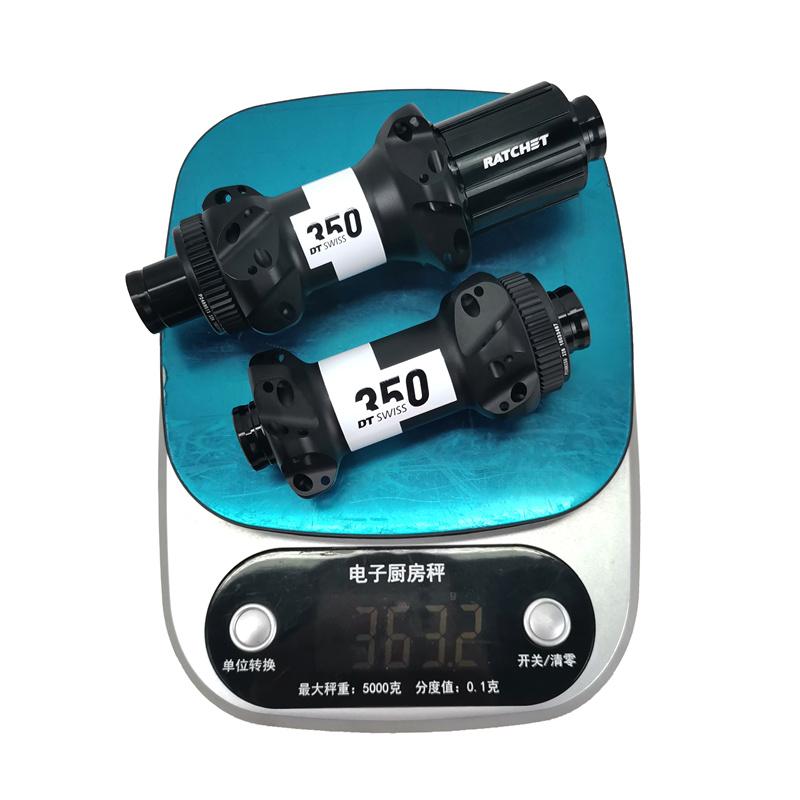

DT350 Road Hubs DT Swiss 350 road disc brake hubs are used. Disc brake carbon road wheels with great performance and competitive price. DT Swiss Ratchet System, reliable and stable. Straight pull spoke system, direct power transmission. 12*100/12*142 thru-axle, with Shimano 11-speed, Sram 12-speed XDR freehub optional.
|
|
Pillar Spokes The popular Pillar PSR AERO 1423 spokes are used. Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%. Perfect aero shape, high elasticity and low drag coefficient.
|
|
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page. |
