Road Wheels Disc Brake

/

DT 350DB Carbon Wheels

/ProX Carbon Road Wheels Disc Brake DT350 Tubeless Road Wheelset

carbon road wheels disc
carbon road wheels disc carbon road wheels disc carbon road wheels disc carbon road wheels disc carbon road wheels disc carbon road wheels disc carbon road wheels disc carbon road wheels disc

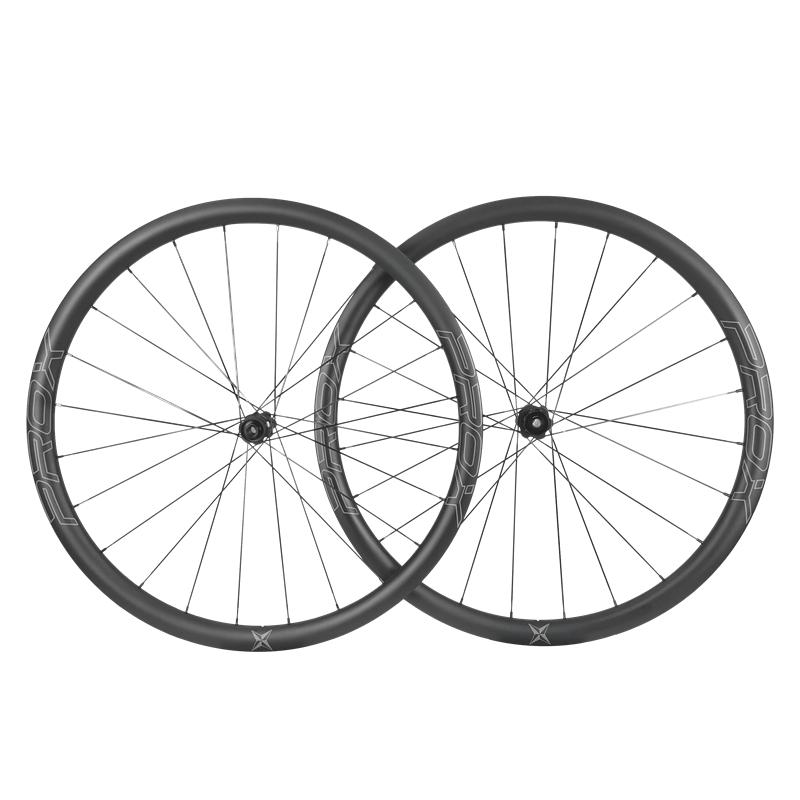

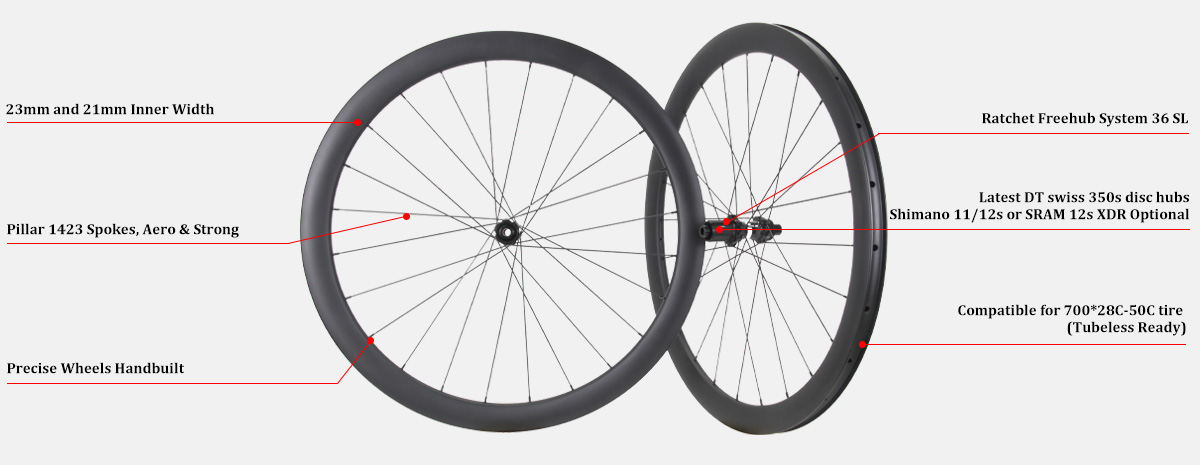

ProX Carbon Road Wheels Disc Brake DT350 Tubeless Road Wheelset

• 28mm and 25mm width carbon rims optional

• High cost performance DT Swiss 350s disc hubs

• Shimano/Sram 11-12 speed freehub available

• Pillar 1423 spokes, aero and strong

• Compatible for 700*25C-45C tire (tubeless ready)

  • Item NO.:

    350DB Clincher Wheel

  • Payment:

    Paypal, Bank Transfer

  • Origin:

    China

  • Color:

    UD/3K/12K(Customized Decal Acceptable)
Inquiry now
DESCRIPTION

ProX DT350 Disc Brake Road Wheels - Mid-to-high End Carbon Wheels For Training and Racing

DT Swiss 350s road hubs are developed to be reliable and simplified. The reliability is achieved by the simultaneous engagement of the ratchets which result in larger contact area.

The simplified end-caps design makes it possible for tool-free disassembly and easy maintenance. The cost of DT350 hubs are much lower than DT240 and DT180 hubs.

Carbon road wheels built with DT350 hubs are of great performance and affordable price for training or amateur racing.

Disc Brake Road Wheels with latest DT swiss 350s hubs

dt swiss road wheels

ProX provides two width option for our DT350 disc brake carbon road wheels. That is, 28mm width carbon clincher rims, and 25mm width carbon rims clincher.

The 28mm width rim series (model PRD28) is with 28mm outer (21mm inner) width.

For such wide road rims, the optimized aerodynamics tire size is 700*28C. If you plan to use 28C (or wider) tire, PRD28 rim series is recommended.

The 25mm width rim series (model PRD25) is with 25mm outer (18mm inner) width.

For such wide road rims, the optimized aerodynamics tire size is 700*25C. If you plan to use 25C tire, PRD25 rim series is recommended.

SPECIFICATION

ProX Mid-to-high End DT350 Disc Brake Carbon Road Wheelset Specification:
-Hub:DT350 Road disc(front 12*100mm TA/rear 12*142mm TA)
-Disc brake type: center lock
-Cassette Body: Shimano 11/12s or Sram 12s XDR optional

-Freehub System: Ratchet System 36
-Type: straight pull
-Spoke Hole Count: front 24H/rear 24H
-Tire Type:Clincher/tubeless ready
-Spoke: Pillar 1423 spoke
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


DT350 Disc Brake Road Carbon Wheels Built With PRD28 Carbon Rims (28mm width)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
350DB-PRD28-22C-1423 PRD28-22C 22mm 28mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1459g
350DB-PRD28-33C-1423 PRD28-33C 33mm 28mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1499g
350DB-PRD28-38C-1423 PRD28-38C 38mm 28mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1519g
350DB-PRD28-44C-1423 PRD28-44C 44mm 28mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1559g
350DB-PRD28-50C-1423 PRD28-50C 50mm 28mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1619g
350DB-PRD28-55C-1423 PRD28-55C 55mm 28mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1659g

700C Road Disc Brake Carbon Clincher Rims PRD28 (28mm width)

Rims PRD28-22C PRD28-33C
 PRD28-38C
 PRD28-44C
 PRD28-50C
 PRD28-55C
Max Weight Limit 90kg/198lb
 105kg/230lb
 105kg/230lb
 110kg/240lb
 115kg/250lb
 115kg/250lb
Material T700+T800
 T700+T800
 T700+T800
 T700+T800
 T700+T800
 T700+T800

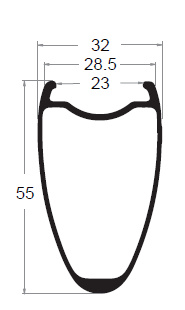

Sectional Drawing




carbon disc rim 55mm


DT350 Disc Brake Road Carbon Wheels Built With PRD25 Carbon Rims (25mm width)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
350DB-PRD25-30C-1423 PRD25-30C 30mm 25mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 1459g
350DB-PRD25-38C-1423 PRD25-38C 38mm 25mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 1479g
350DB-PRD25-45C-1423 PRD25-45C 45mm 25mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 1539g
350DB-PRD25-50C-1423 PRD25-50C 50mm 25mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 1599g
350DB-PRD25-60C-1423 PRD25-60C 60mm 25mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 1739g
350DB-PRD25-80C-1423 PRD25-80C 80mm 25mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 2019g


700C Road Disc Brake Carbon Clincher Rims PRD25 (25mm width)

Rims PRD25-30C PRD25-38C PRD25-45C PRD25-50C PRD25-60C PRD25-80C
Max Weight Limit 100kg/220lb 110kg/240lb 110kg/240lb 115kg/250lb 115kg/250lb 120kg/265lb
Material T700 T700 T700 T700 T700 T700
Sectional Drawing road disc carbon rim 30mm height road disc carbon rim 38mm height road disc carbon rim 45mm height road disc carbon rim 50mm height road disc carbon rim 60mm height road disc carbon rim 80mm height

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight carbon fiber bicycle rims.

Light Weight

Light Weight

By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created.

Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement.

So, light weight is achieved without compromise in strength or stiffness.

Narrow Inner Width

Narrow Inner Width

Relatively narrow 18mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x25C and 700x28C are recommended (also fit other wider tires).

Aero U Shape

Aero U Shape

Wide U Shape carbon road rims are more aerodynamic than traditional V Shape carbon rims road bike.

It is also of better stiffness and strength.

Tubeless Ready

Tubeless Ready

Tubeless tire is getting popular in road bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Road Disc Brake

Road Disc Brake

Road disc brake provides more sensitive and precise braking performance than rim brake.

Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

Hand Built

Hand Built

All our carbon bicycle wheels are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

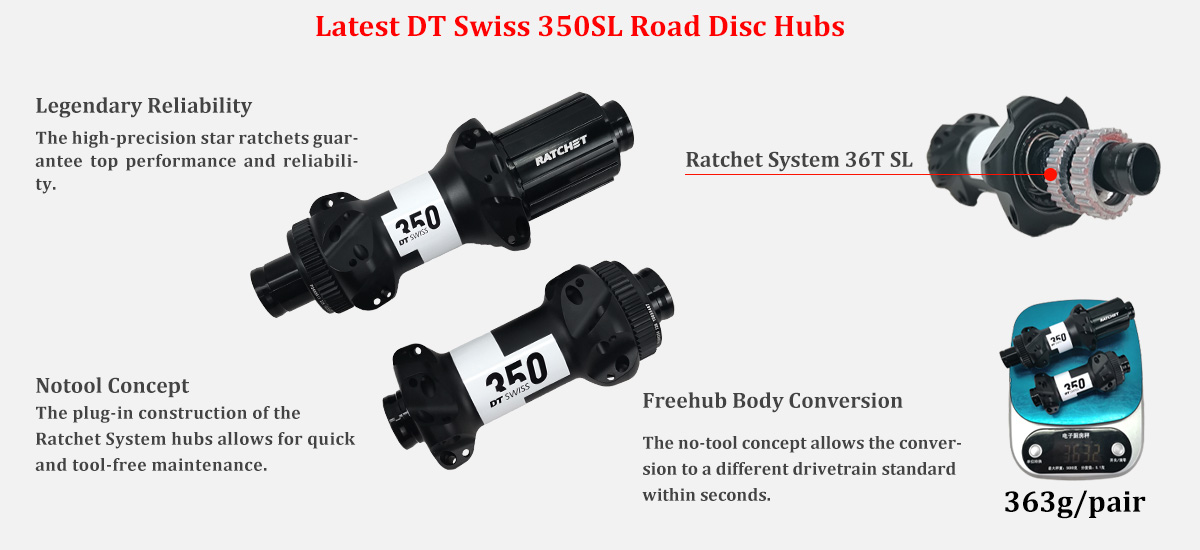

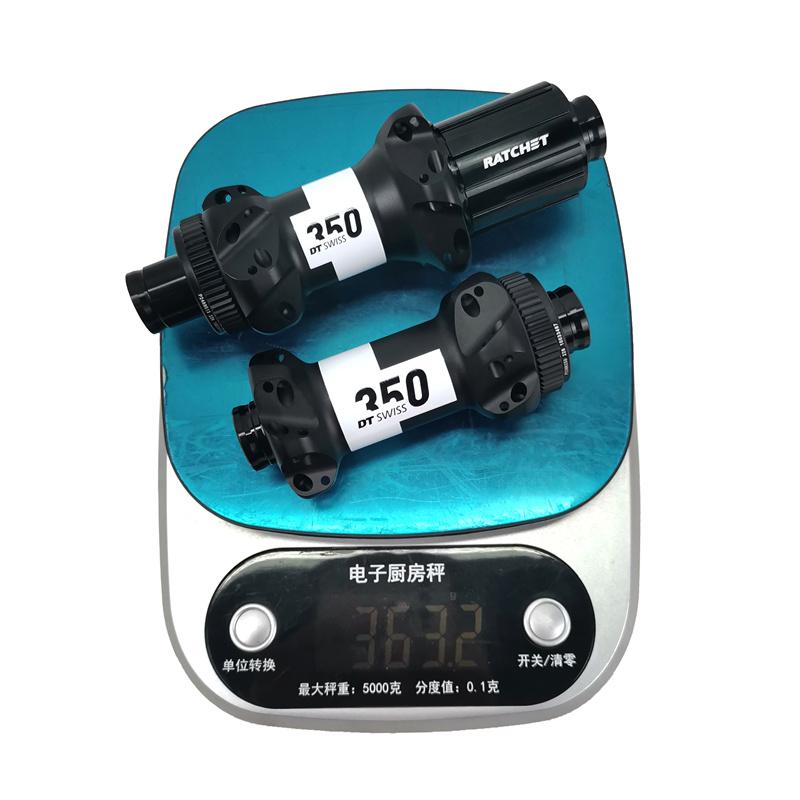

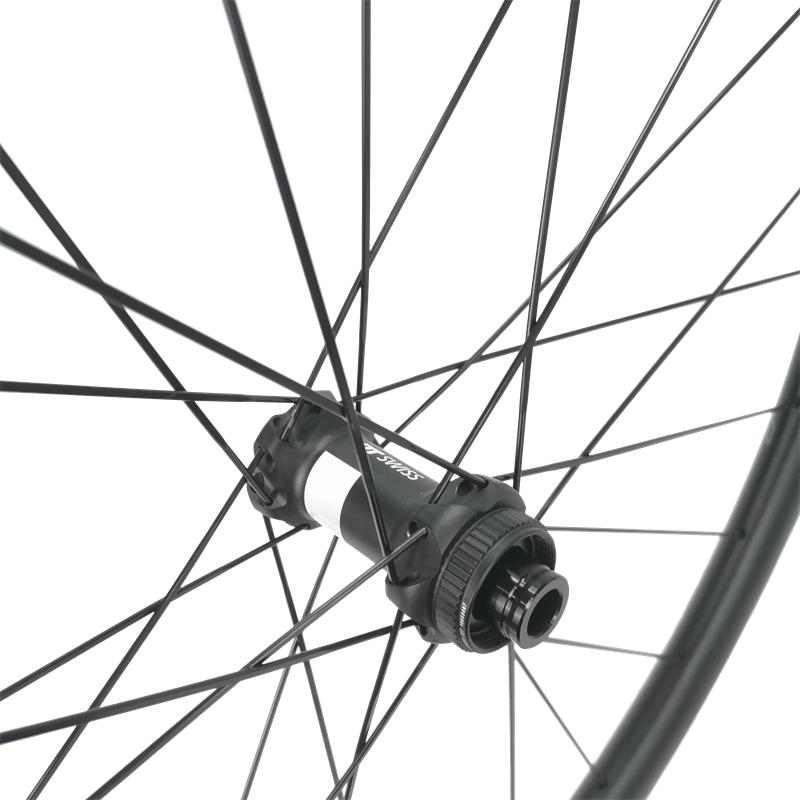

DT350 Road Hubs

DT350 Road Hubs

DT Swiss 350 road disc brake hubs are used. Disc brake carbon road wheels with great performance and competitive price.

DT Swiss Ratchet System, reliable and stable. Straight pull spoke system, direct power transmission.

12*100/12*142 thru-axle, with Shimano 11-speed, Sram 12-speed XDR freehub optional.

Pillar Spokes

Pillar Spokes

The popular Pillar PSR AERO 1423 spokes are used.

Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%.

Perfect aero shape, high elasticity and low drag coefficient.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
