• Professional Racing Tubular Wheelset
• 28mm/25mm Width Carbon Rims Optional
• DT Swiss 180 EXP Disc Brake Hubs, High End
• Shimano 11/12s or Sram 12s XDR freehub optional
• Sapim CX-Ray spokes, super aero and light
Brand:
PROXItem NO.:
180DB Tubular WheelPayment:
Paypal, Bank TransferColor:
UD/3K/12K(Customized Decal Acceptable)

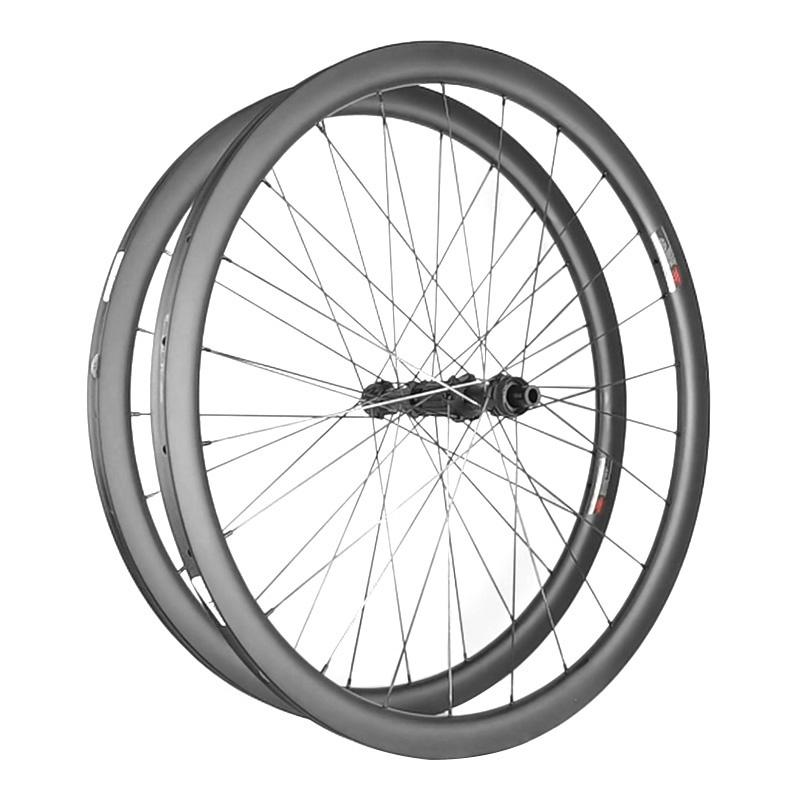

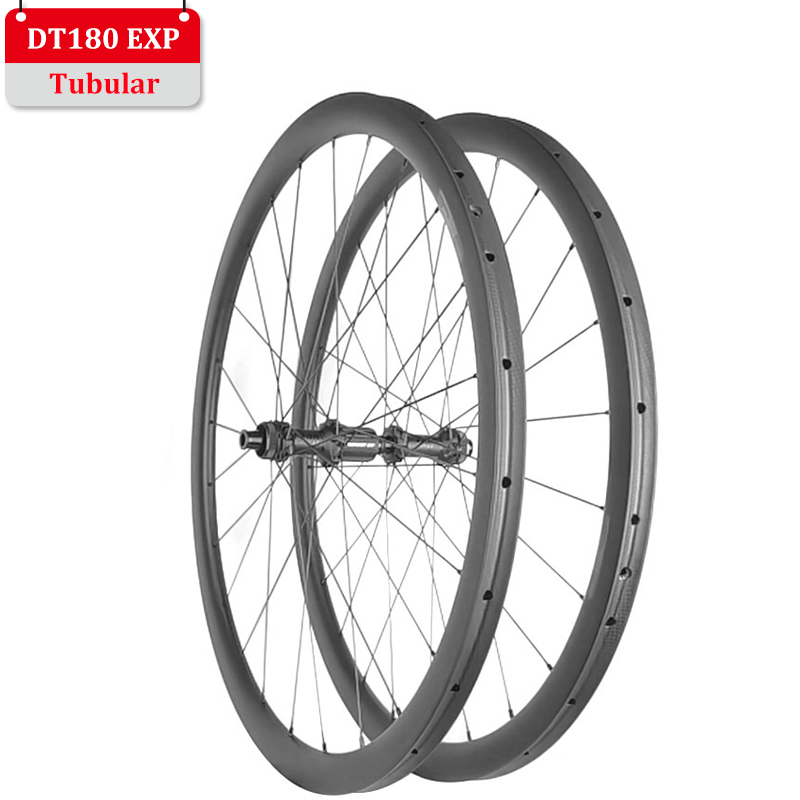

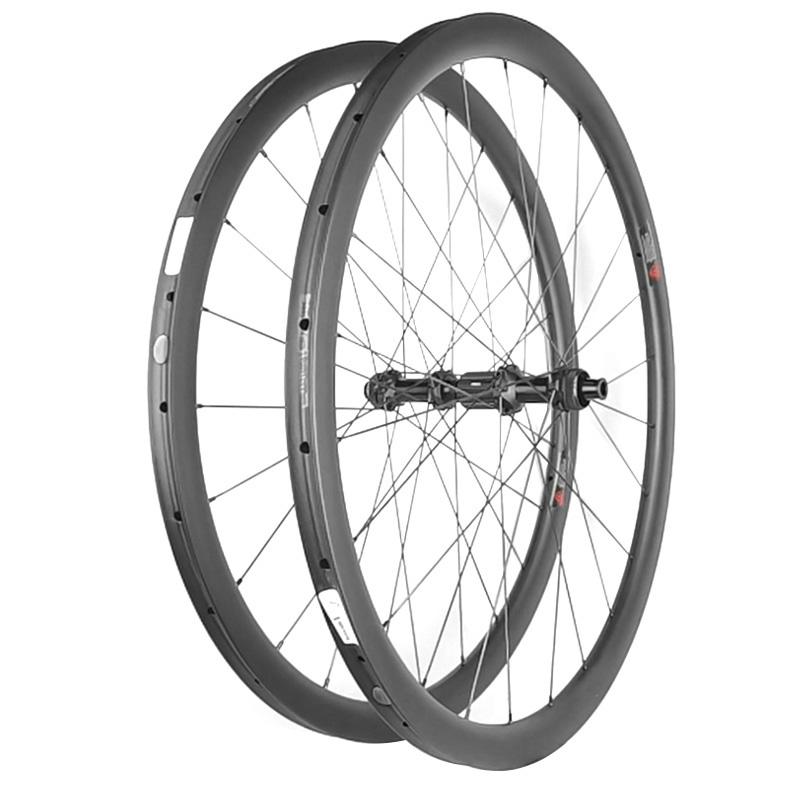

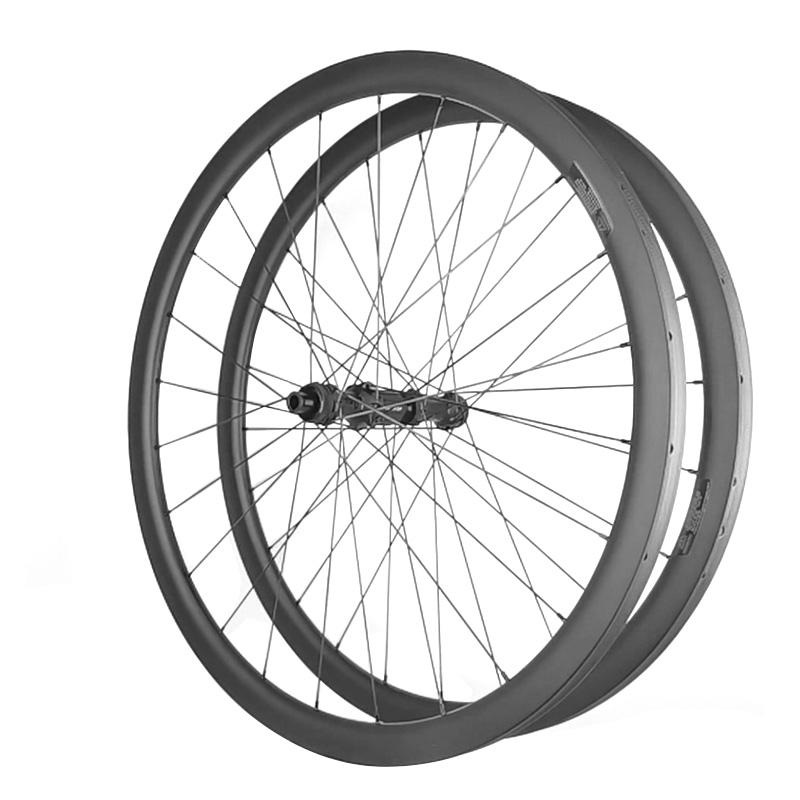

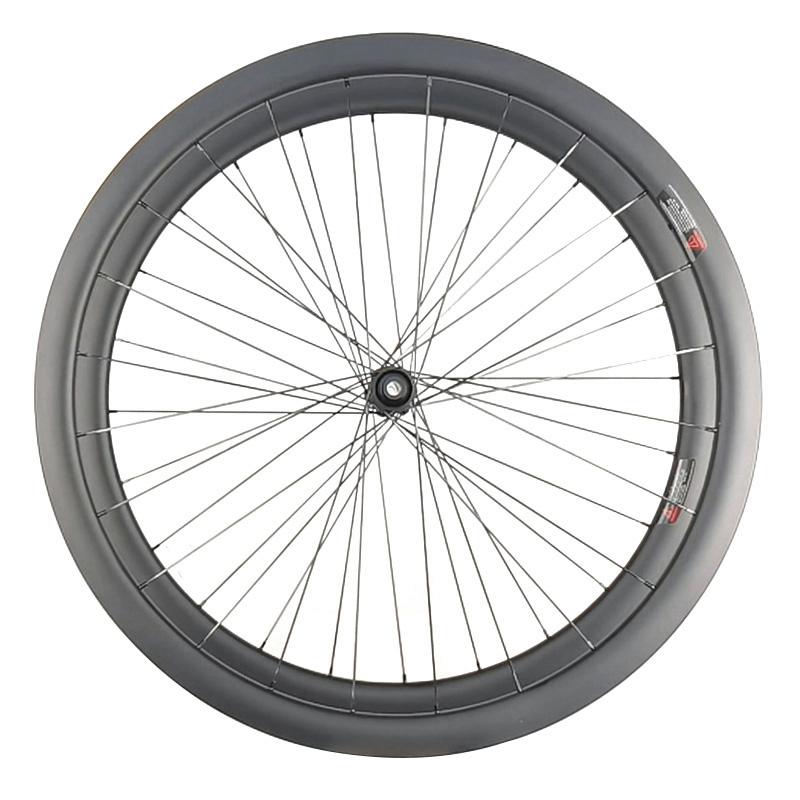

ProX DT180 EXP Disc Brake Road Wheels - Best Lightweight Tubular Wheels for Racing
Equipped with upgraded Ratchet EXP technology, the newest DT Swiss 180 road hub is ultimate in precision, lightness and stiffness. The refined end-caps are simplified for tool-free disassembly. What's more, powered by premium ceramic bearings, the rolling resistance is minimized, which enables you to ride faster with less effort. Carbon wheels built with DT180 hubs are ideal for professional racing.
ProX provides two width option for our DT180 disc brake carbon road tubular wheels. That is, 28mm width carbon tubular rims, and 25mm width carbon rims tubular.
Both our 28mm and 25mm disc brake tubular carbon rims are made of Toray T700+T800 carbon fiber, with SL (super light) weight.
The 28mm width disc brake rim series (model PRD28-T) is compatible for 700*25C-35C tubular tire, with height 22/33/38/44/50/55mm optional.
The 25mm width disc brake rim series (model PRD25-T) is compatible for 700*23C-33C tubular tire, with height 38/45/50/60/80mm optional.
With so many options available, you can always choose the one with width and height you prefer.
ProX Best DT180 Carbon Disc Tubular Wheelset Specification:
-Hub:DT180 Road disc EXP ratchet(front 12*100mm TA/rear 12*142mm TA)
-Disc brake type: center lock
-Rear Cassette Body: Shimano 11/12s or Sram 12s XDR optional
-Freehub System: Ratchet EXP 36
-Type: straight pull
-Spoke Hole Count: front 24H/rear 24H
-Tire Type: Tubular
-Spoke: Sapim CX-Ray
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years
DT180 Disc Brake Carbon Road Tubular Lightweight Wheelset(28mm width)
Model
Rim
Depth
Outer Width
Tire Type
Hub
Front Size
Rear Size
Spoke
180DB-PRD28-22T-Ray
PRD28-22T-SL
22mm
28mm
Tubular
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*25C-35C
1122g
180DB-PRD28-33T-Ray
PRD28-33T-SL
33mm
28mm
Tubular
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*25C-35C
1162g
180DB-PRD28-38T-Ray
PRD28-38T-SL
38mm
28mm
Tubular
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*25C-35C
1182g
180DB-PRD28-44T-Ray
PRD28-44T-SL
44mm
28mm
Tubular
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*25C-35C
1202g
180DB-PRD28-50T-Ray
PRD28-50T-SL
50mm
28mm
Tubular
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*25C-35C
1242g
180DB-PRD28-55T-Ray
PRD28-55T-SL
55mm
28mm
Tubular
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*25C-35C
1282g
700C Tubular Road Disc Brake Carbon Bicycle Rims (28mm width)
Rims | PRD28-22T-SL | PRD28-33T-SL | PRD28-38T-SL | PRD28-44T-SL | PRD28-50T-SL | PRD28-55T-SL |
Max Weight Limit | 90kg/198lb | 105kg/230lb | 105kg/230lb | 110kg/240lb | 115kg/250lb | 115kg/250lb |
Material | T700+T800 | T700+T800 | T700+T800 | T700+T800 | T700+T800 | T700+T800 |
Sectional Drawing |
DT180 Disc Brake Carbon Road Tubular Lightweight Wheelset(25mm width)
Model | Rim | Depth | Outer Width | Tire Type | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|
180DB-PRD25-38T-Ray | PRD25-38T-SL | 38mm | 25mm | Tubular | DT180 Road disc | 12*100mm | 12*142mm | Sapim CX-Ray | 700*23C-33C | 1162g |
180DB-PRD25-45T-Ray | PRD25-45T-SL | 45mm | 25mm | Tubular | DT180 Road disc | 12*100mm | 12*142mm | Sapim CX-Ray | 700*23C-33C | 1182g |
180DB-PRD25-50T-Ray | PRD25-50T-SL | 50mm | 25mm | Tubular | DT180 Road disc | 12*100mm | 12*142mm | Sapim CX-Ray | 700*23C-33C | 1222g |
180DB-PRD25-60T-Ray | PRD25-60T-SL | 60mm | 25mm | Tubular | DT180 Road disc | 12*100mm | 12*142mm | Sapim CX-Ray | 700*23C-33C | 1382g |
180DB-PRD25-80T-Ray | PRD25-80T-SL | 80mm | 25mm | Tubular | DT180 Road disc | 12*100mm | 12*142mm | Sapim CX-Ray | 700*23C-33C | 1582g |
700C Tubular Road Disc Brake Carbon Bicycle Rims (25mm width)
Rims
PRD25-38T-SL
PRD25-45T-SL
PRD25-50T-SL
PRD25-60T-SL
PRD25-80T-SL
Max Weight Limit
105kg/230lb
105kg/230lb
110kg/240lb
115kg/250lb
115kg/250lb
Material
T700+T800
T700+T800
T700+T800
T700+T800
T700+T800
Sectional Drawing
|
Carbon Fiber Material Premium Toray T700 + T800 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight carbon tubular rims.
|
|
Light Weight By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness. |
|
Aero U Shape Wide U Shape carbon road rims are more aerodynamic than traditional V Shape carbon rims road bike. It is also of better stiffness and strength. |
|
Road Disc Brake Road disc brake provides more sensitive and precise braking performance than rim brake. Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking. Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight. |
|
Hand Built All our carbon bicycle wheels are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
|
DT180 Road Hubs
Best DT Swiss 180 EXP road disc brake hubs, ultimate in lightweight, stiffness and performance. Best carbon disc wheelset for pro racing. Ratchet EXP 36 freehub system, plus ceramic bearings for super smoothness and reliability. 12*100/12*142 thru-axle, with Shimano 11-speed, Sram 12-speed XDR freehub optional.
|
|
Sapim Spokes
High end Sapim CX-Ray spokes, one of the best spokes available in the market. Sapim CX-Ray spoke is the best combination of light weight, strength, flexibility, and it results in best fatigue testing. It is widely used in many carbon road wheelset of those top brands all over the world.
|
|
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page. |
