Spoke Tension Test for ProX Carbon Rims

Spoke hole is where the spoke nipple is seated and helps the spoke fixed on the hub. It usually requires the additional carbon fiber reinforcement because it bears the amount of tensions. Without a doubt, poorly quality rim is likely to crack due to great spoke tension which will ruin the whole bicycle rim.

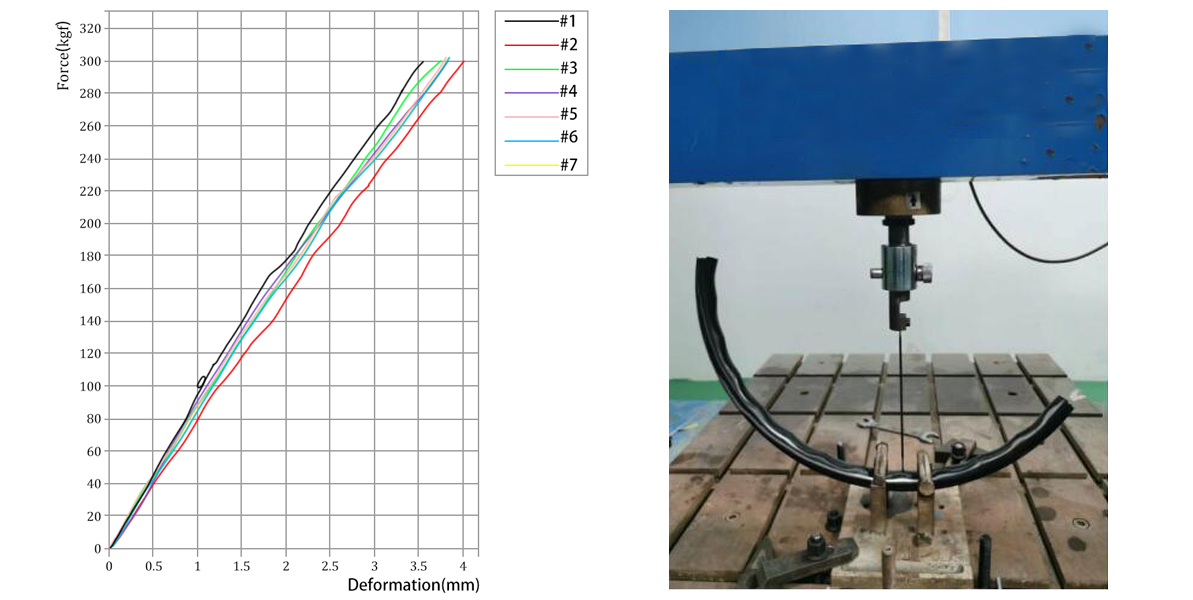

  • Test Condition: Apply 300kgf force, test 7 spoke holes.
  • Test Position: Valve hole position, the other 6 spoke holes.
  • Test Standard: Apply 300kgf force, should be no crack around holes or spoke pull-through
  • Test Result: Apply 300kgf force, no crack around spoke holes or spoke pull-through

Sample Rim

Model Inner/Outer Width Depth Weight Max Spoke Tension
UAD935GP-XC 30mm/35mm 22-25mm 320g 300kgf


Test Results

Position No. Max Spoke Tension Condition
1# 300kgf
2# 300kgf
3# 300kgf
4# 300kgf
5# 300kgf
6# 300kgf
7# 300kgf

Spoke Tension Test for ProX Carbon Rims
