Inflation Test for ProX Carbon Rims

Inflation test is very important for carbon clincher rim, which are usually used under high tire pressure. If inflation test passed, the structural strength and reliability of carbon rim is proven, so the possibility of wheel failure is significantly reduced. Inflation test is done on 100% of ProX carbon clincher rims. Any rims do not pass this test (either occur acute noise, bulged or deformation) will be abandoned.


  • Test Condition: Inflate to 140 psi air pressure, test one time.
  • Test Position: Valve hole
  • Test Standard: Inflate to 140psi air pressure.
  • Test Result: Rim parallelism ≤0.25mm with 140psi air pressure. There should be no acute noise, buldge or deformation.


Sample Rim

Model Inner/Outer Width Depth Weight Max Air Pressure
PRD25-38C 18mm/25mm 38mm 387g 140 psi


Test Results

Rim parallelism ≤0.25mm with 140psi air pressure, no acute noise, buldge or deformation.

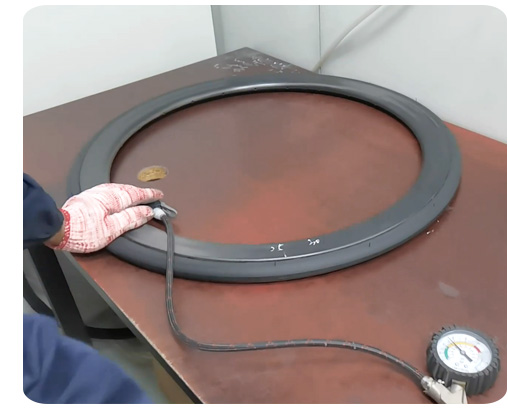

inflation test for ProX carbon rims

ProX Carbon Rim Inflation Test                                                                                                                                        ProX Carbon Rim Flatness <0.3mm
